Pinpoint Tests Diagnosis

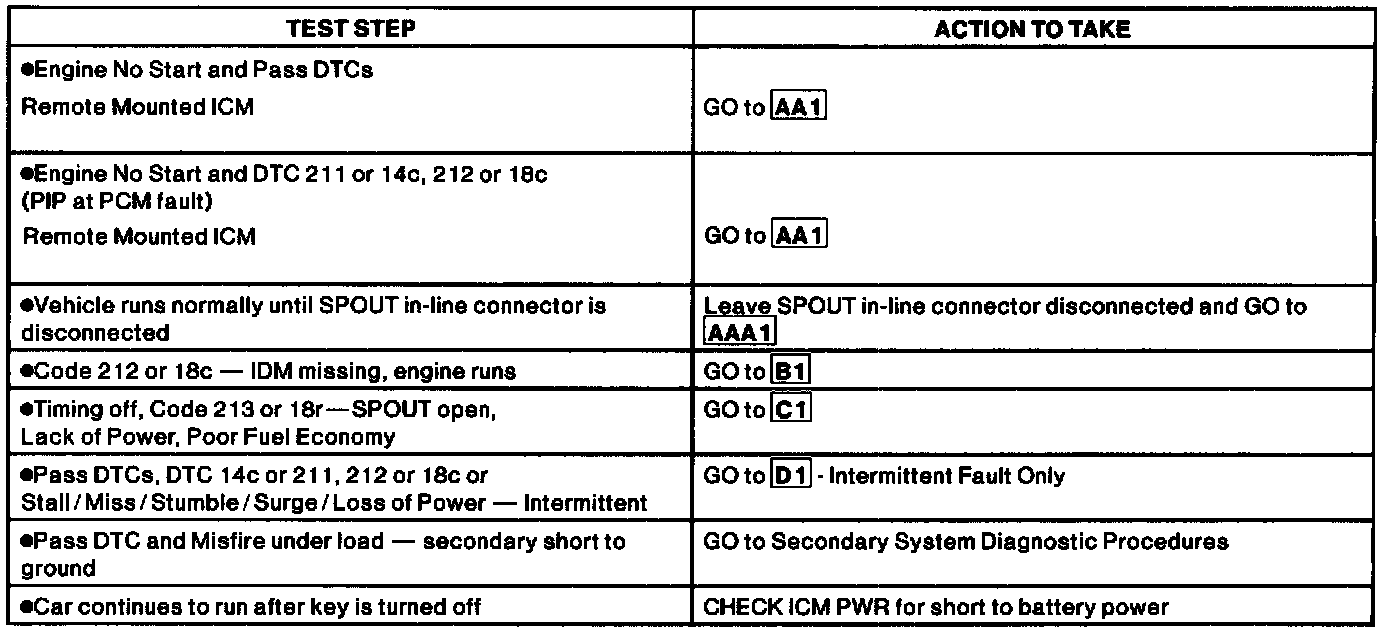

Pinpoint Test Sections AA, AAA, B, and C are written to catch "Hard Faults"; intermittent failures will be difficult or impossible to diagnose using these procedures.






NOTE: If a remote starter is used, the ignition key must be in the ON position during cranking when using the pinpoint diagnostics.

NOTE: Prefix "J" in Test Steps refers to Ignition Breakout Box Jack.
