21 - Overheating, Electric Cooling Fan Non-Operational

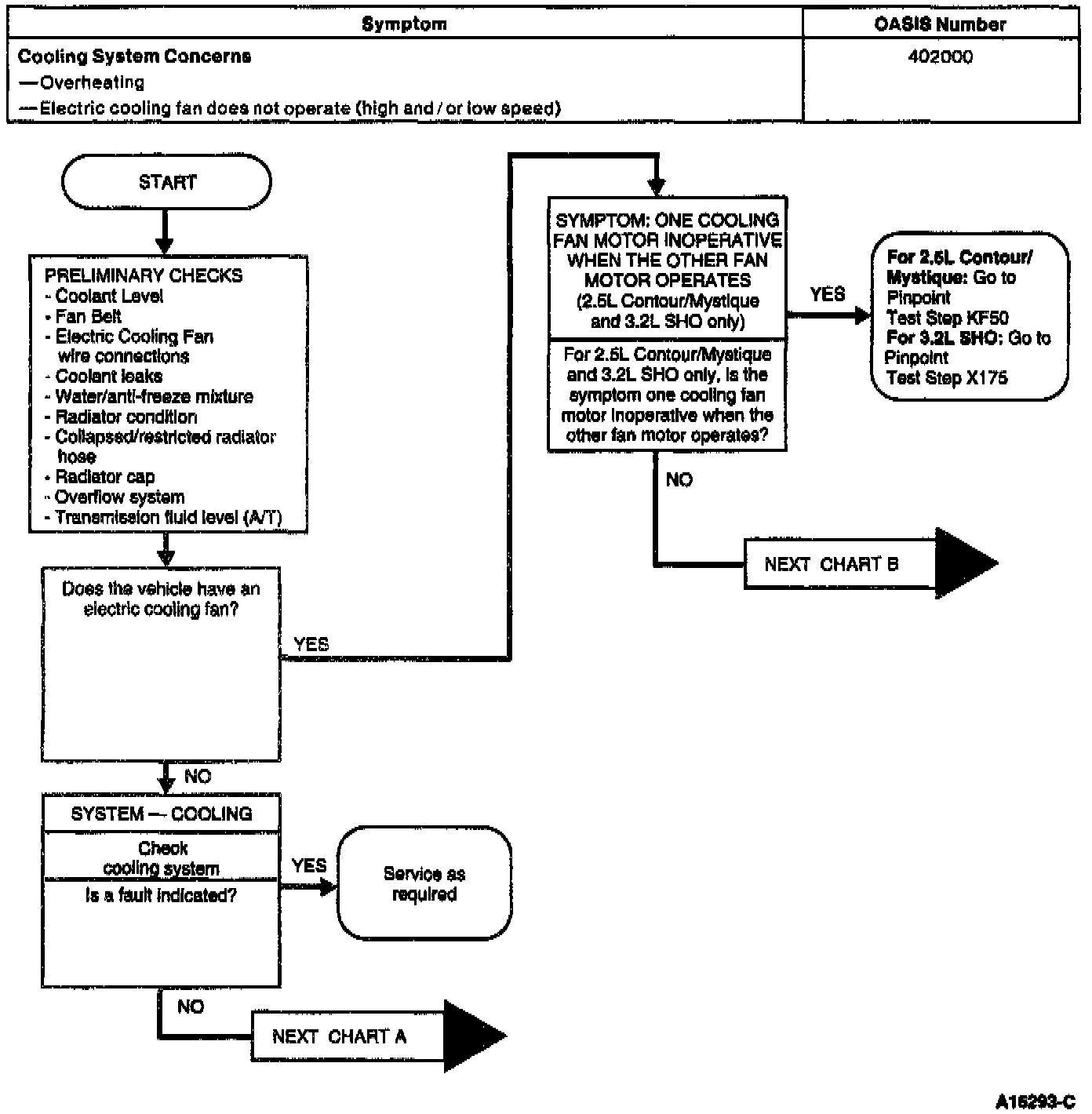

Chart 21 (Page 1 of 5):

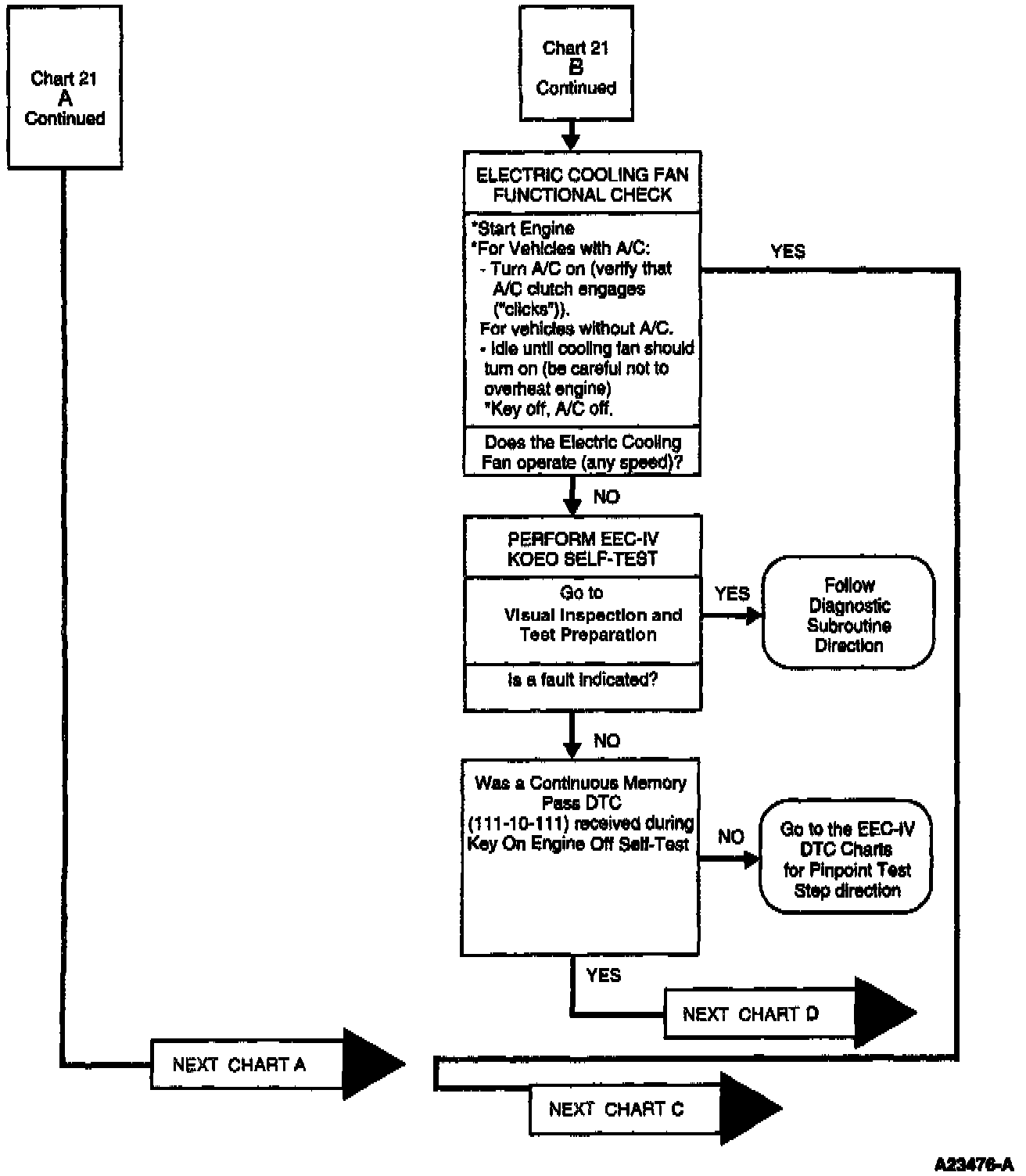

Chart 21 (Page 2 of 5):

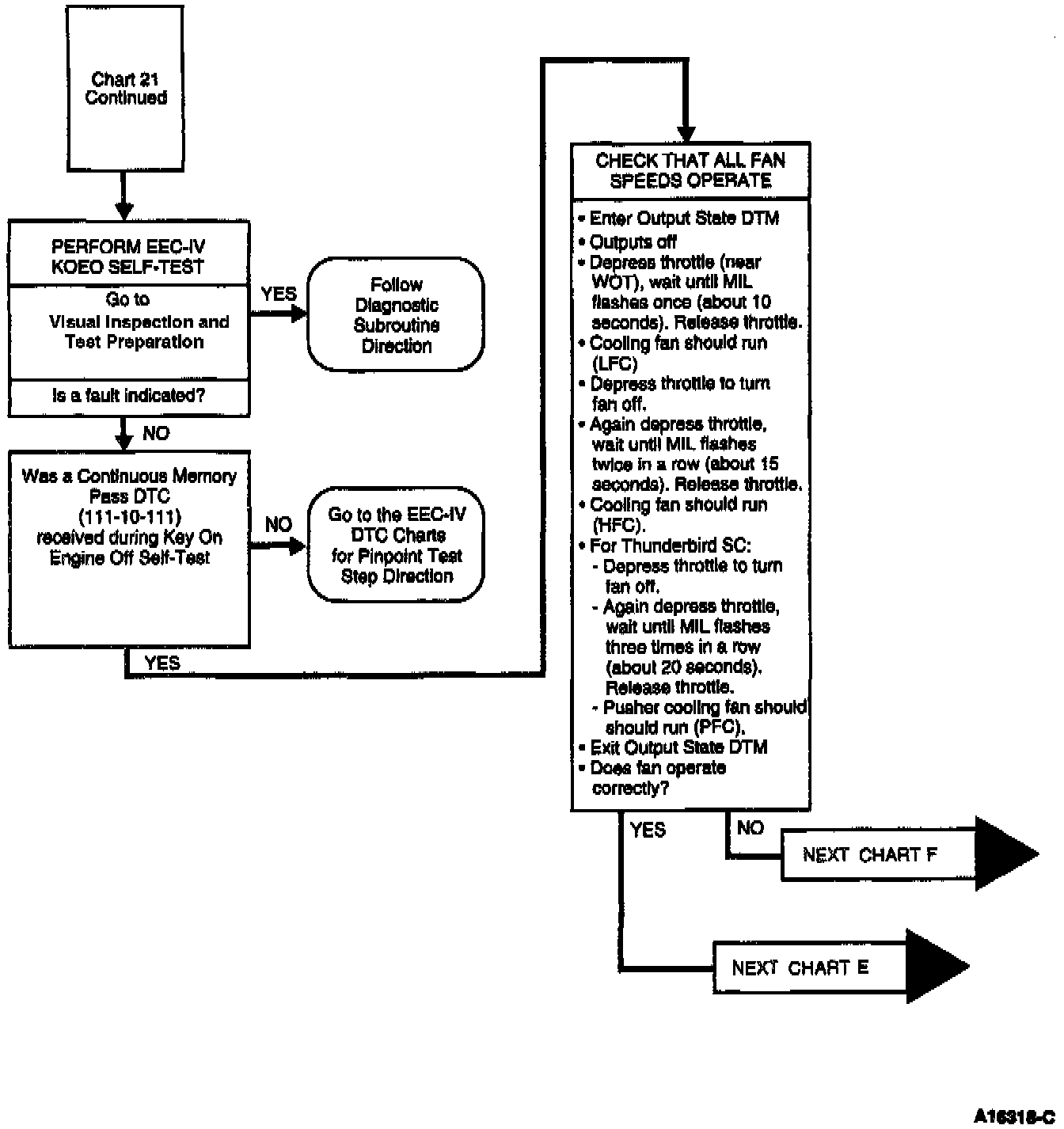

Chart 21 (Page 3 of 5):

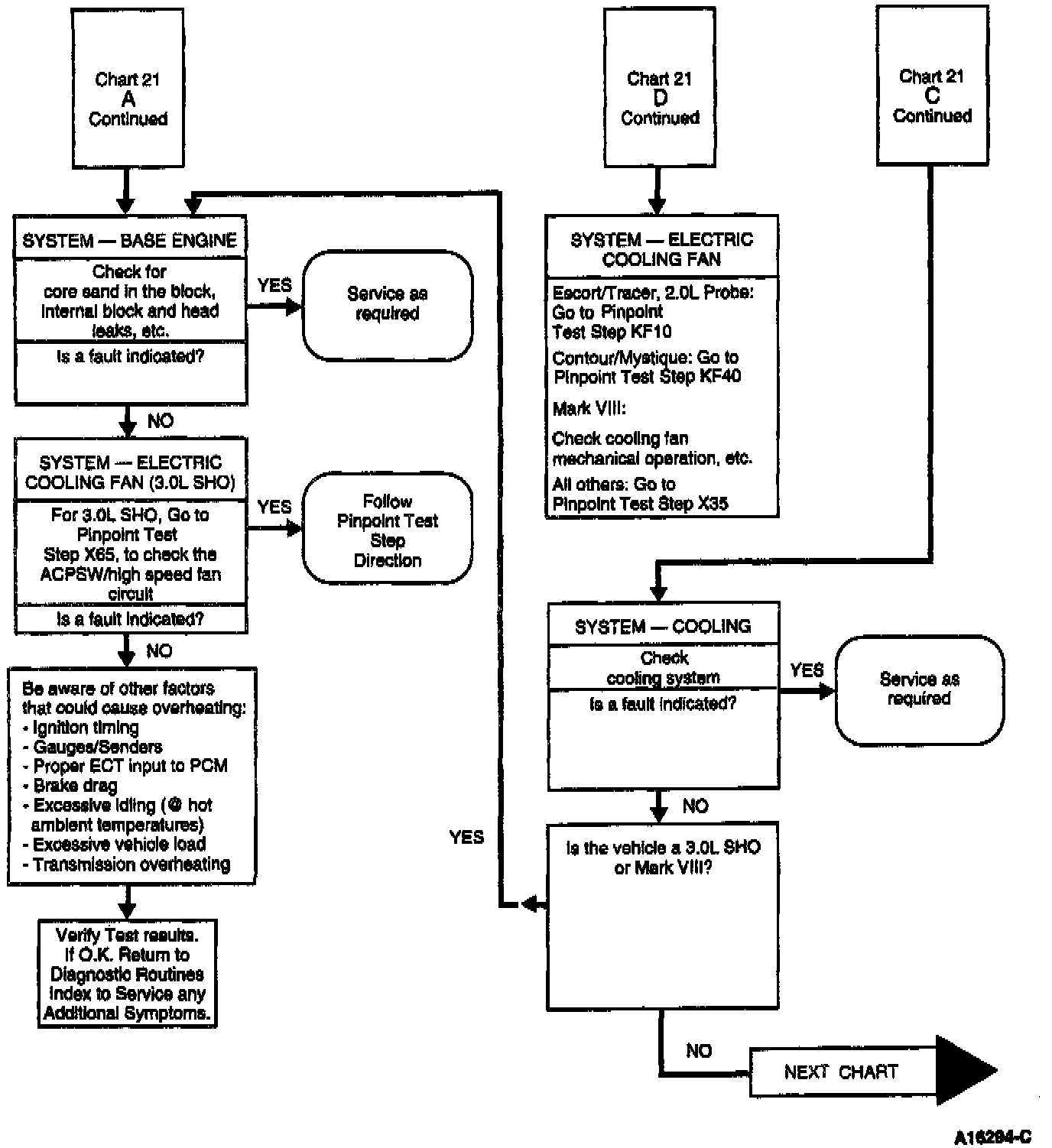

Chart 21 (Page 4 of 5):

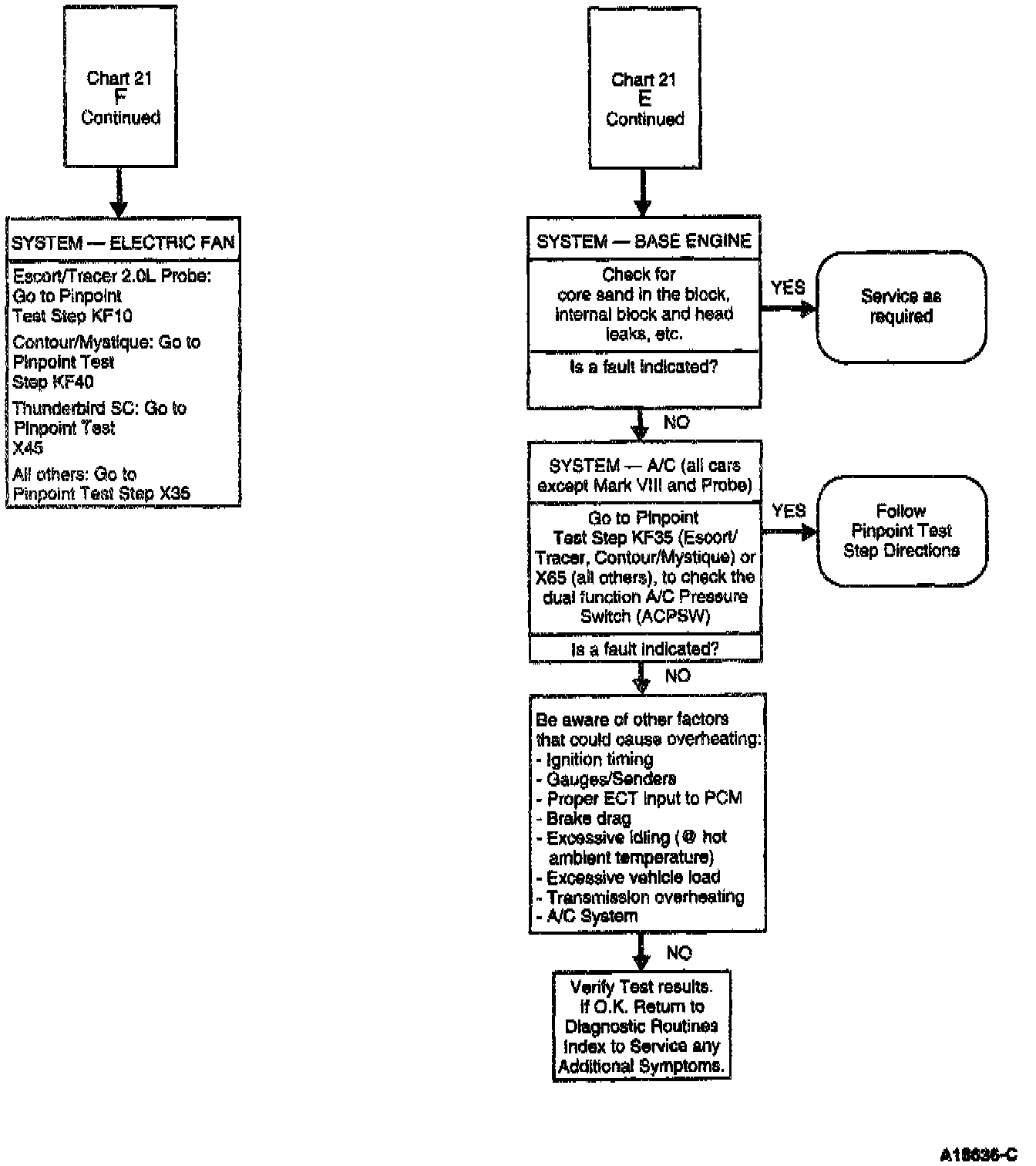

Chart 21 (Page 5 of 5):
