TE - Sensor Data

Sensor Output Graph:






TRANSMISSION FLUID TEMPERATURE SENSOR GRAPH

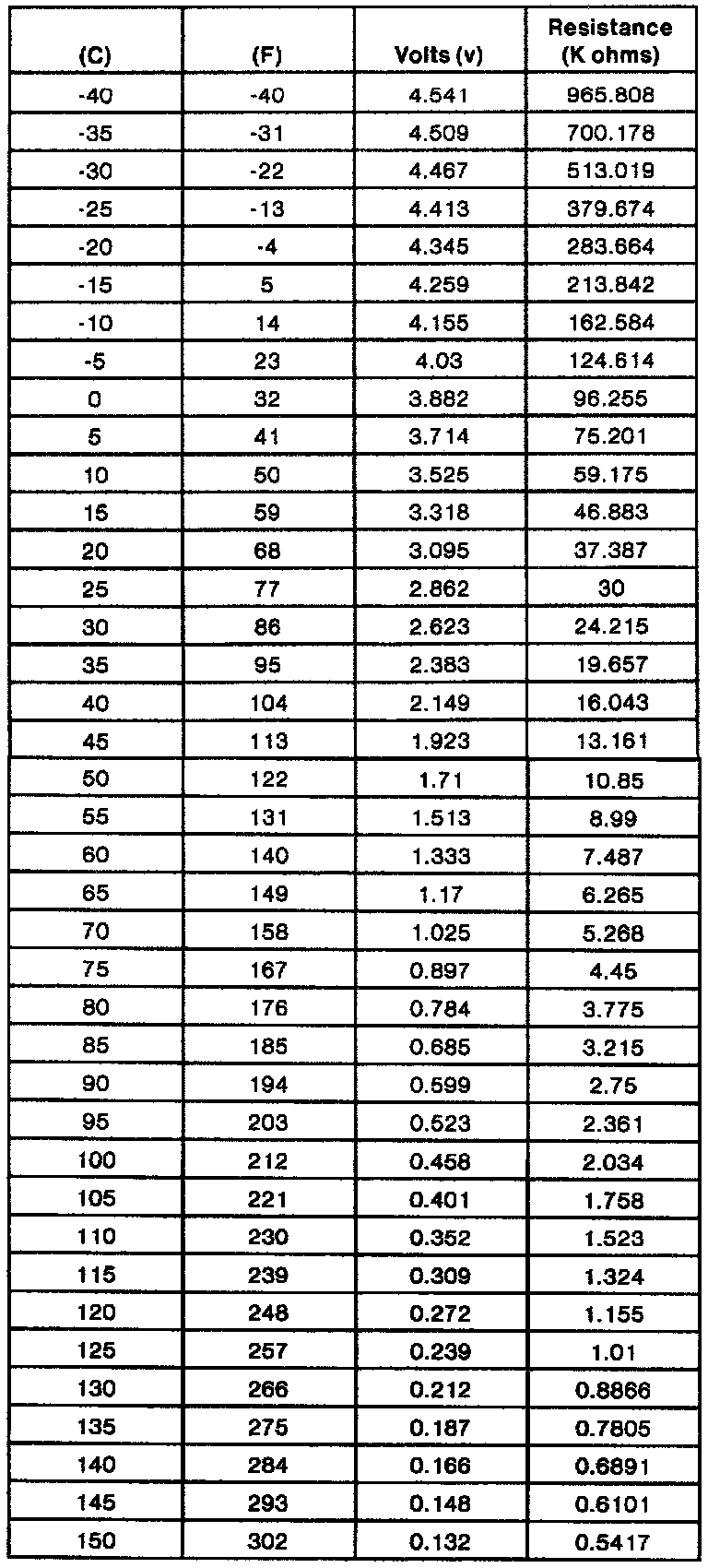

TEMPERATURE/VOLTAGE/RESISTANCE TABLE
