Mercury
>>
1995
>>
Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Underhood View
Underhood View

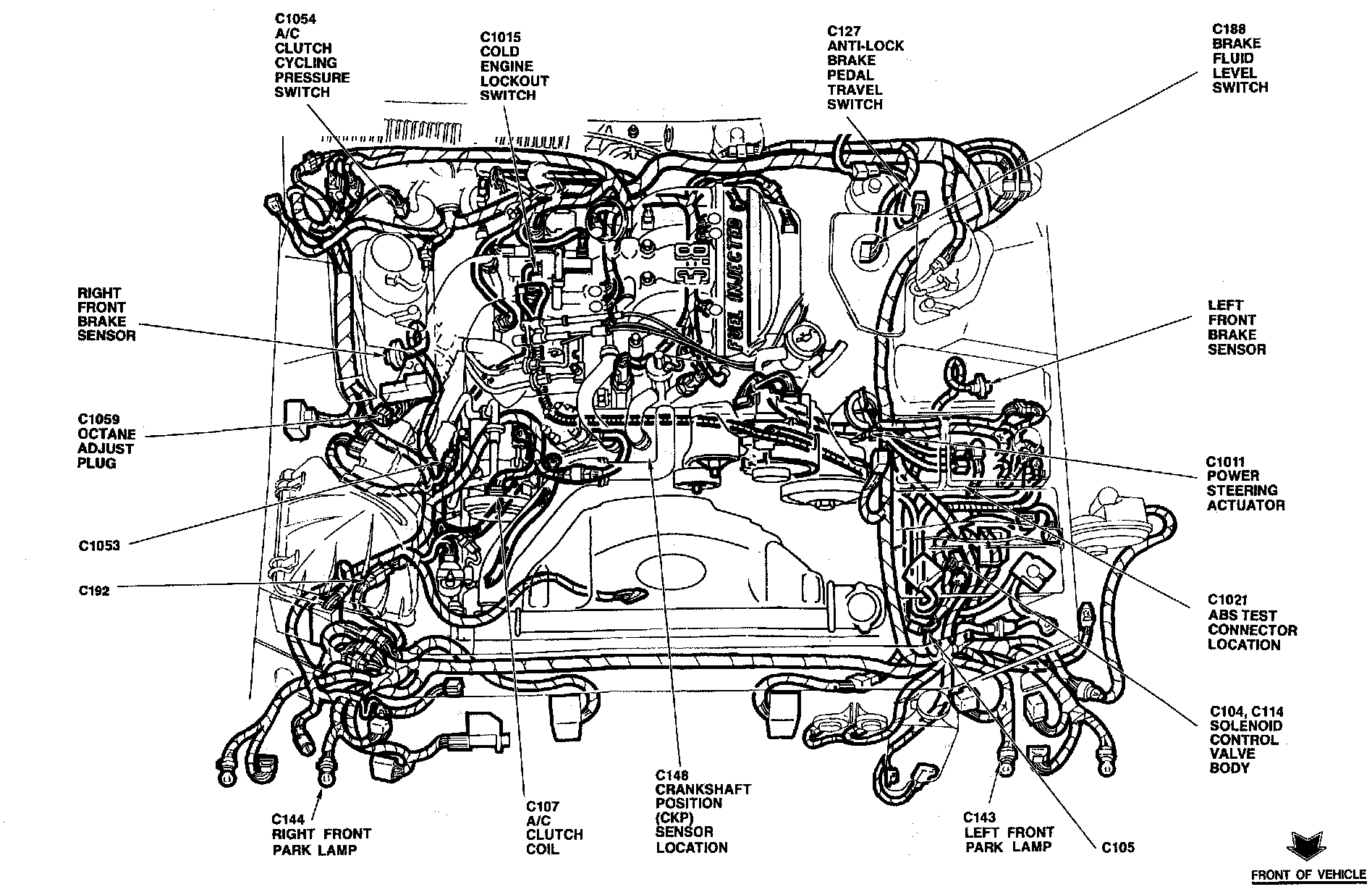

Underhood View:

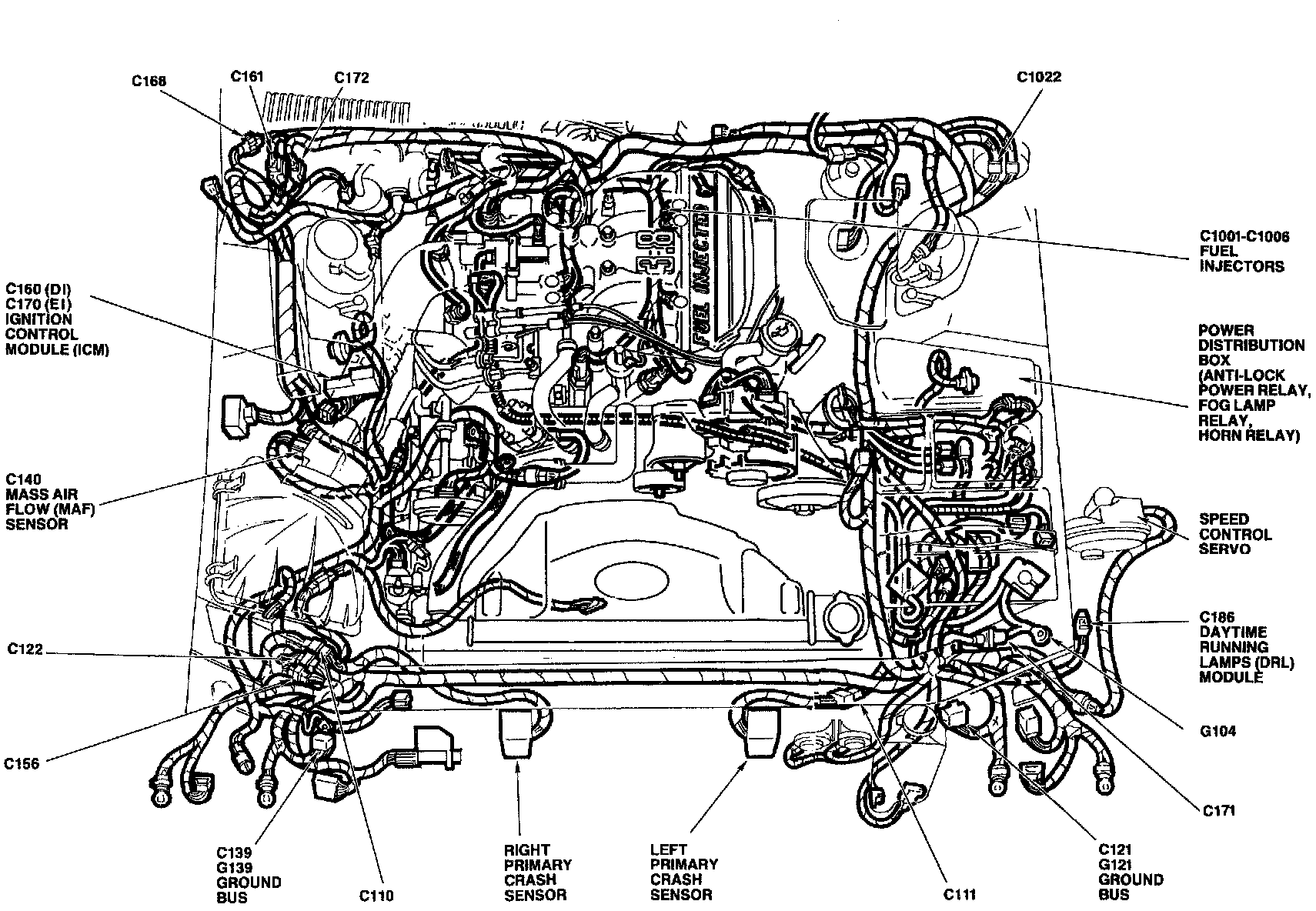

Underhood View:

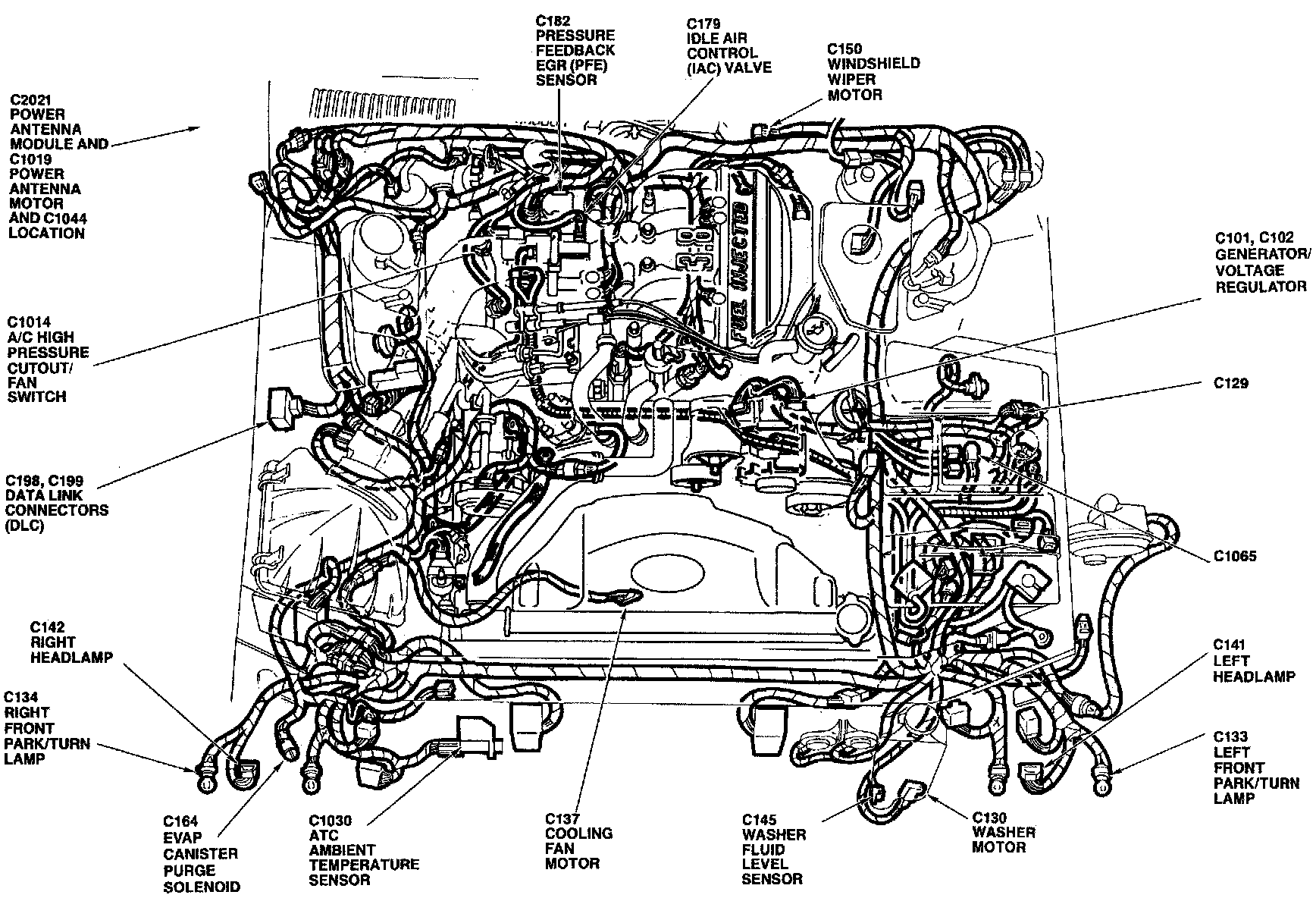

Underhood View:
Underhood View:
