Home >> Mercury >> 1995 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Tachometer >> Testing and Inspection

Tachometer: Testing and Inspection

Test H: Tachometer Reads Inaccurately.:

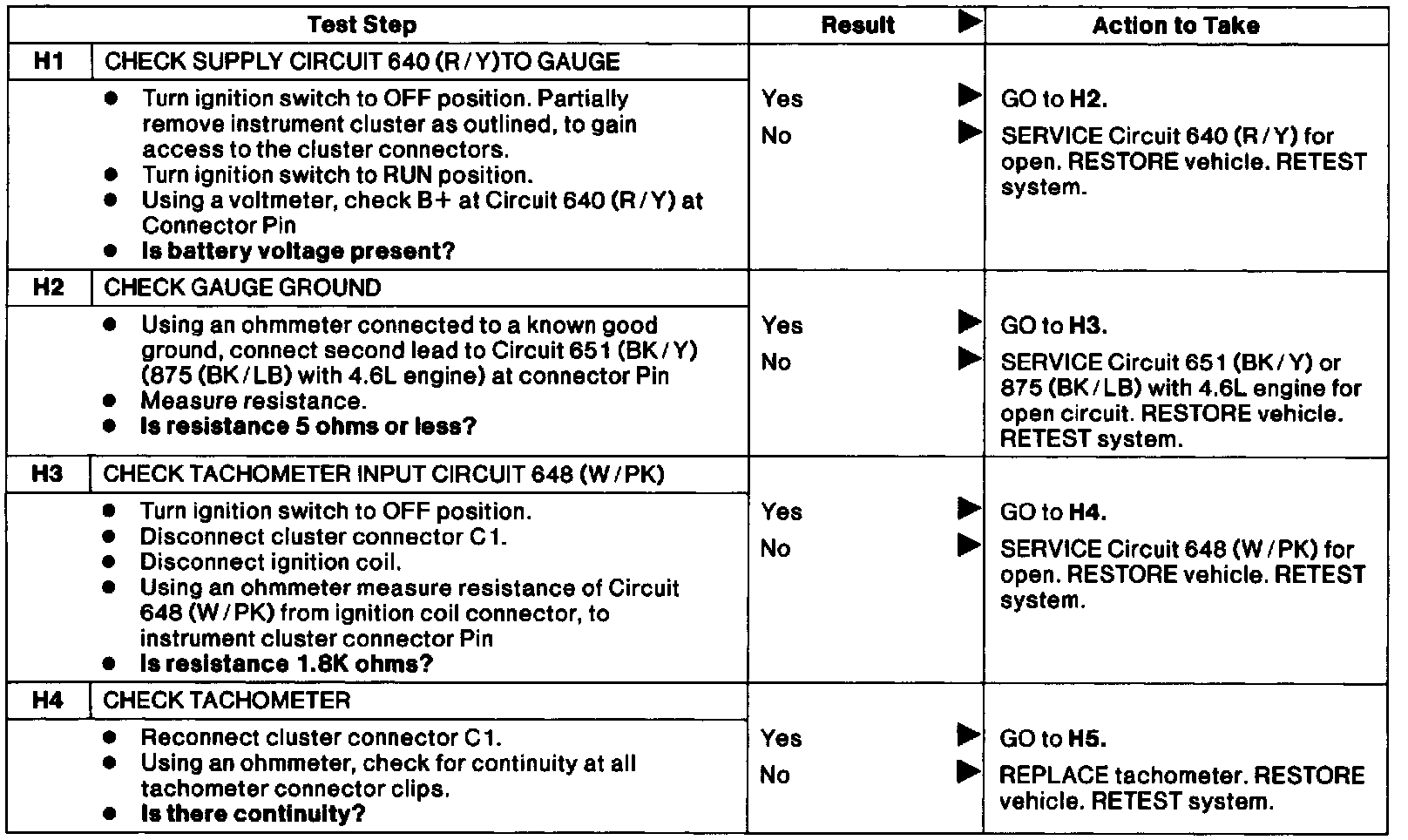

Test H1-H4

Test H: Tachometer Reads Inaccurately.:

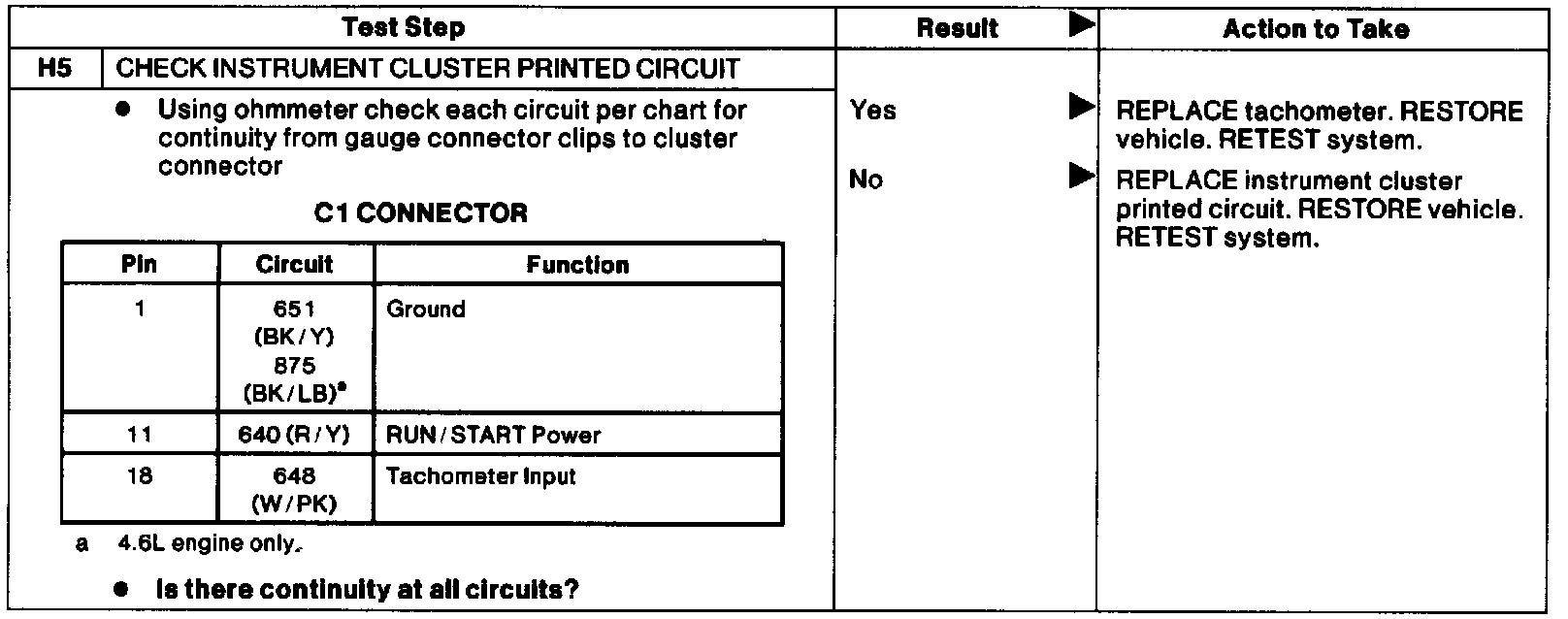

Test H5
