Instrument Panel, Gauges and Warning Indicators
>>
Brake Warning Indicator
>>
Testing and Inspection
Brake Warning Indicator: Testing and Inspection
Test M: Brake Warning Lamp Never/Always ON:

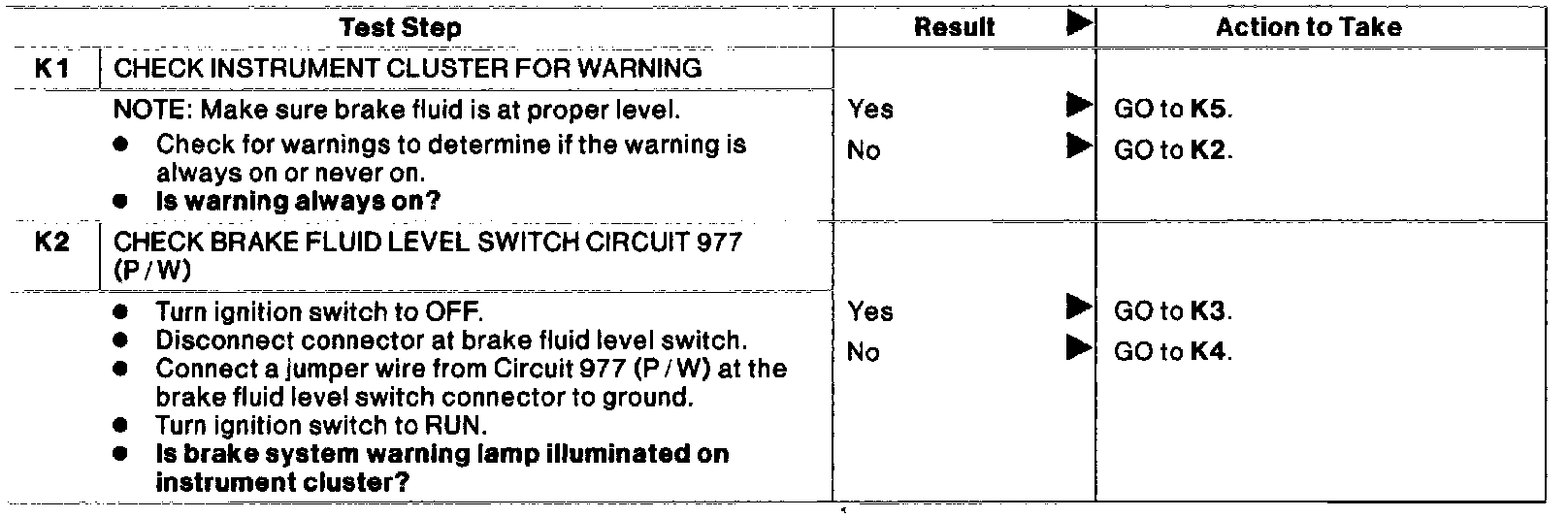

Test K1-K2
Test M: Brake Warning Lamp Never/Always ON:

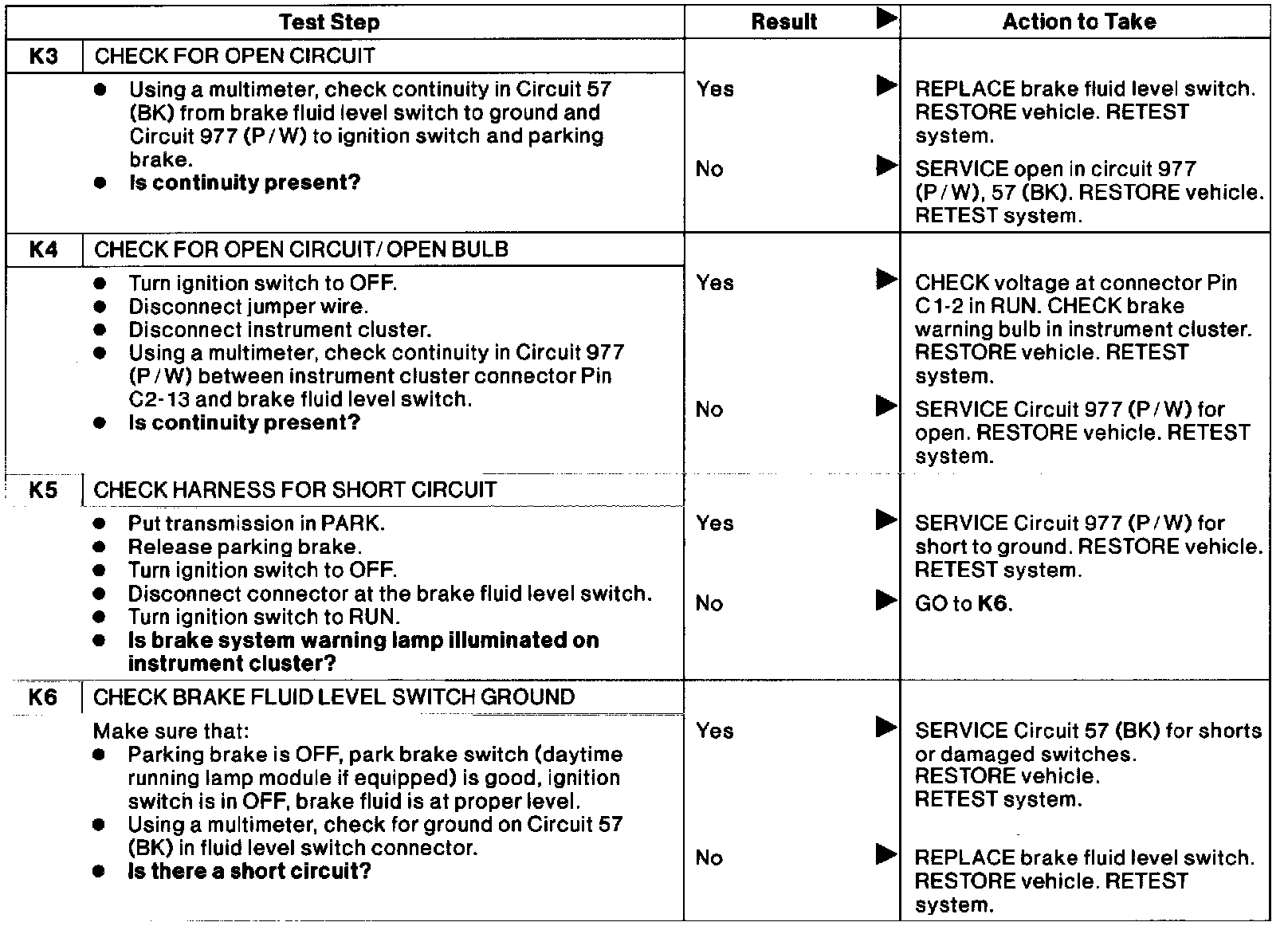

Test K3-K6
