Home >> Mercury >> 1995 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Connector Views >> A/C Electronic Door Actuator Motor Connector >> 2 of 2

2 of 2

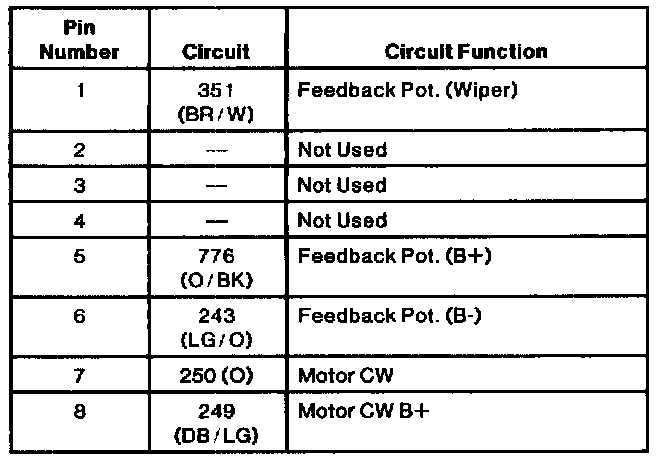

A/C Electronic Door Actuator Motor Connector Terminal ID:
