Oil Pressure Gauge: Testing and Inspection

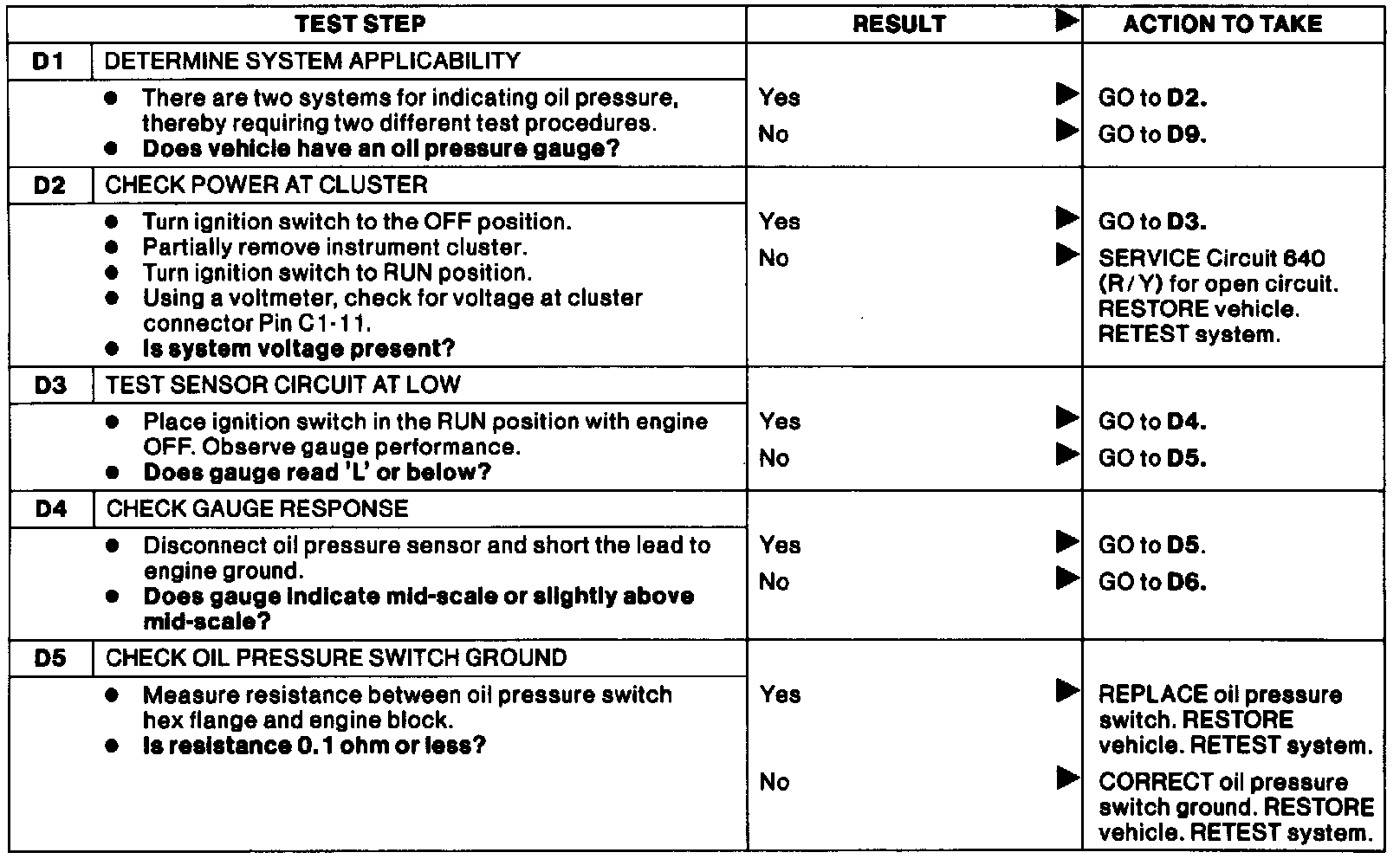

Test D: Oil Pressure Reads Inaccurately.:





Test D1-D5

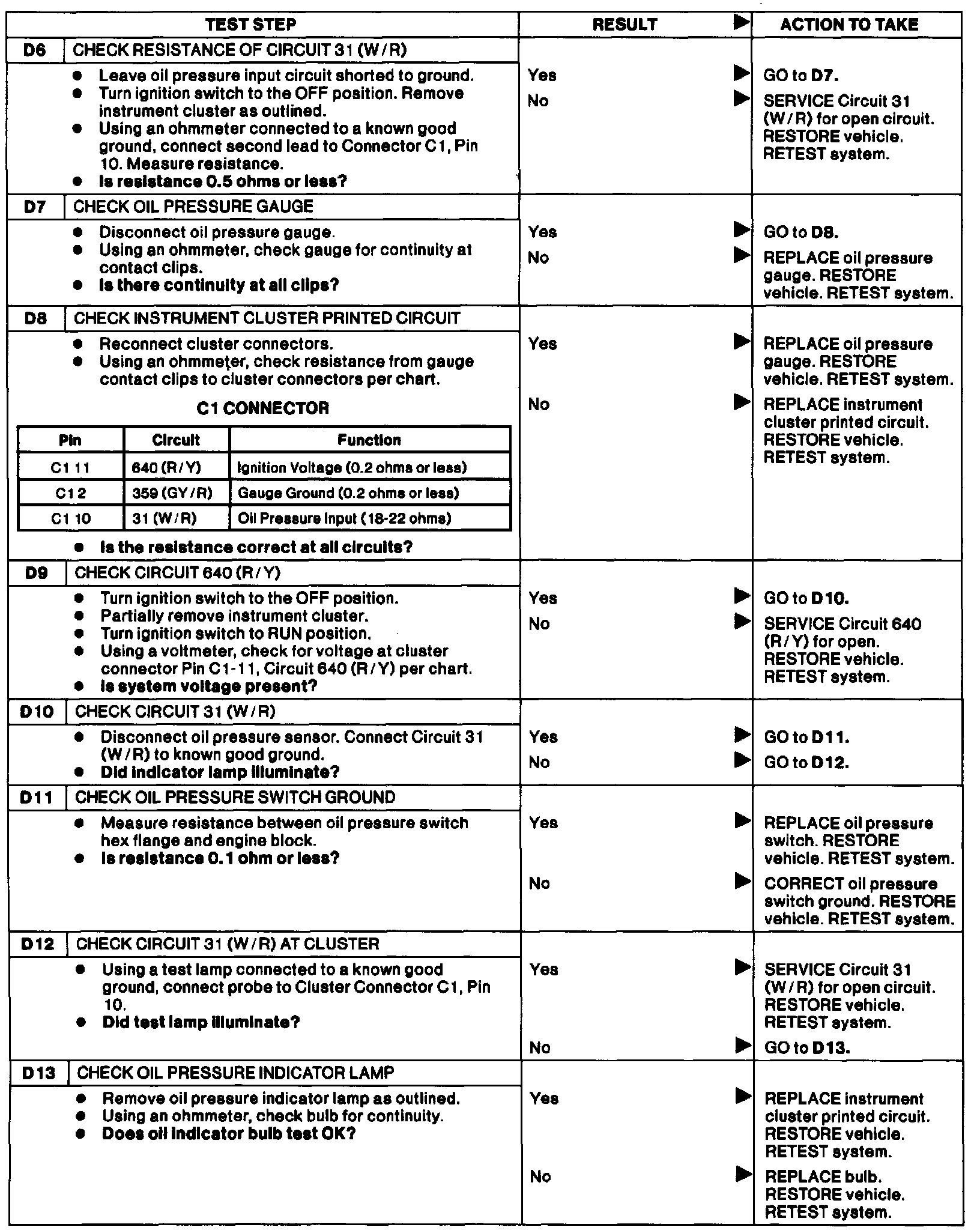

Test D: Oil Pressure Reads Inaccurately.:





Test D6-D13
