Temperature Gauge: Testing and Inspection
Test C: Coolant Temperature Reads Inaccurately.:

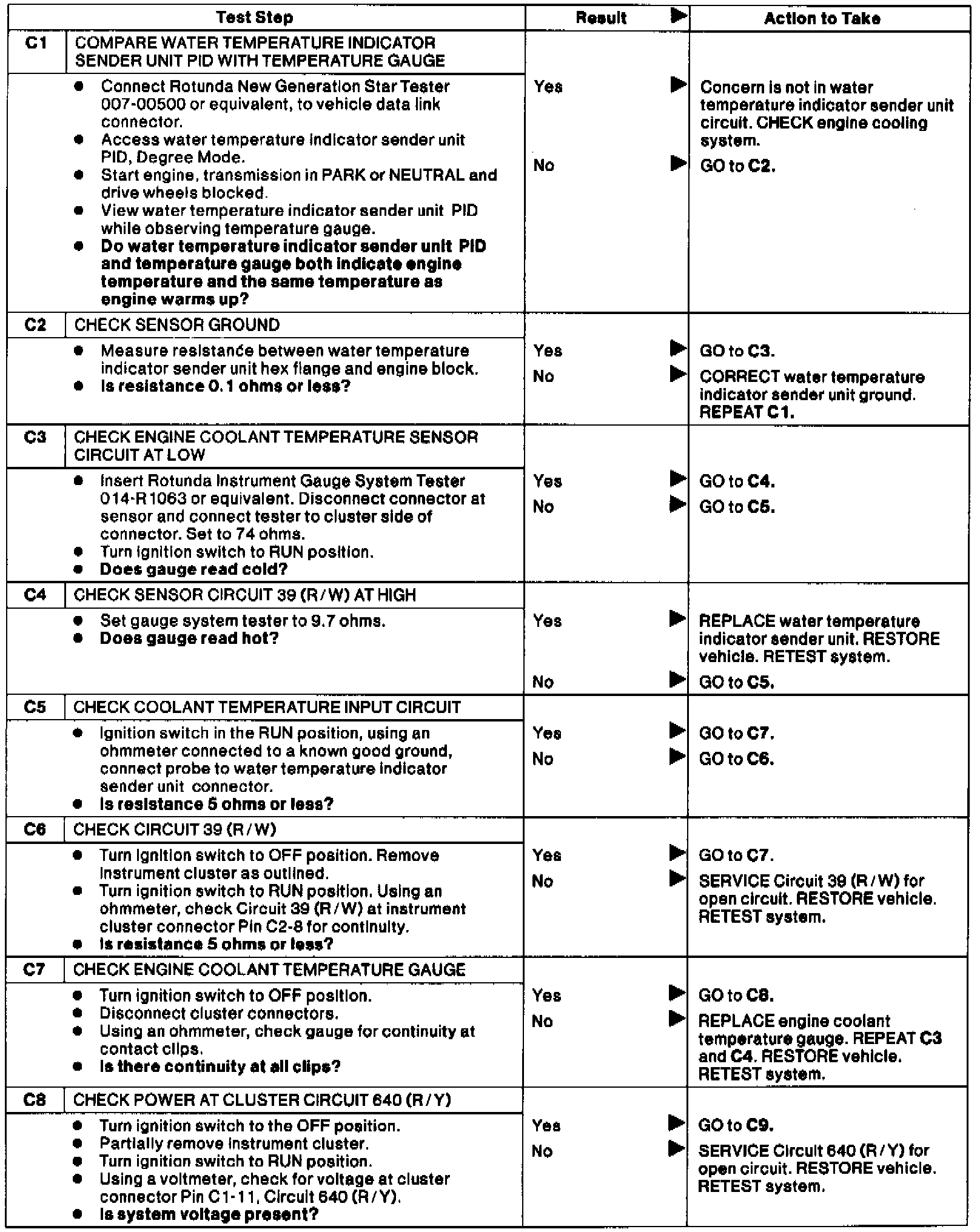

Test C1-C8
Test C: Coolant Temperature Reads Inaccurately.:

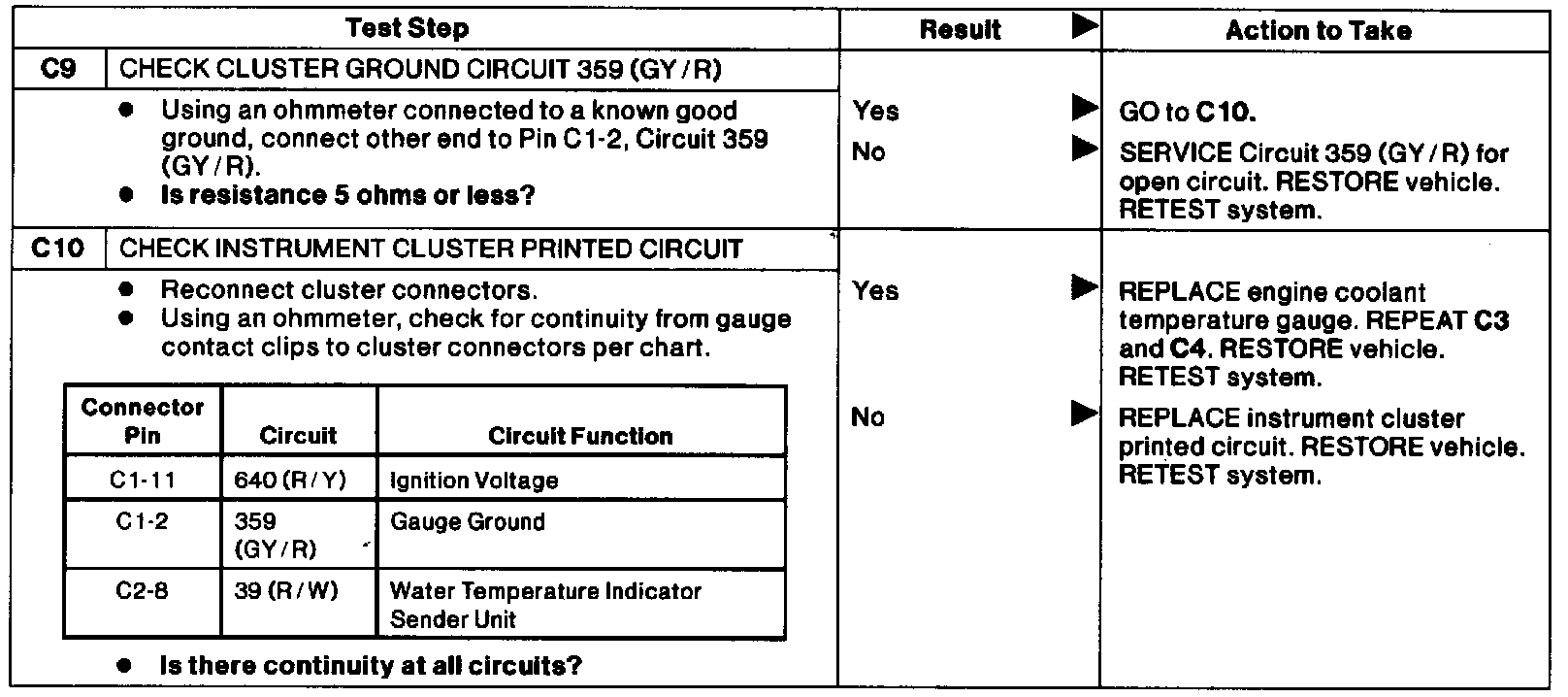

Test C9-C10
