Home >> Mercury >> 1995 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Power Distribution >> Primary Junction Block >> Fuse Circuits >> Fuse WIPERS

Fuse WIPERS

Fuse WIPERS - protects the following circuits:
^ Interval Wiper/Washer

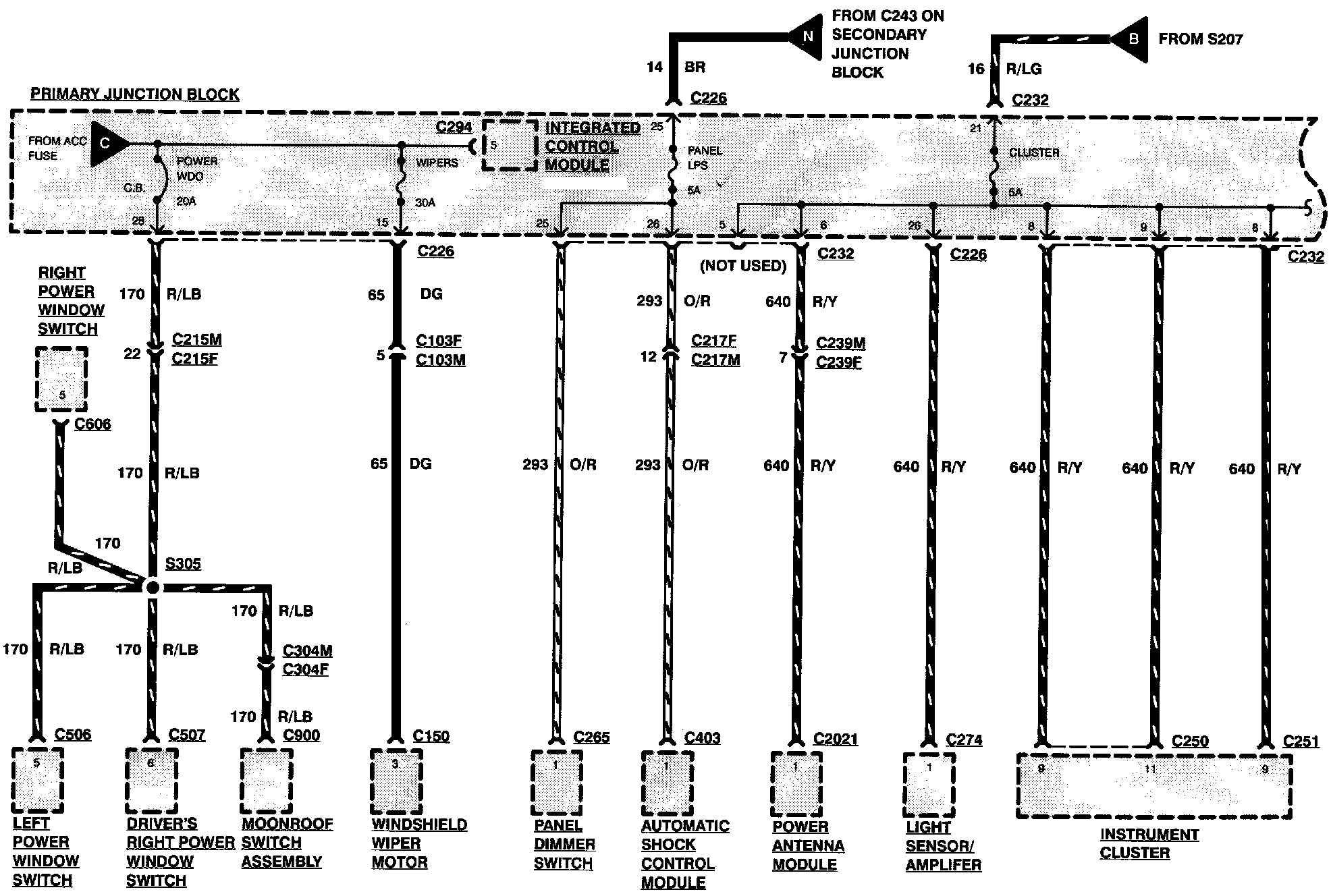

Power Distribution:

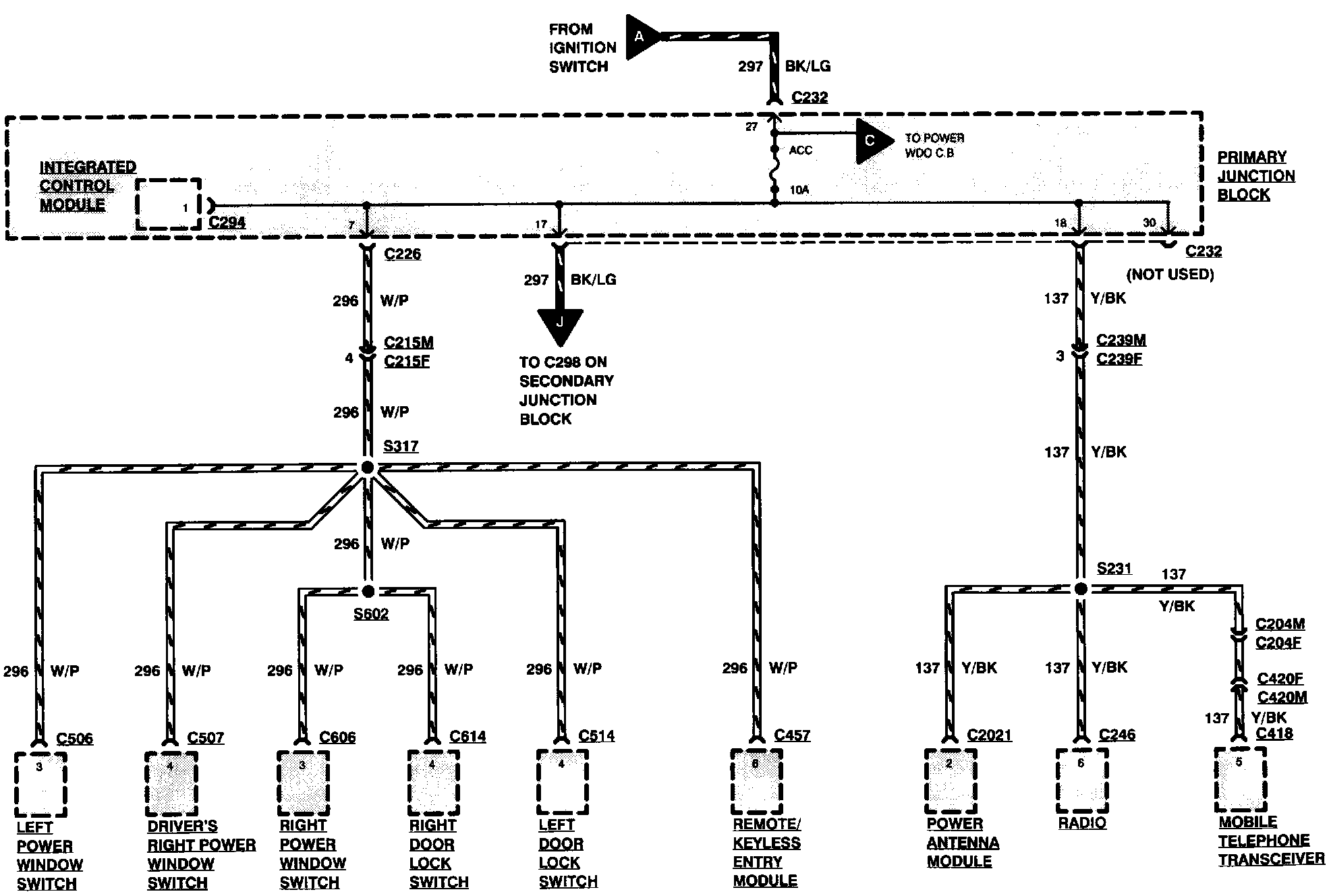

Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:
