Fuse RUN

Fuse RUN - protects the following circuits:
^ Shift Lock
^ Daytime Running Lamps
^ Electronic Variable Orifice
^ Anti-Lock Brake System
^ Air Bag
^ Washer Fluid Level Sensor

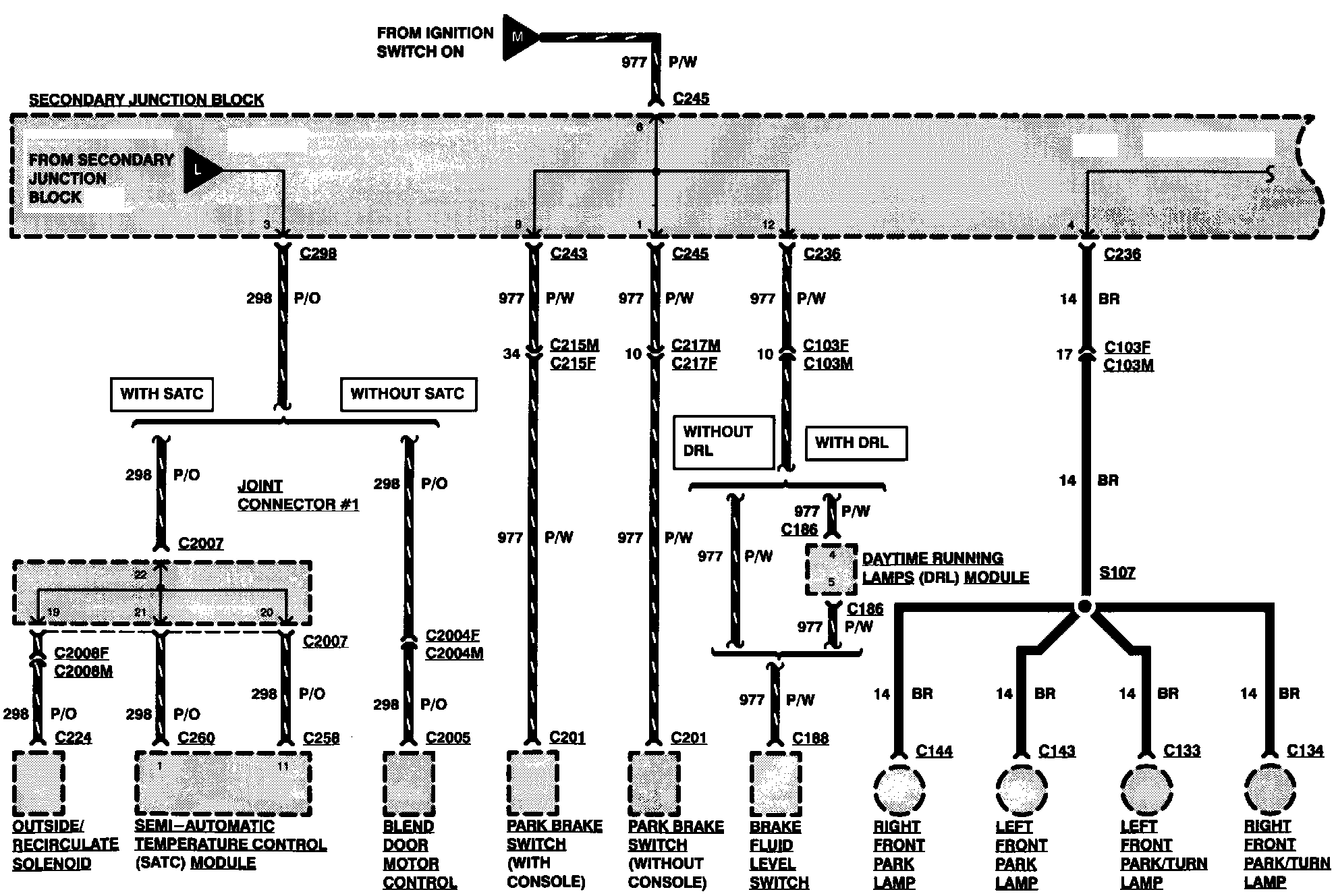

Power Distribution:

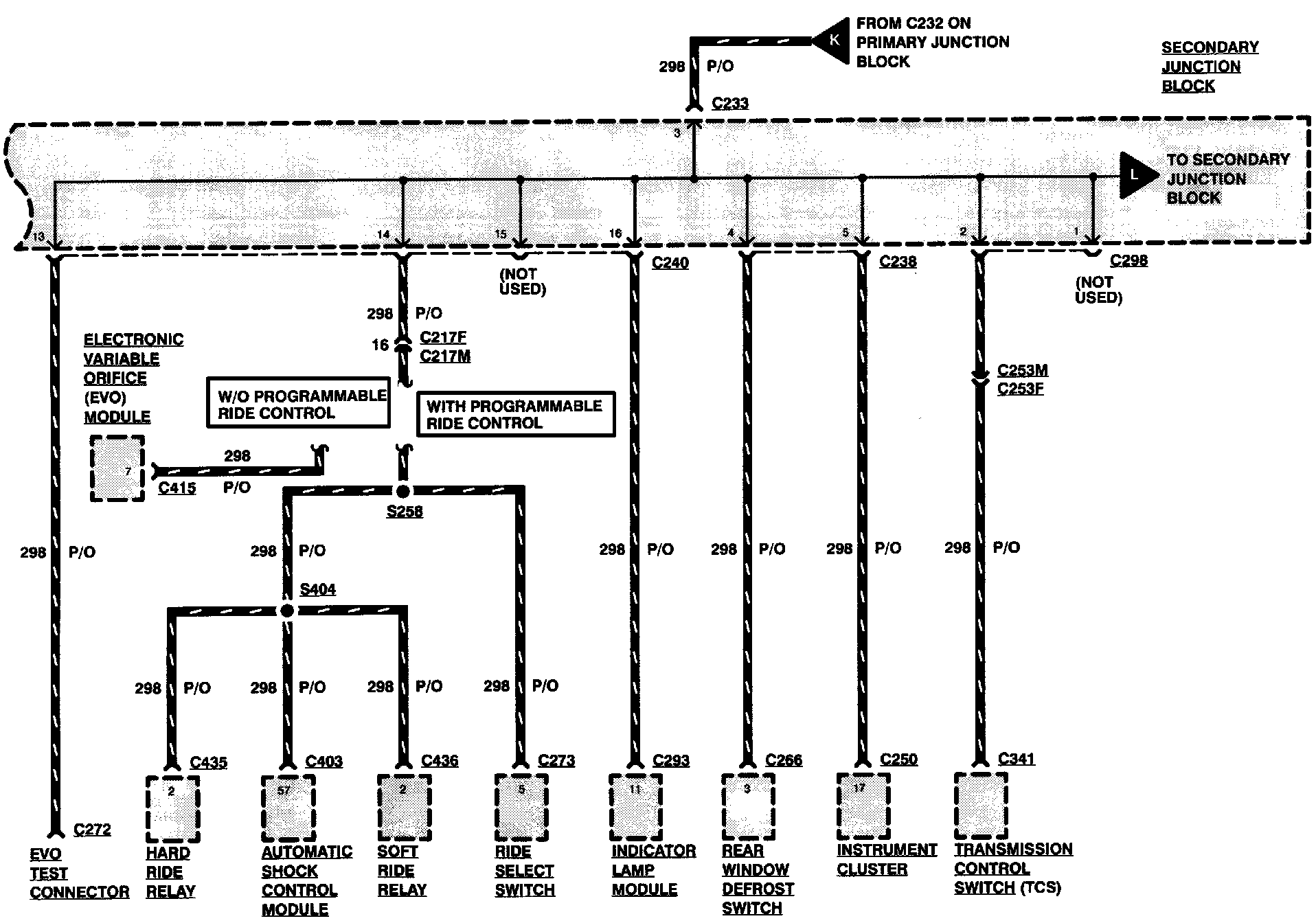

Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:
