Fuse PARK LPS

Fuse PARK LPS - protects the following circuits:
^ Exterior Lamps

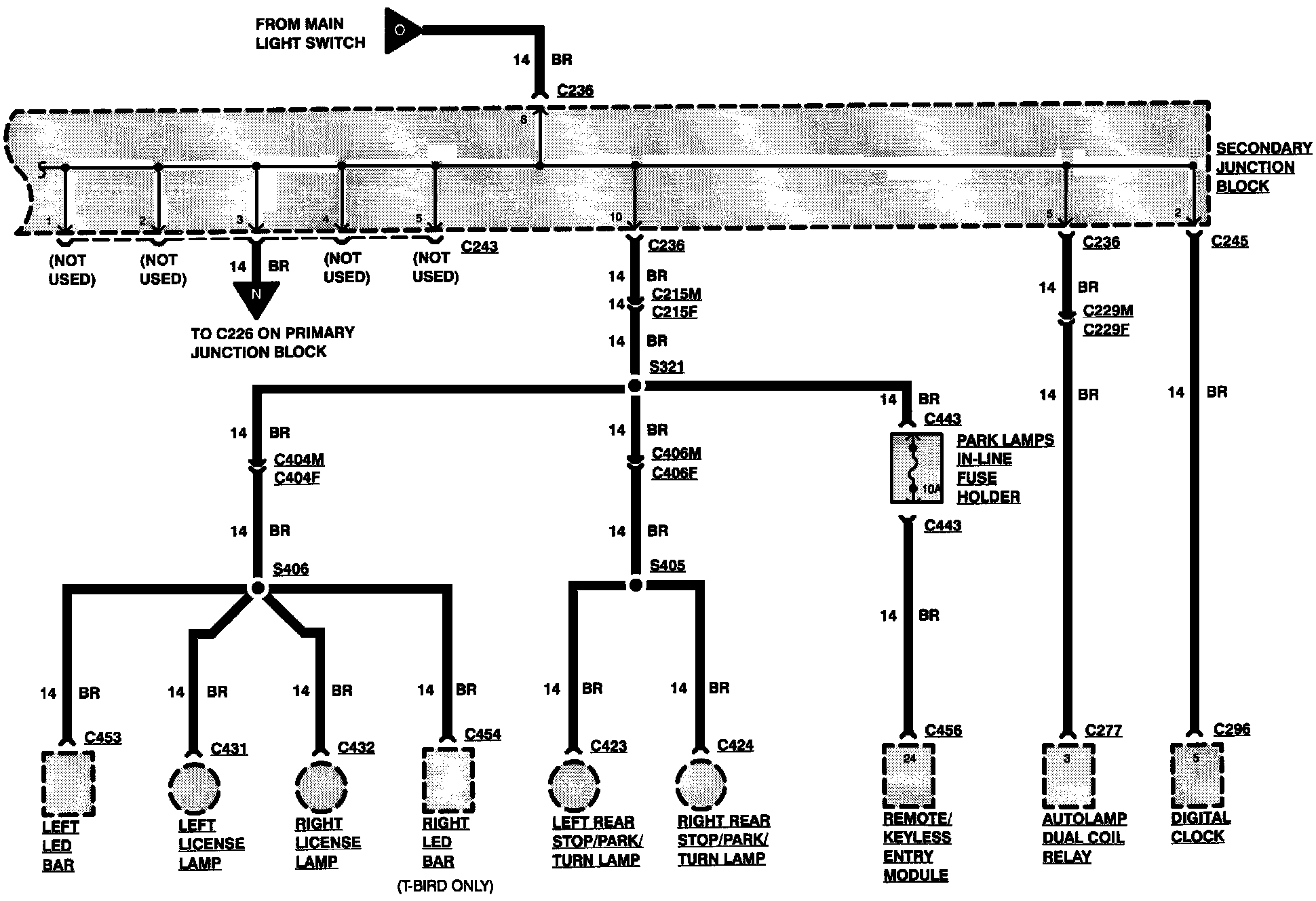

Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:
