Courtesy Lamp

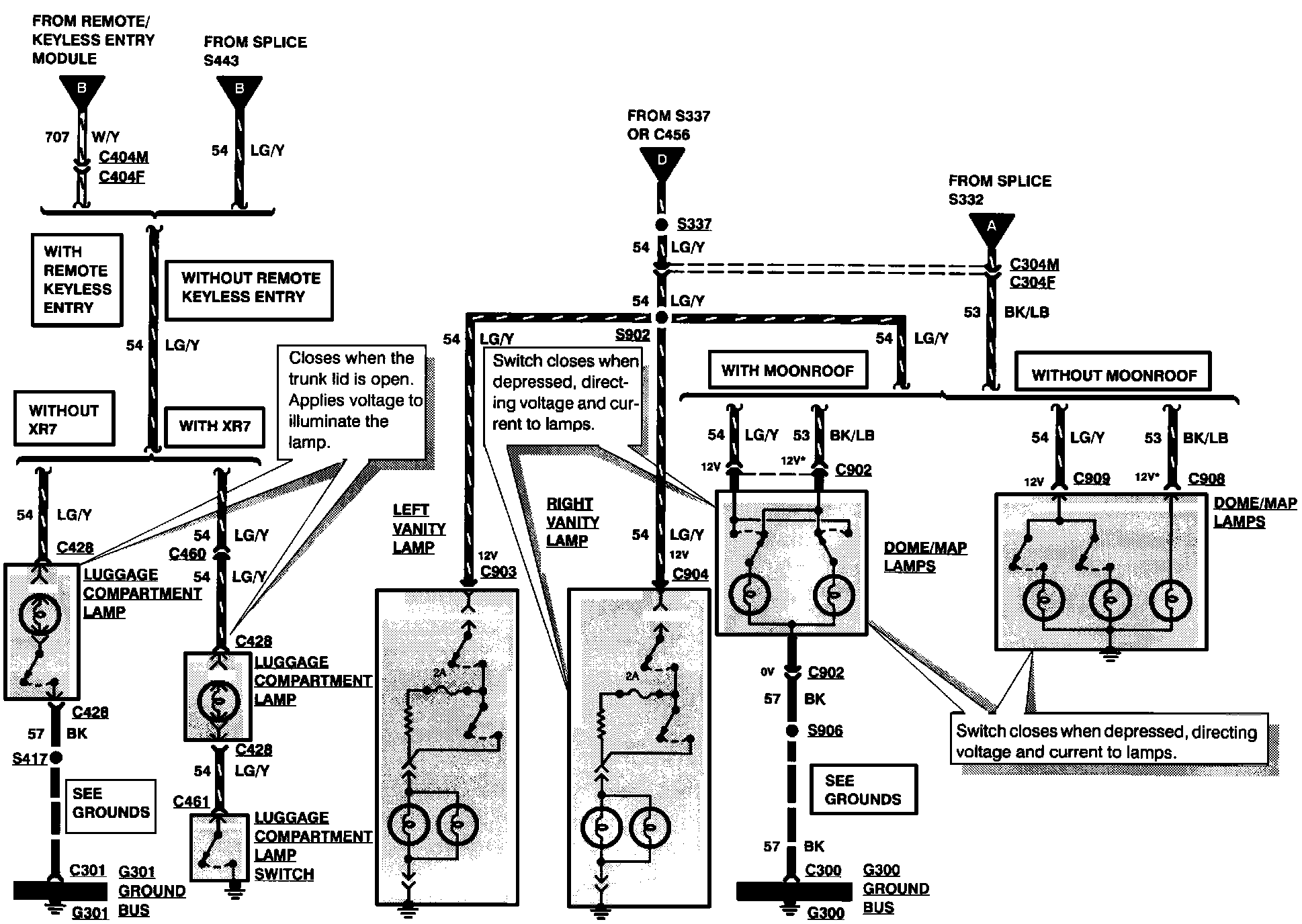

Courtesy Lamps (Part 1 Of 5):

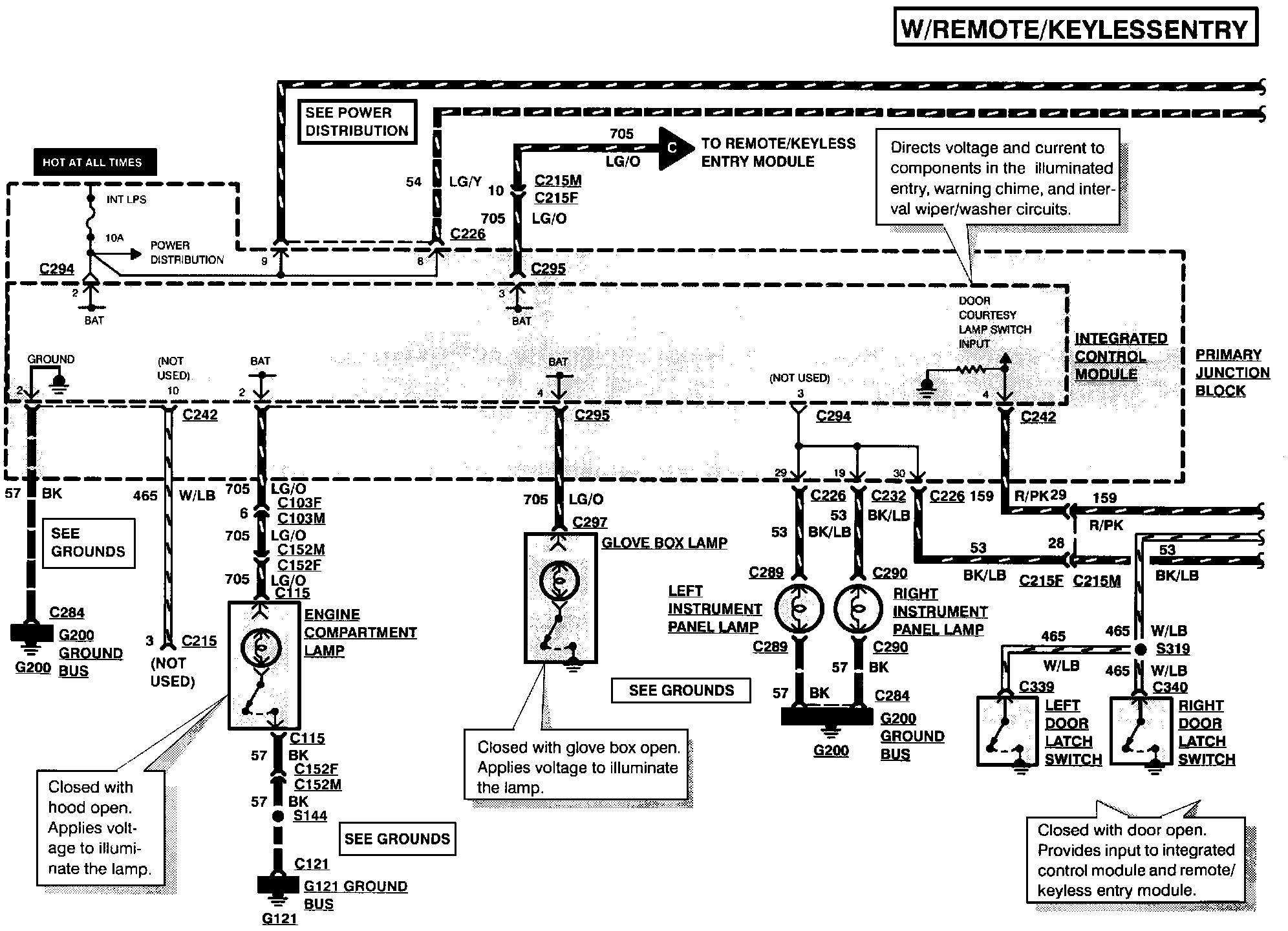

Courtesy Lamps (Part 2 Of 5):

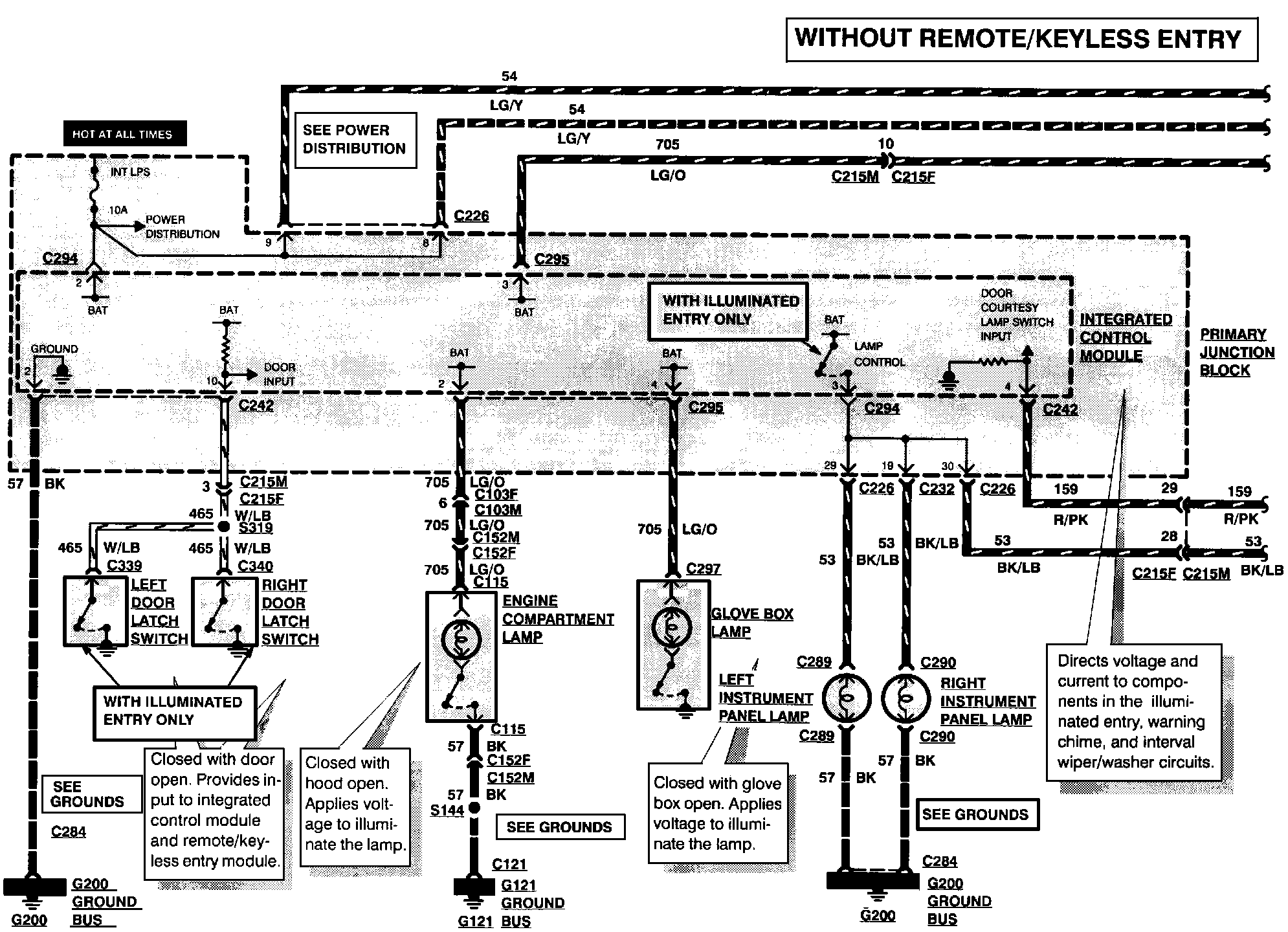

Courtesy Lamps (Part 3 Of 5):

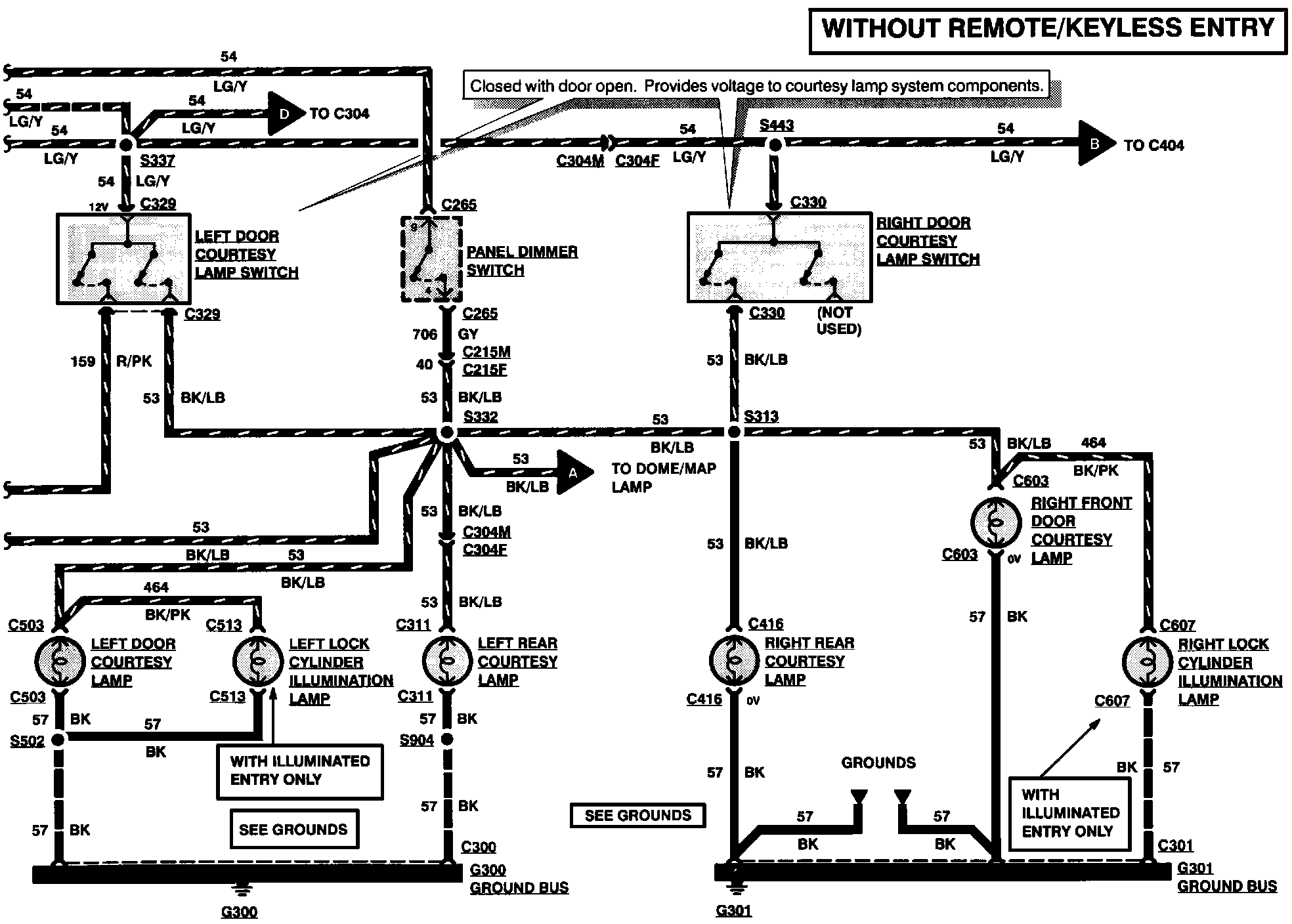

Courtesy Lamps (Part 4 Of 5):

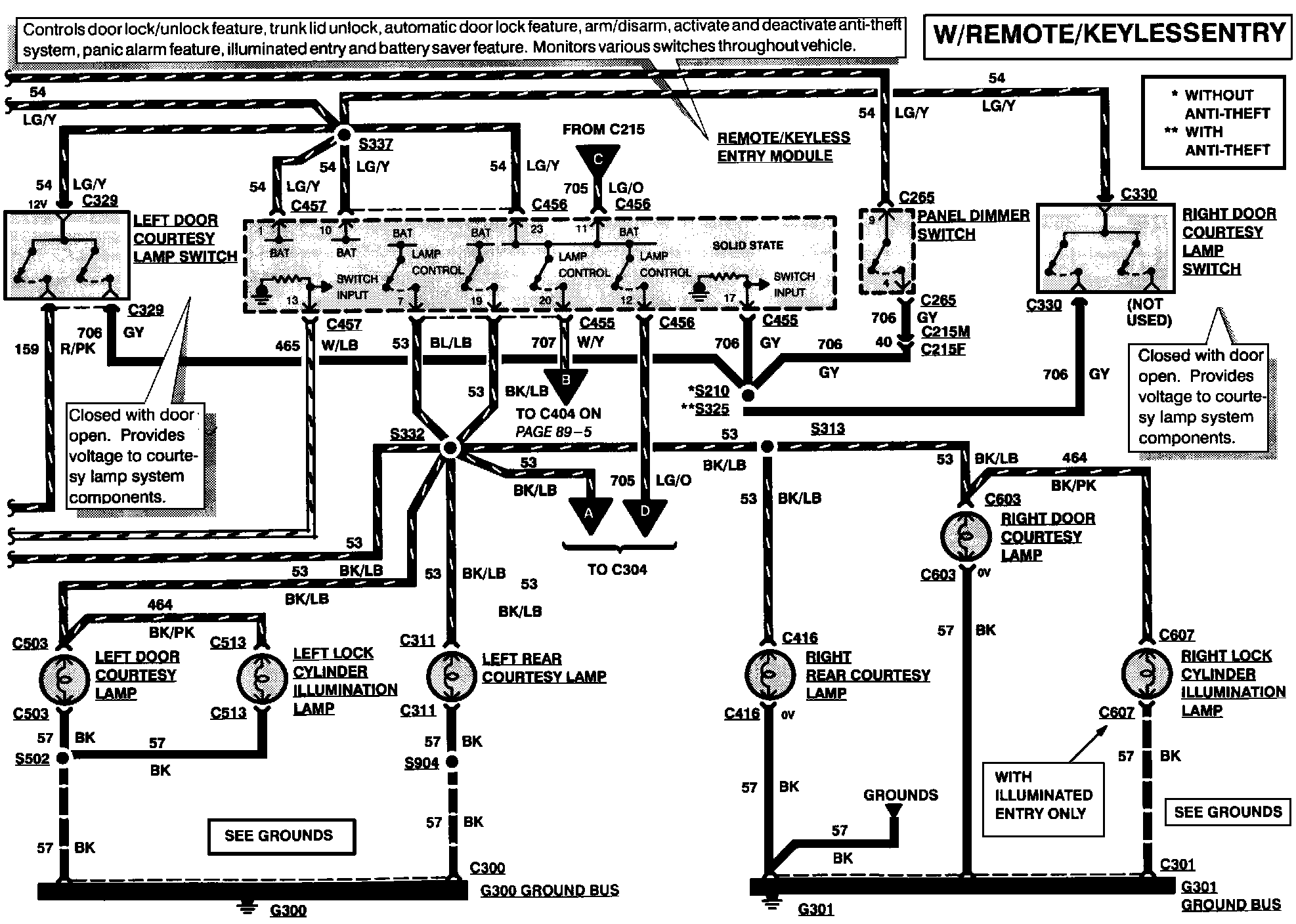

Courtesy Lamps (Part 5 Of 5):
