Wiring Diagrams

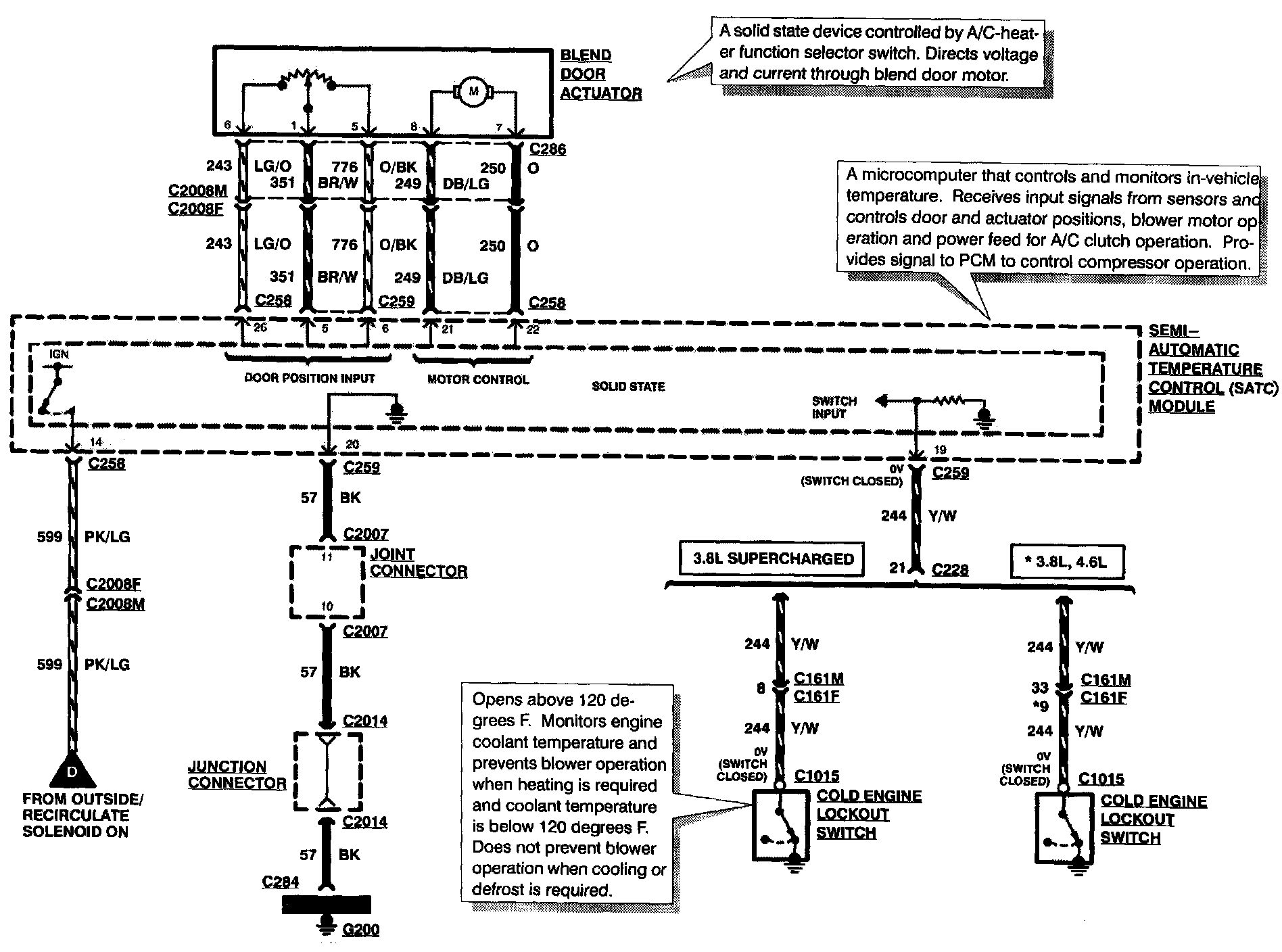

Semi-Automatic Temperature Control, Part 1 Of 5:

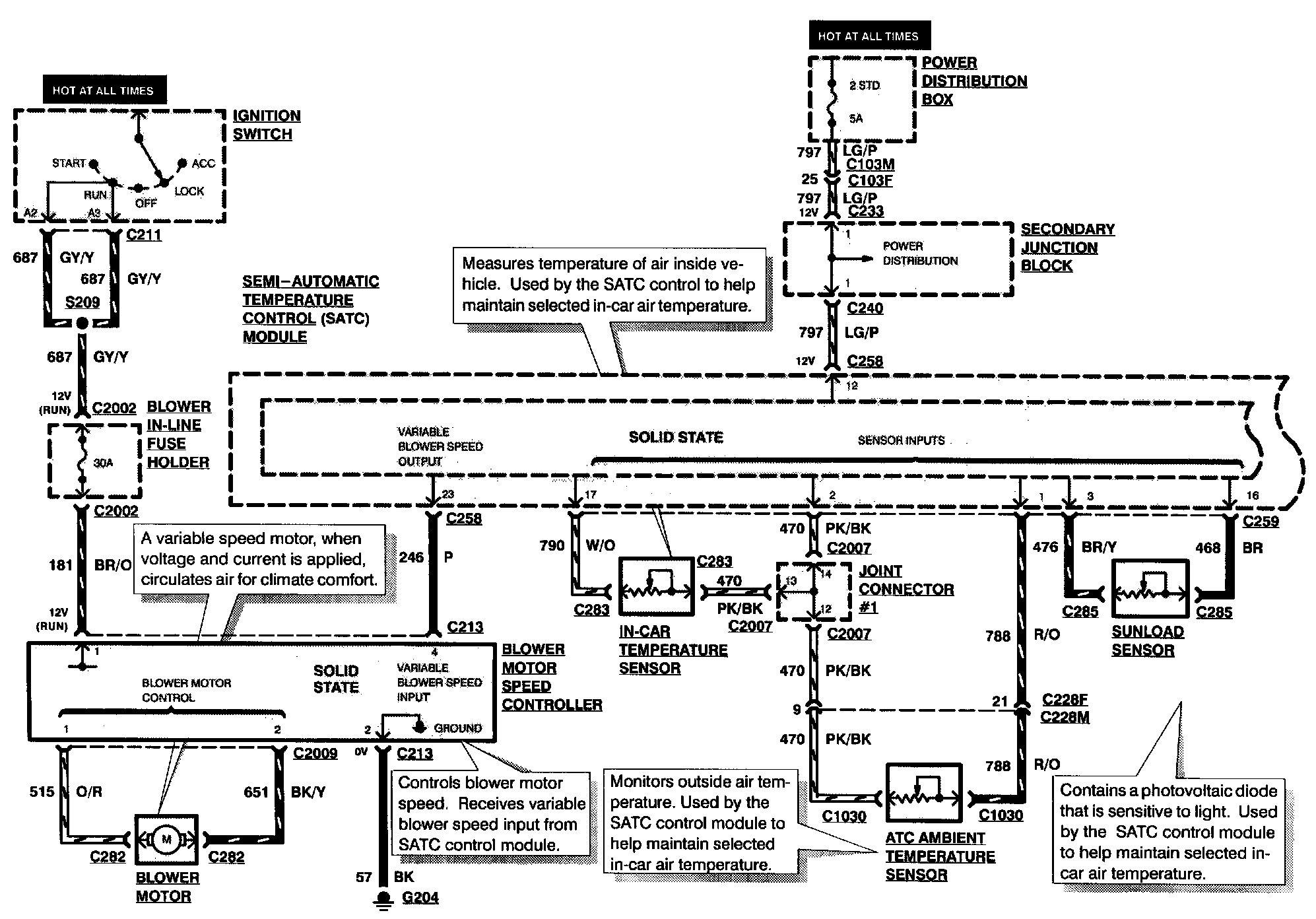

Semi-Automatic Temperature Control, Part 2 Of 5:

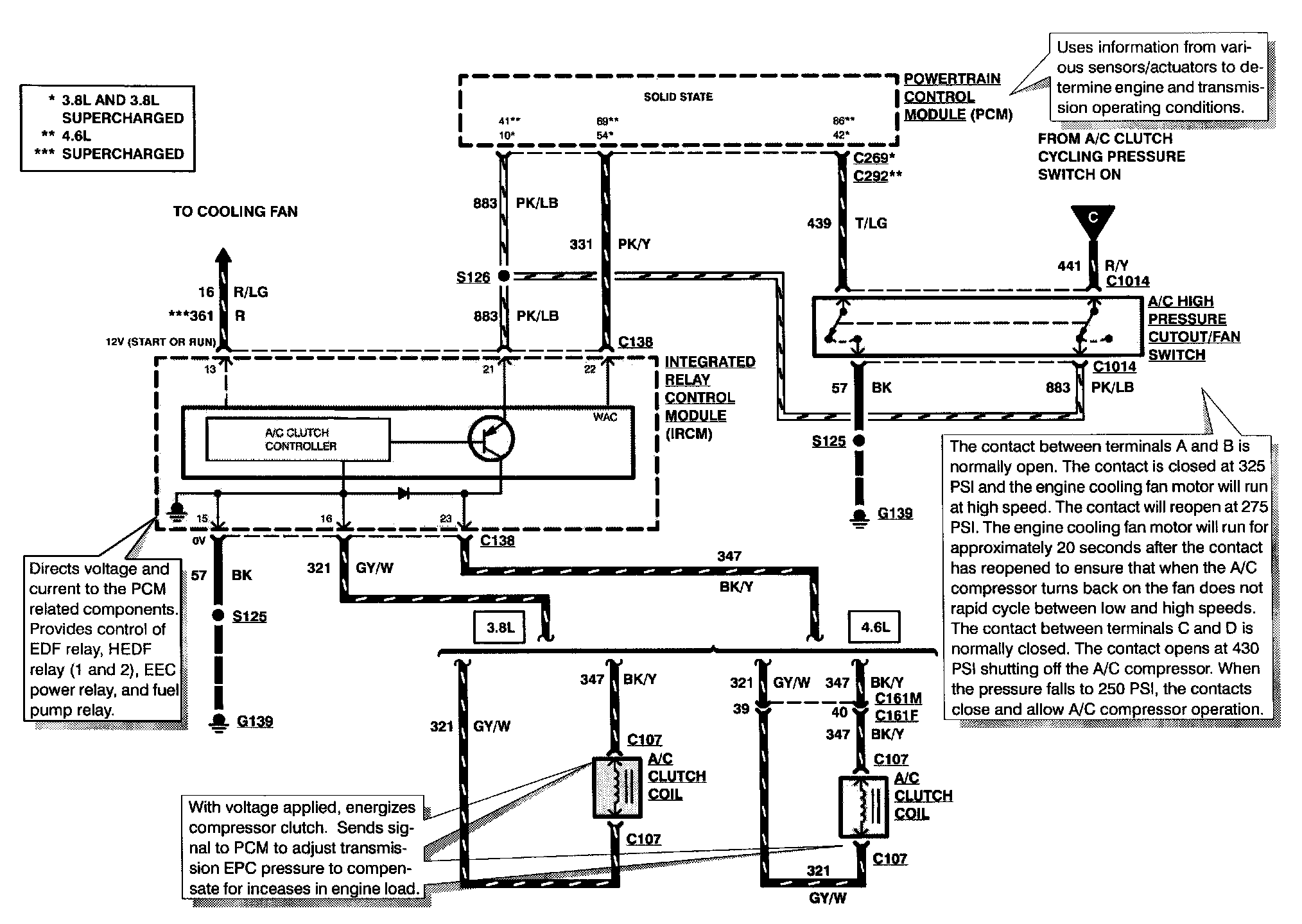

Semi-Automatic Temperature Control, Part 3 Of 5:

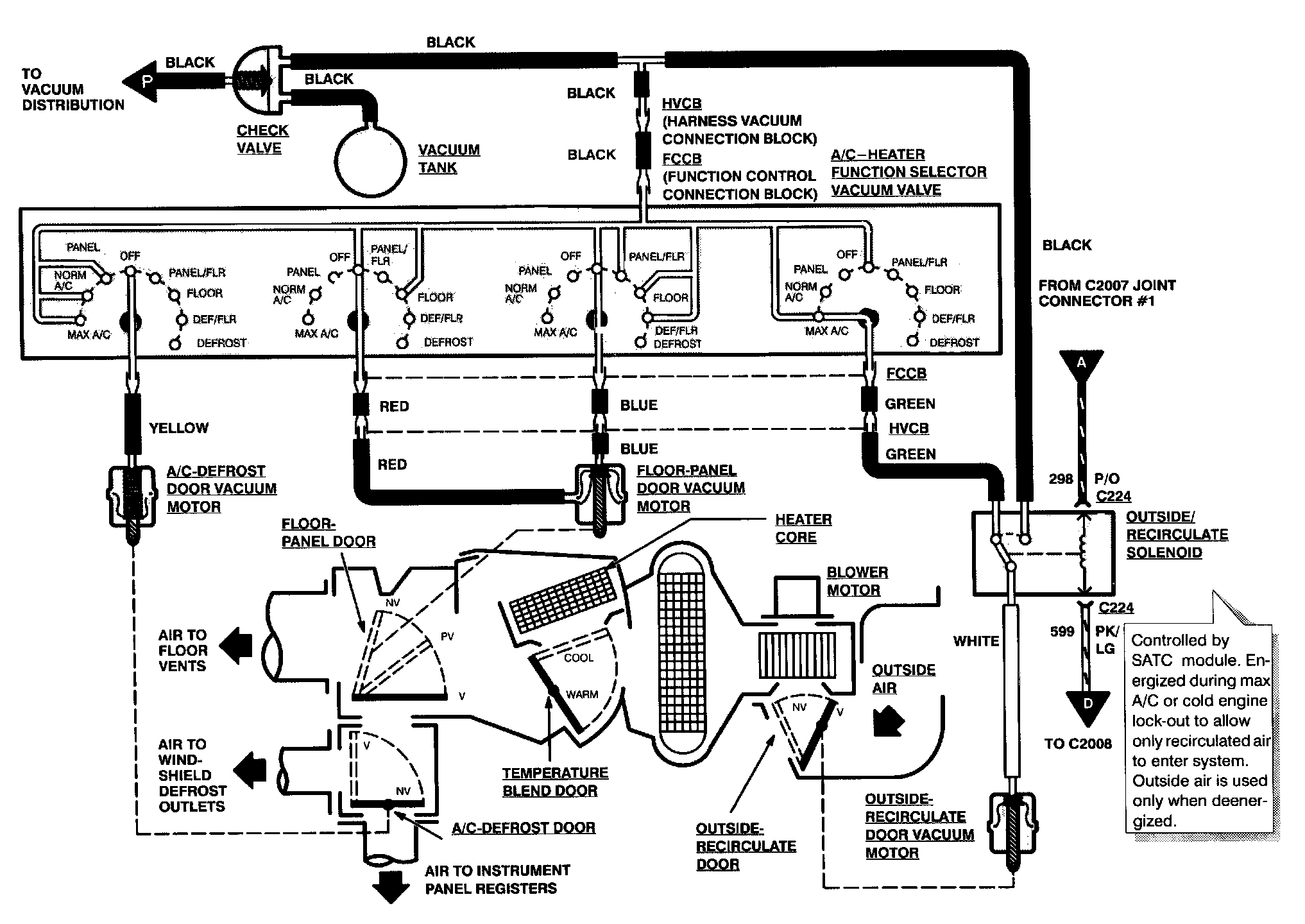

Semi-Automatic Temperature Control, Part 4 Of 5:



Semi-Automatic Temperature Control, Part 5 Of 5:
