FF2 Check Pump Motor Speed Sensor

- Disconnect 4-pin plug on pump motor.

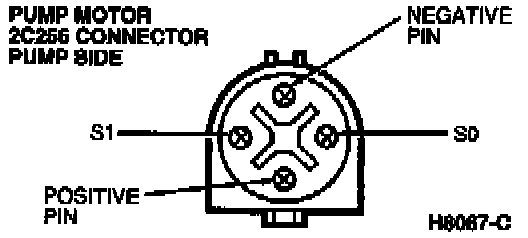

Pump Motor Connector:

- Measure resistance between pins S0 and S1 on pump motor.

- Is resistance between 5 and 100 ohms?

YES -- Service circuit 462 or 604.

NO -- Replace pump motor.
