Instrument Panel - Steering Column Cover





REMOVAL and INSTALLATION

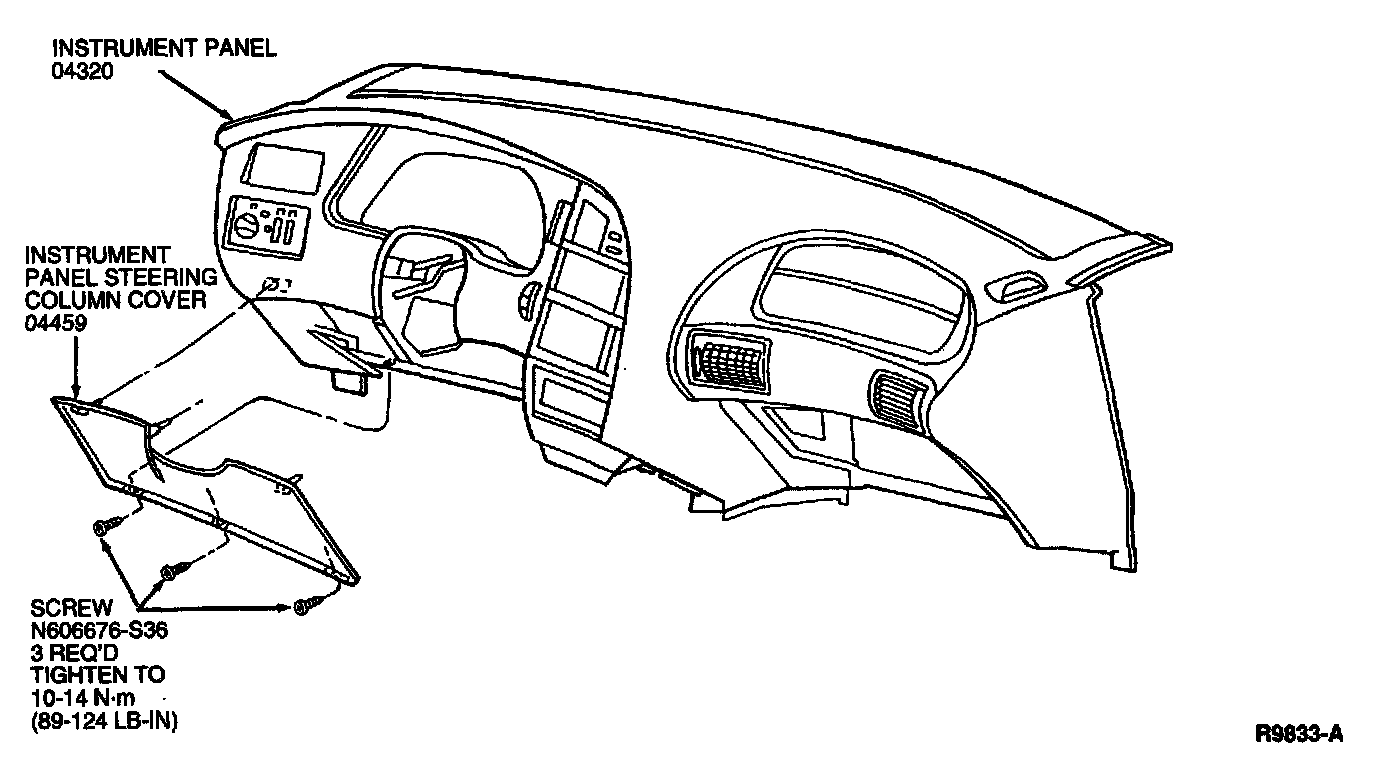

1. Remove three screws retaining bottom of instrument panel steering column cover to instrument panel.
2. Pull on instrument panel steering column cover to unsnap three clips across top of instrument panel steering column cover. Remove instrument panel steering column cover.
3. To install, reverse Removal procedure.
