Removal and Installation

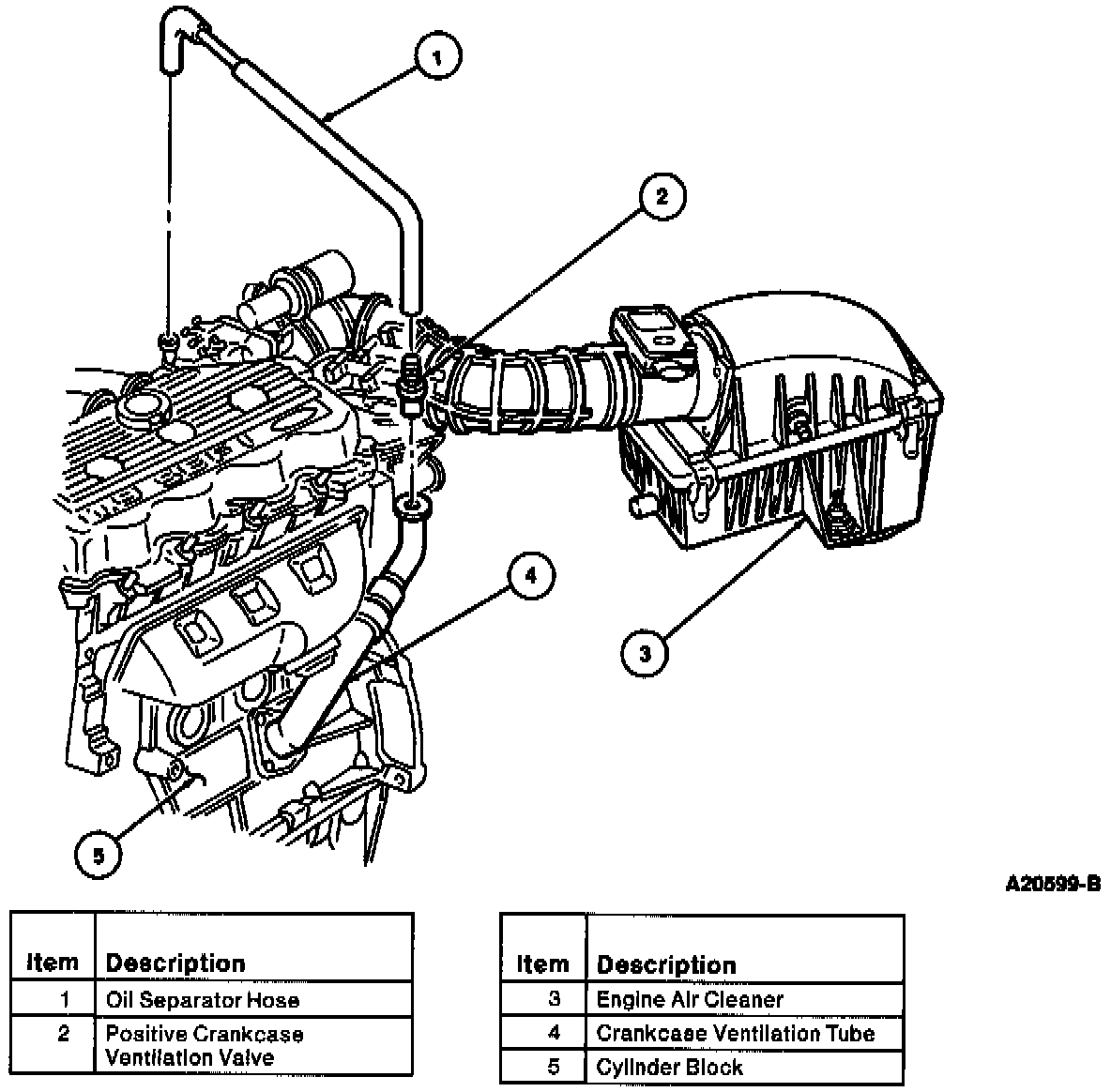

Crankcase Ventilation System:

REMOVAL
^ Remove the oil separator hose from the Positive Crankcase Ventilation (PCV) valve .
^ Remove the PCV valve from the crankcase ventilation tube.

INSTALLATION
^ To install, reverse the removal procedure.
