Home >> Mercury >> 1994 >> Tracer L4-116 1.9L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> TD - Manual Lever Position (MLP) Sensor >> TD - 4EAT Transmission Select Switch State

TD - 4EAT Transmission Select Switch State

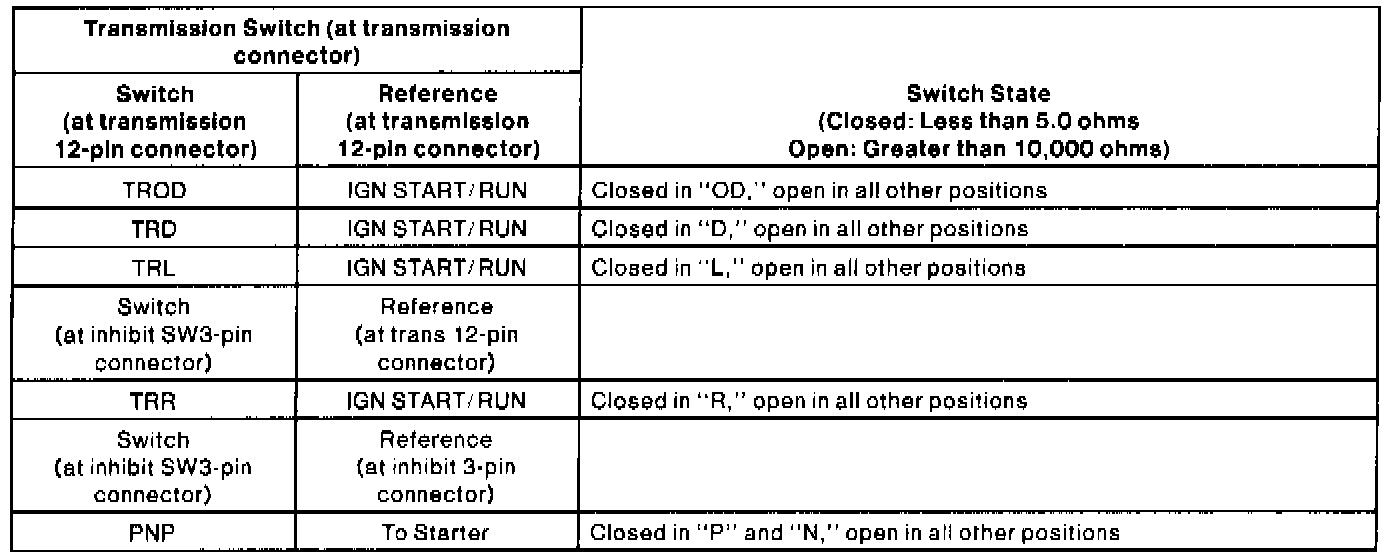

4EAT Transmission Range Switch Table:
