KF13 - Check Circuits From LFC Relay to Fan

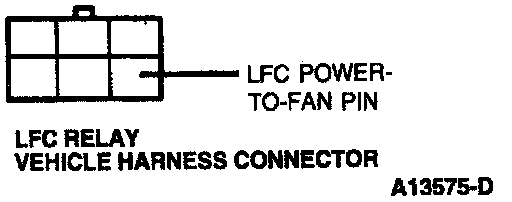

Fan Control Connector View:

- Key "OFF".

- Low Fan Control (LFC) relay disconnected.

- Insert jumper wire from High Fan Control (HFC) relay pin and power-to-fan pin at the LFC relay vehicle harness connector.

- Key "ON".

- Does fan run?

Yes -- Remove jumper. Go to KF16. KF16 - Check Circuits From HFC Relay to Fan

No -- Remove jumper. Go to KF14. KF14 - Check LFC Power-to-Fan Circuit Continuity
