Mercury
>>
1994
>>
Tracer L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
H - Fuel Control
>>
H - Test Schematic
H - Test Schematic
*** UPDATED BY TSB #93-26B-27

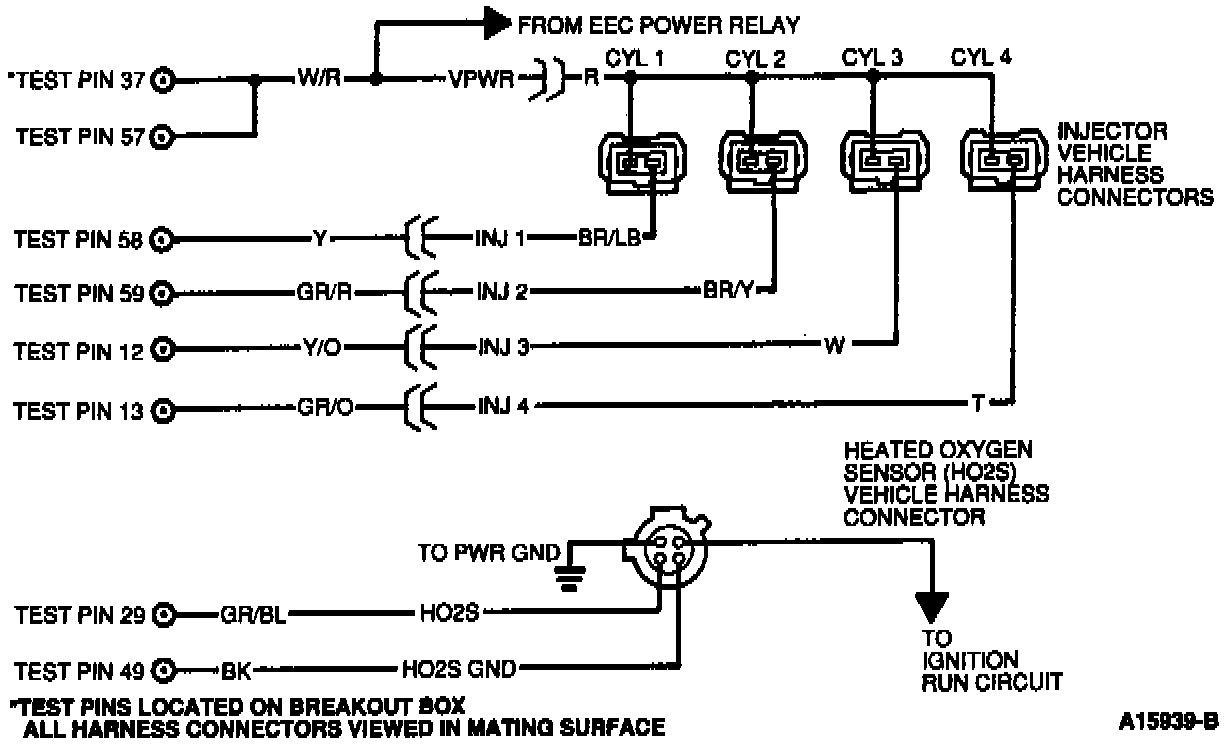

Fuel Control Schematic:
