Home >> Mercury >> 1994 >> Tracer L4-116 1.9L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Inertia Fuel Shutoff Indicator >> Testing and Inspection

Inertia Fuel Shutoff Indicator: Testing and Inspection

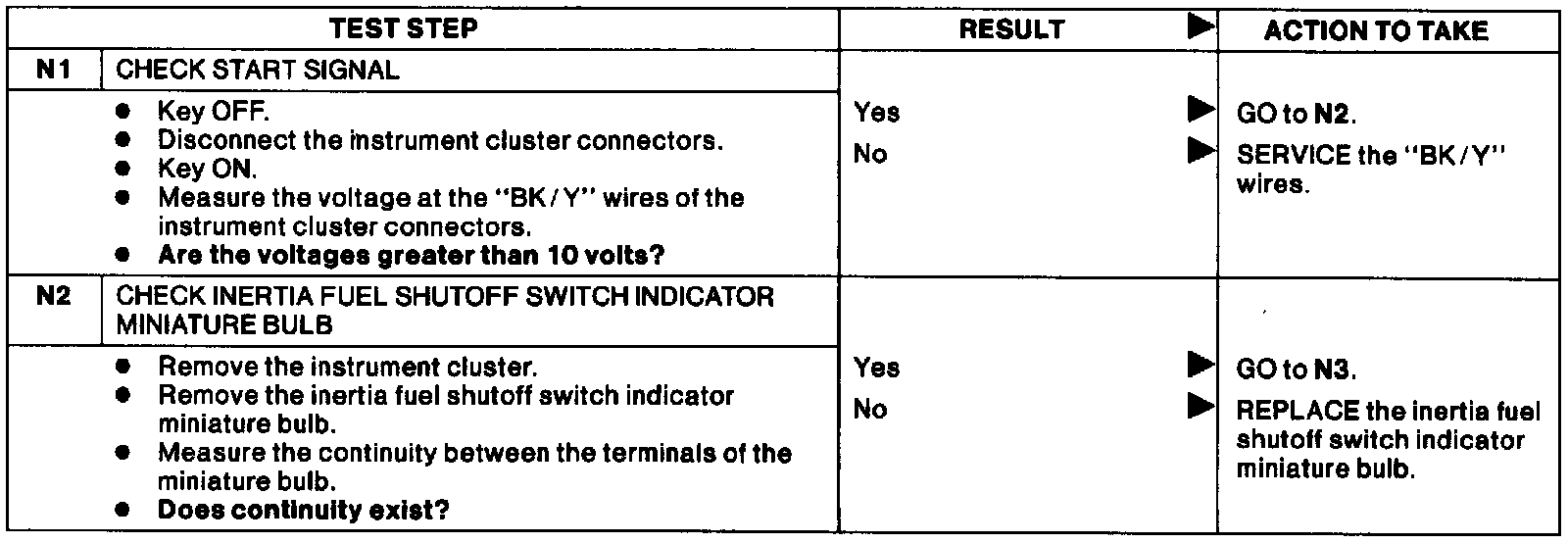

Test N: Inertia Fuel Shutoff Switch Lamp Inoperative.:





Test N1-N2

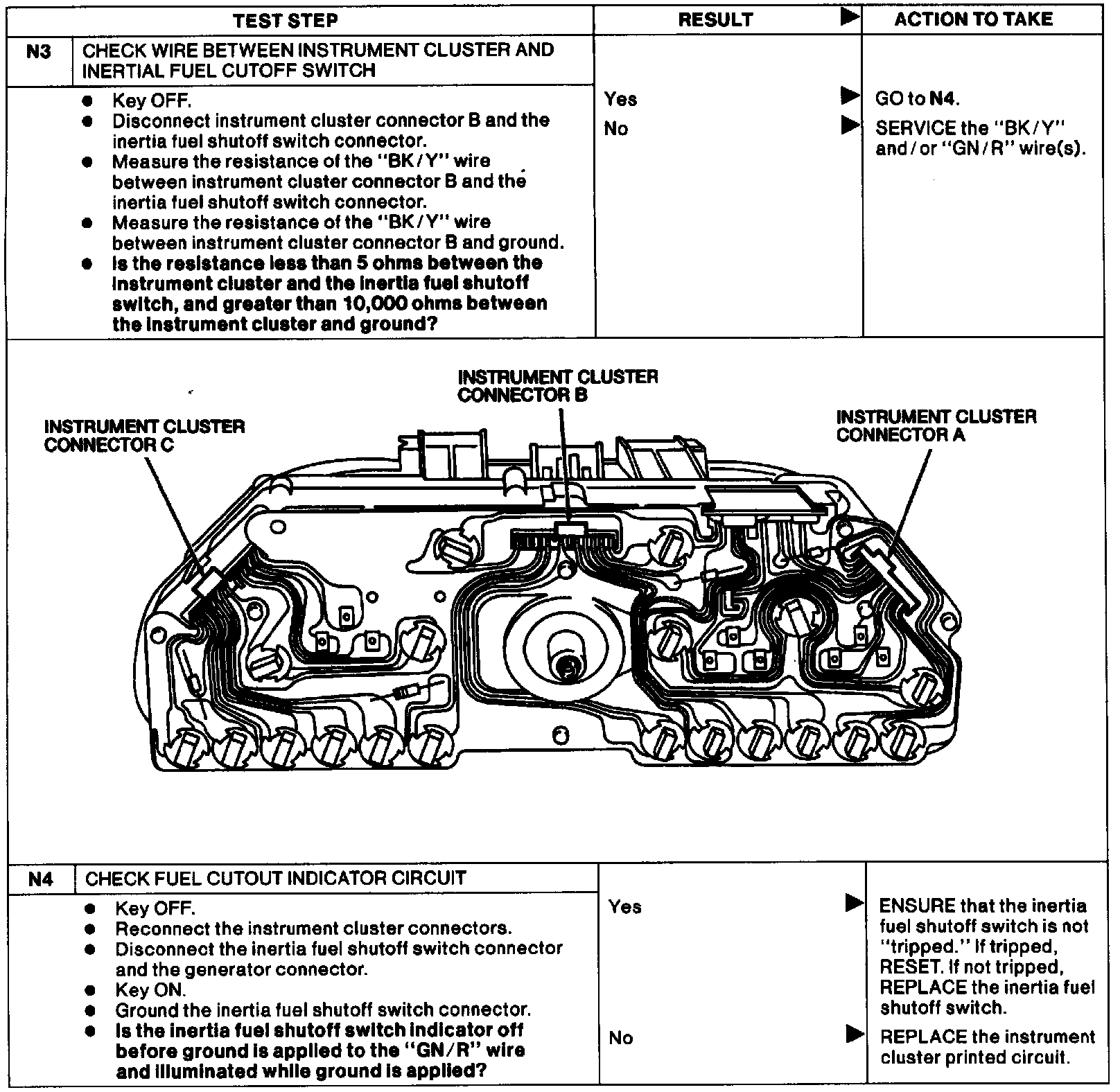

Test N: Inertia Fuel Shutoff Switch Lamp Inoperative.:





Test N3-N4
