Air Cleaner Fresh Air Duct/Hose: Service and Repair
REMOVAL1. Disconnect the battery ground cable.
2. Loosen the tube clamps at both ends of the air cleaner outlet tube.
3. Carefully remove the air cleaner outlet tube. A gentle twisting motion will release the tube from its mounting surfaces on the throttle body and on the mass airflow sensor.
4. Disconnect the mass airflow sensor and the intake air temperature sensor electrical cable.
5. Remove the oil separator hose from the bottom of the filter housing.
6. Remove the two bolts and one retainer nut.
7. Remove the engine air cleaner from the front fender apron.

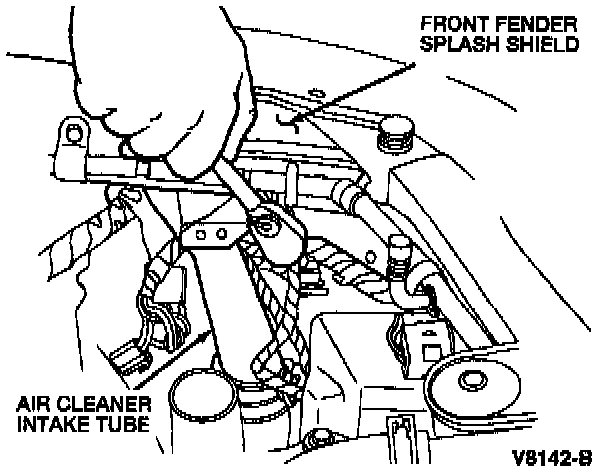

8. Remove the air cleaner intake tube mounting bolt from the front fender apron. Remove the air cleaner intake tube.
INSTALLATION
Intake Tube:
To install, reverse the removal procedure. Ensure that the air cleaner intake tube is positioned correctly on the engine air intake resonator and that the engine air cleaner is positioned correctly on top of the air cleaner intake tube.
