Tracer L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
A/C Signal
A/C Signal

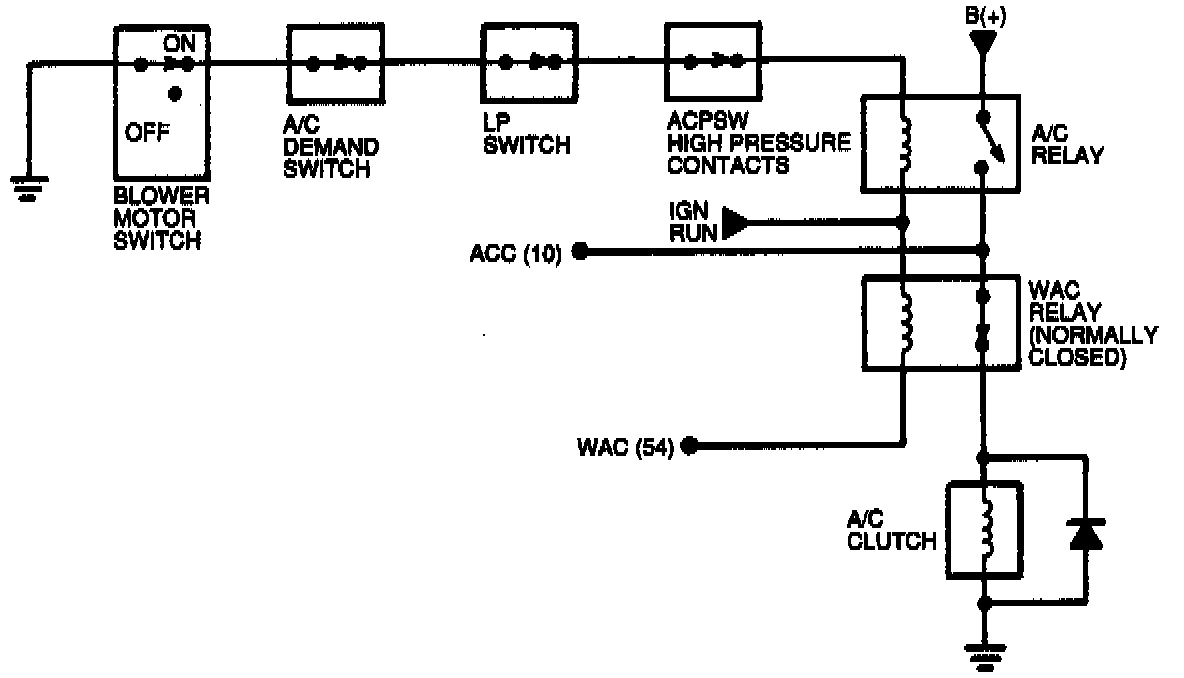

Testing Schematic:
WIRING DIAGRAM

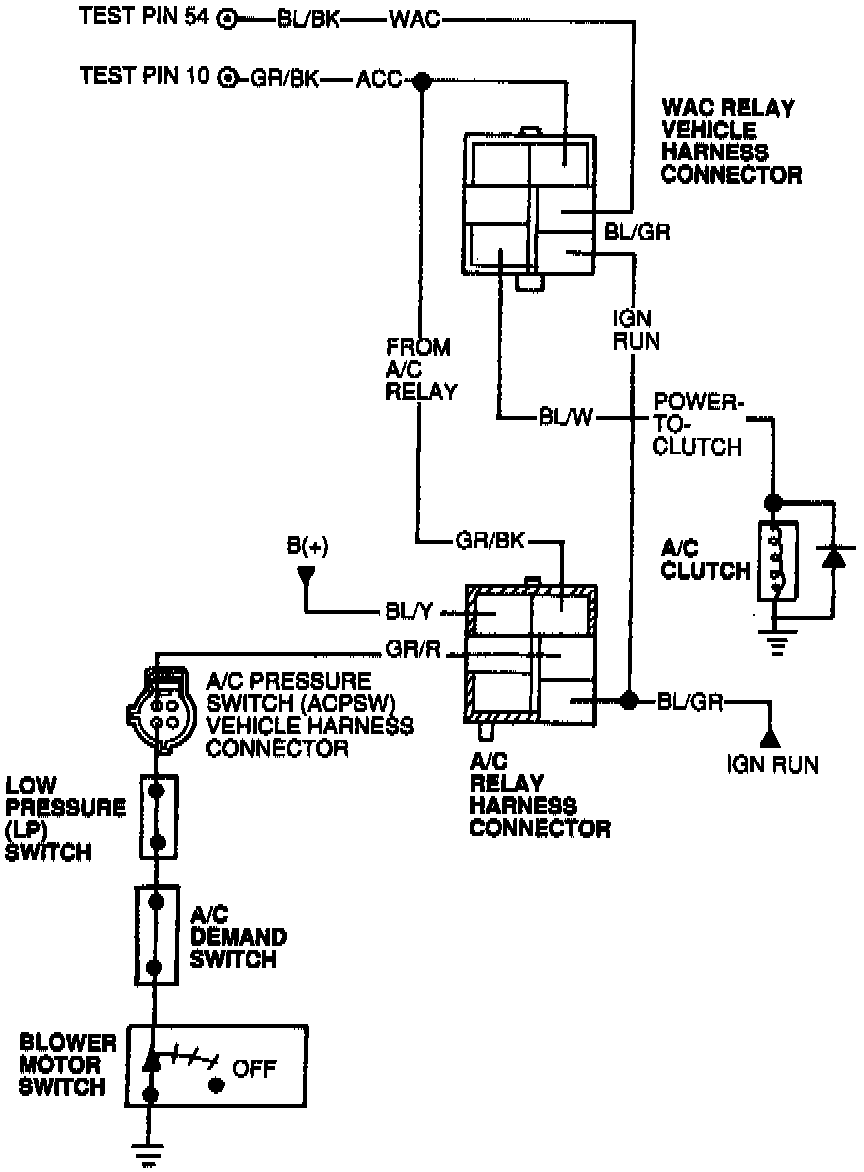

Harness Connection:
HARNESS CONNECTION
