Instrument Panel Fuse Panel

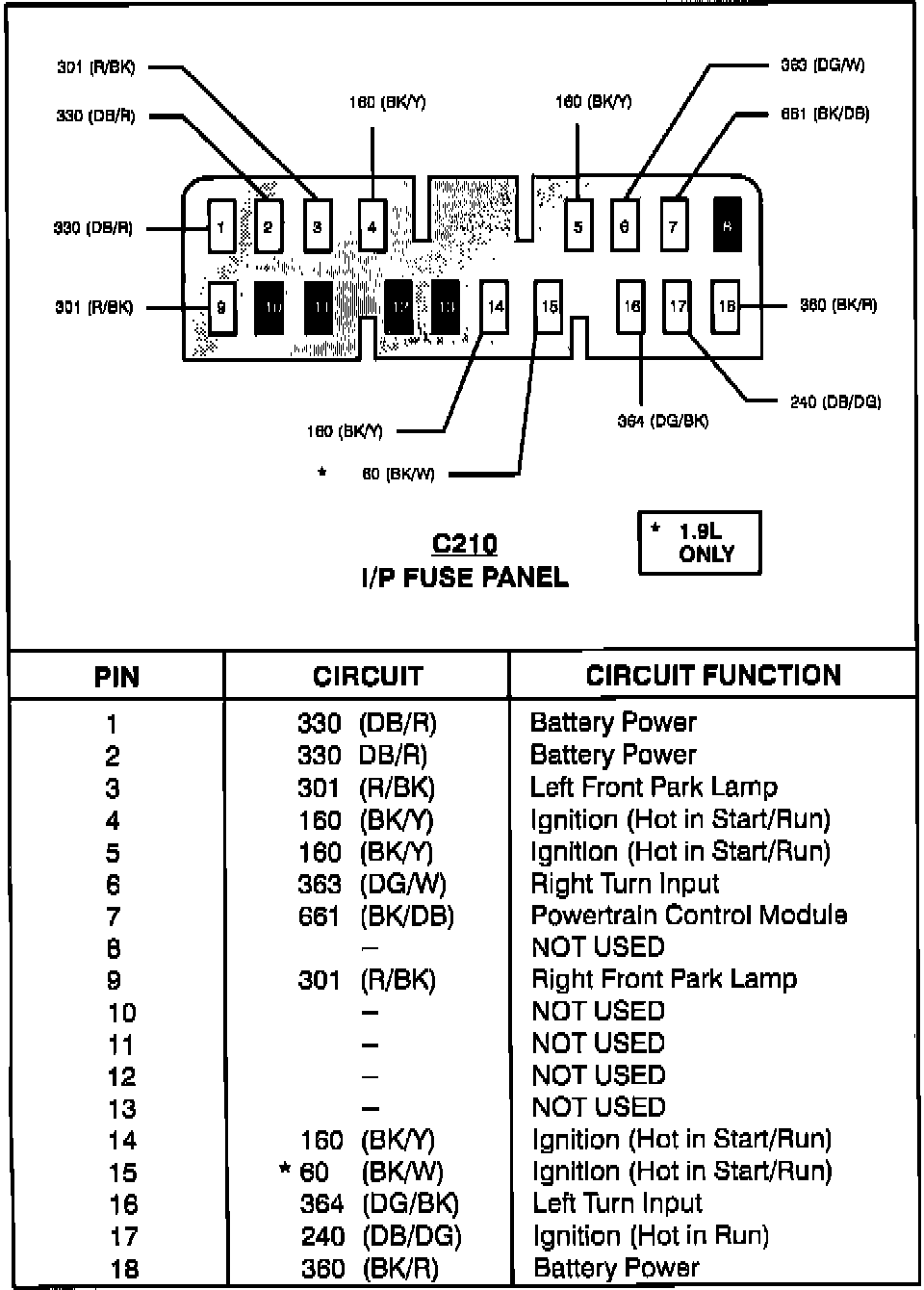

Instrument Panel Fuse Panel:

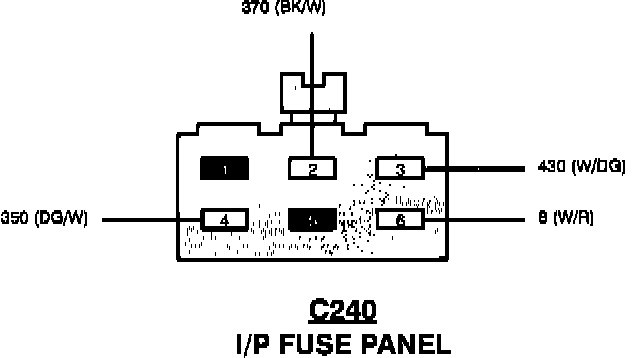

Instrument Panel Fuse Panel:

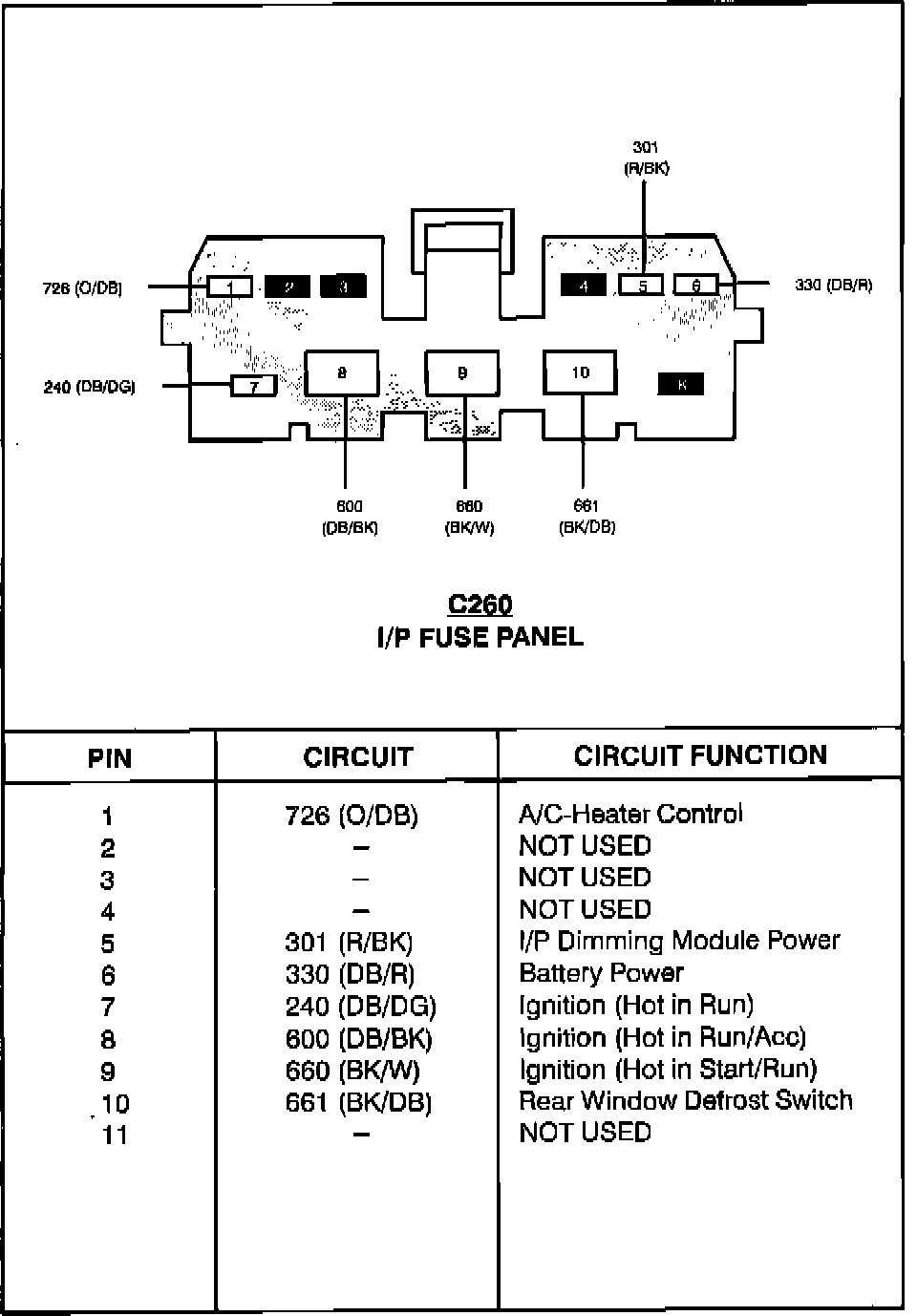

Instrument Panel Fuse Panel:

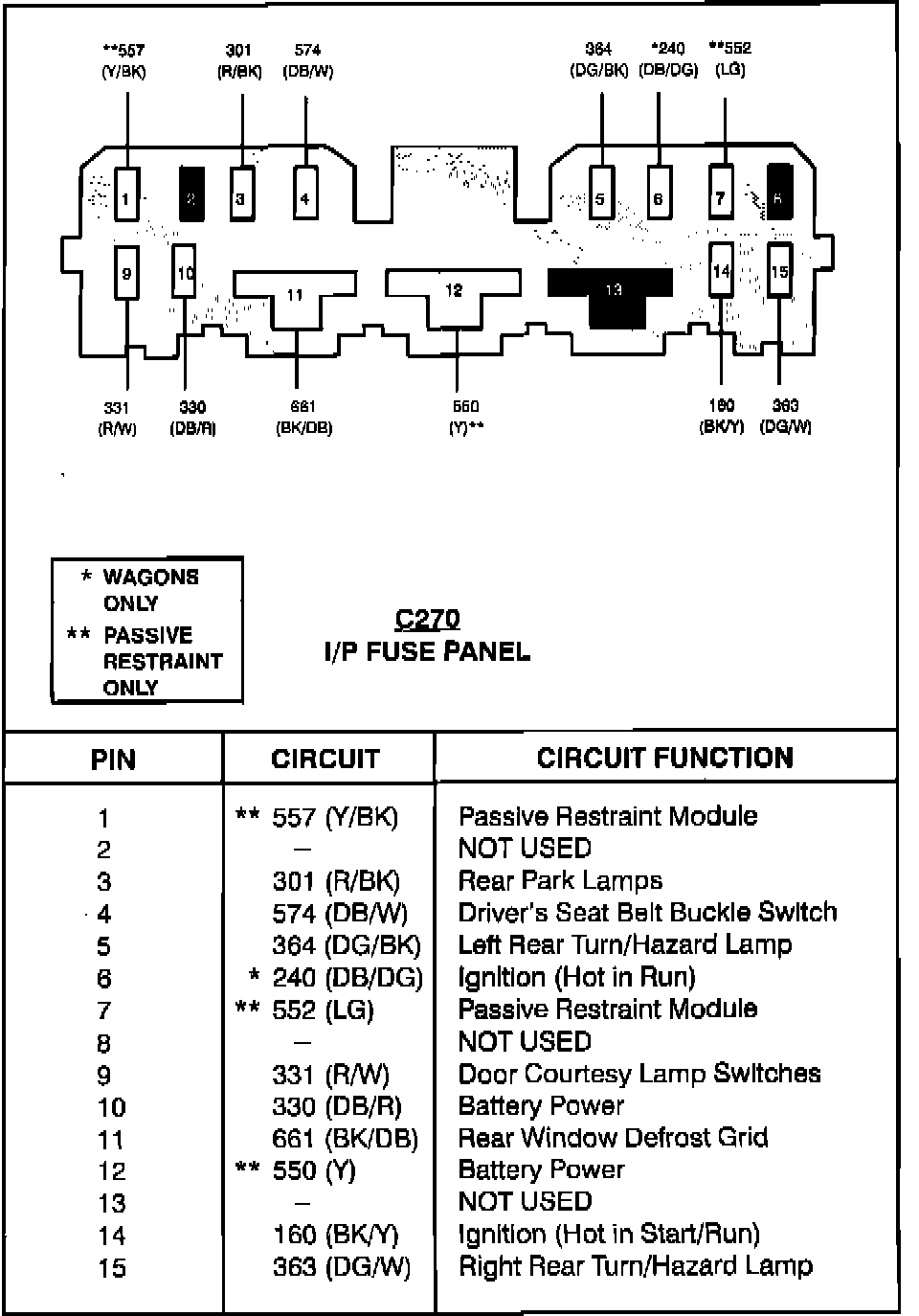

Instrument Panel Fuse Panel:

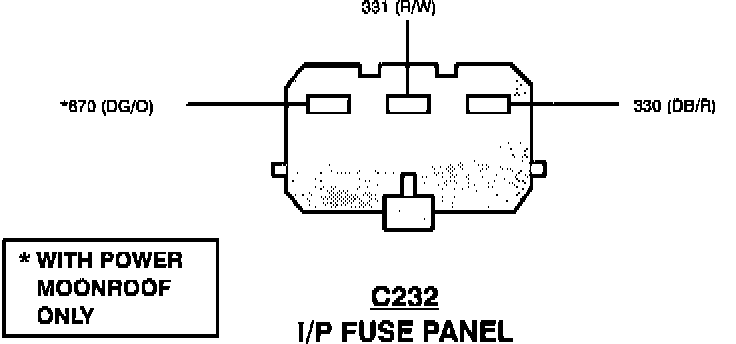

Instrument Panel Fuse Panel:

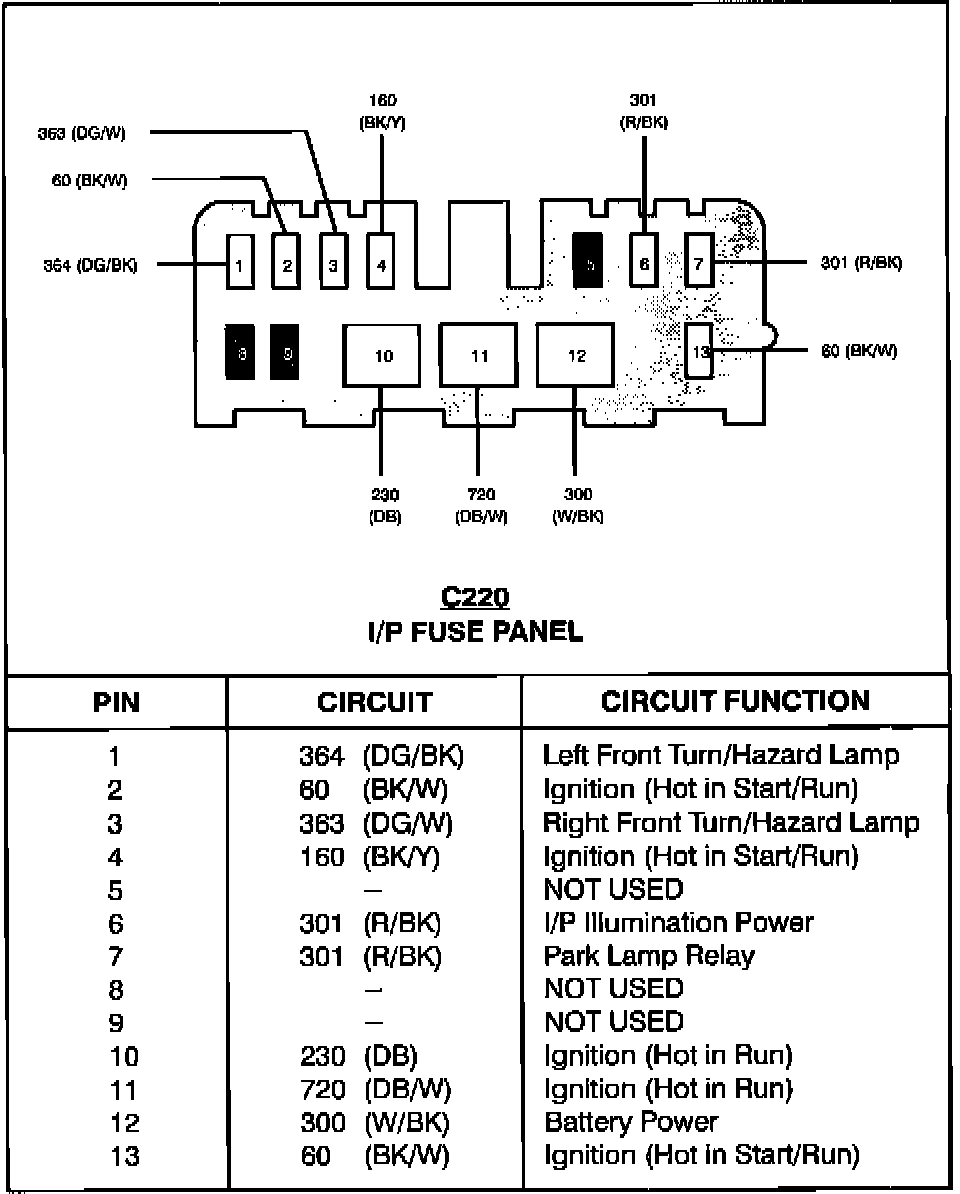

Instrument Panel Fuse Panel:

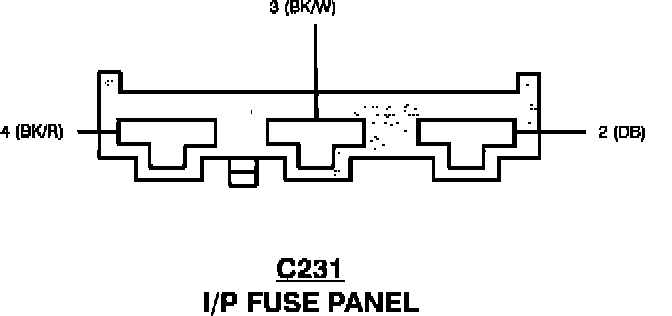

Instrument Panel Fuse Panel:

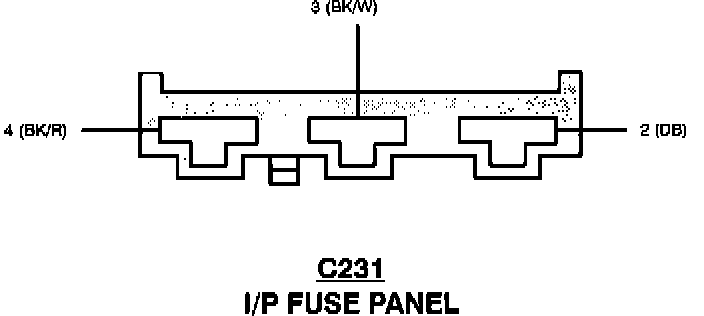

Instrument Panel Fuse Panel:




Instrument Panel Fuse Panel:
