Windshield Washer Switch: Testing and Inspection

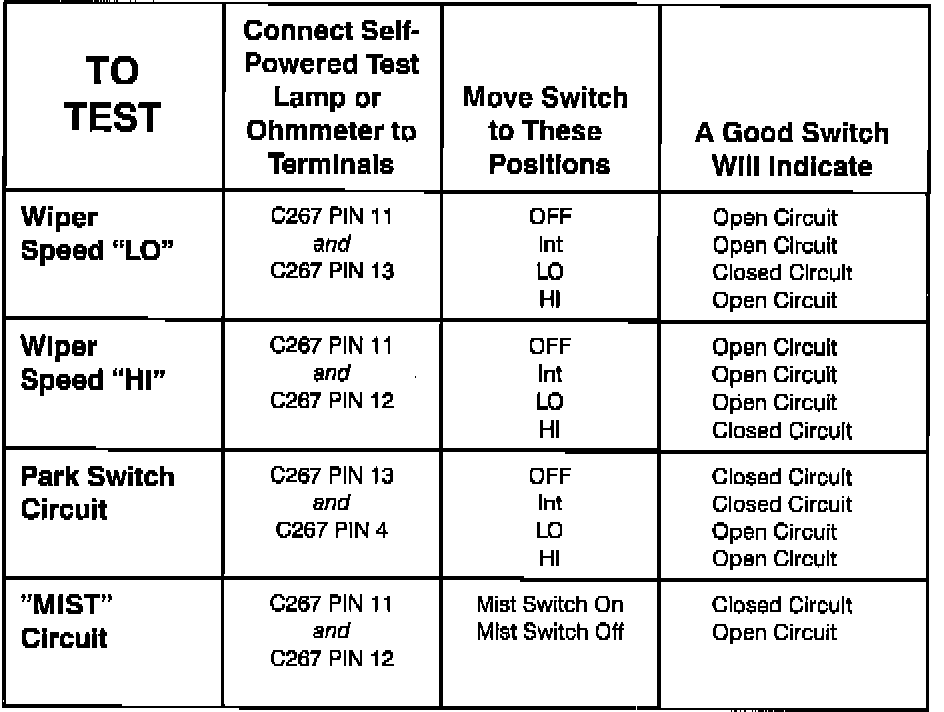

Component Testing Procedure:






Multi-Function Switch - Terminal Locations:

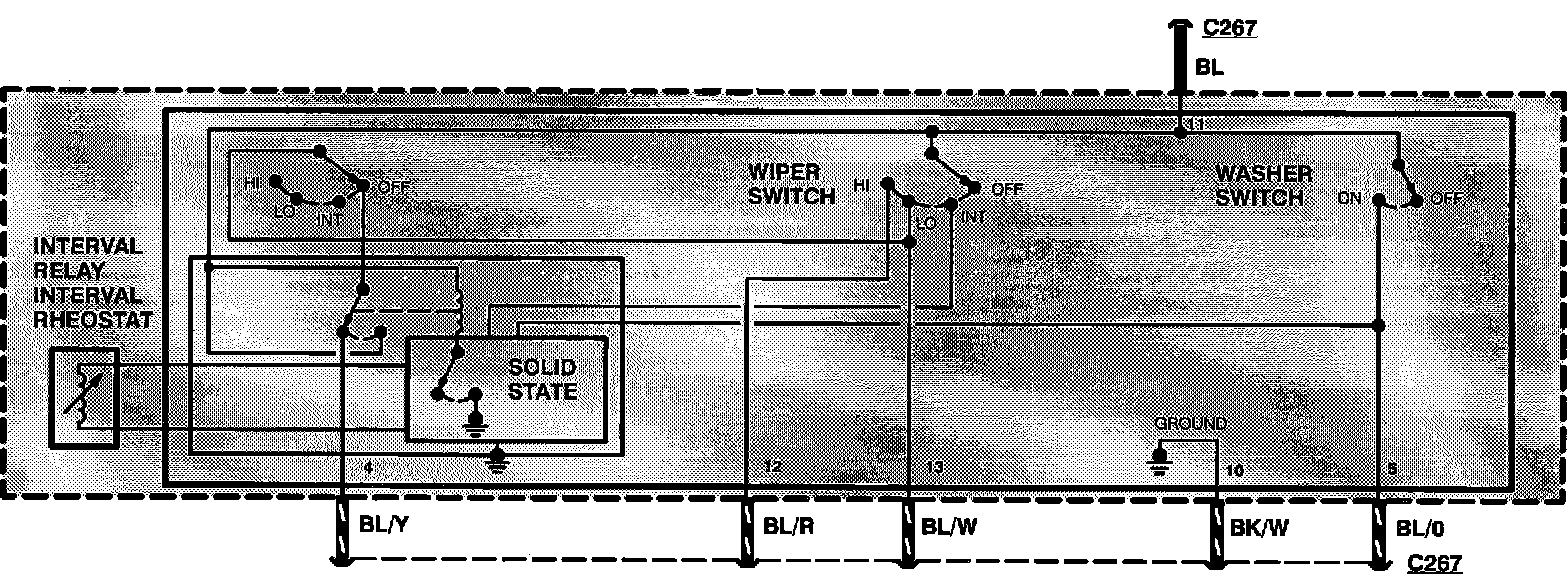

Schematic:
