Home >> Mercury >> 1994 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Testing and Inspection

Power Window Switch: Testing and Inspection

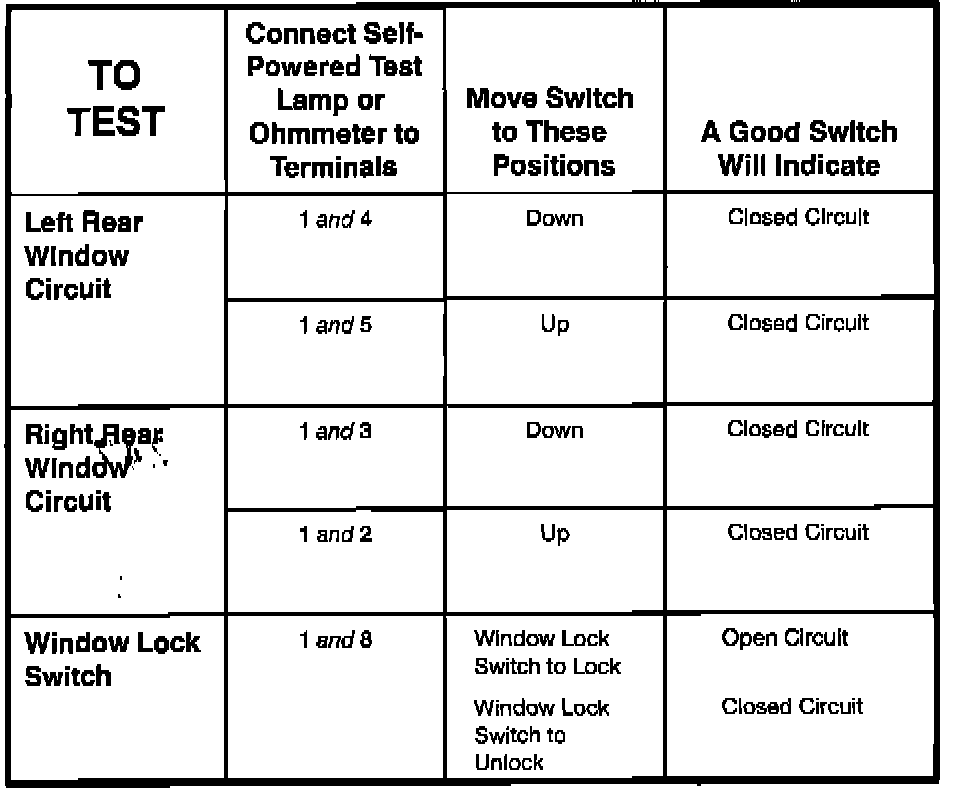

Component Testing Procedure:




Component Testing Procedure:





Terminal ID:

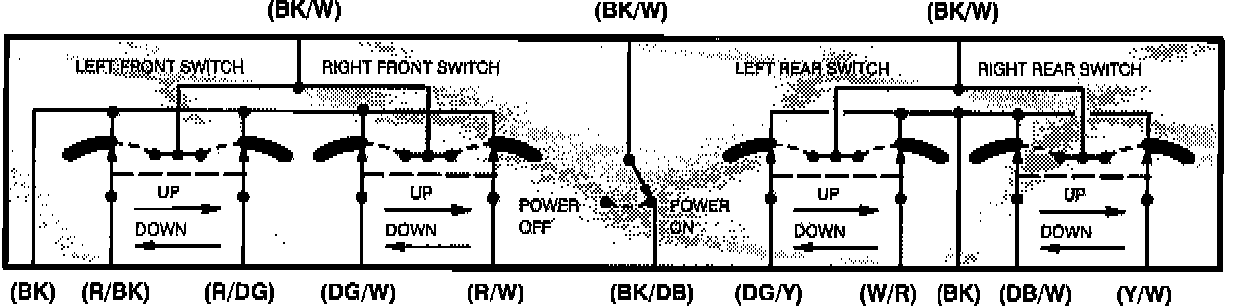

Schematic:
