Home >> Mercury >> 1994 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Manufacturer Code Charts >> 13: Air Bag Circuit Shorted to Ground >> 13-6 to 13-8

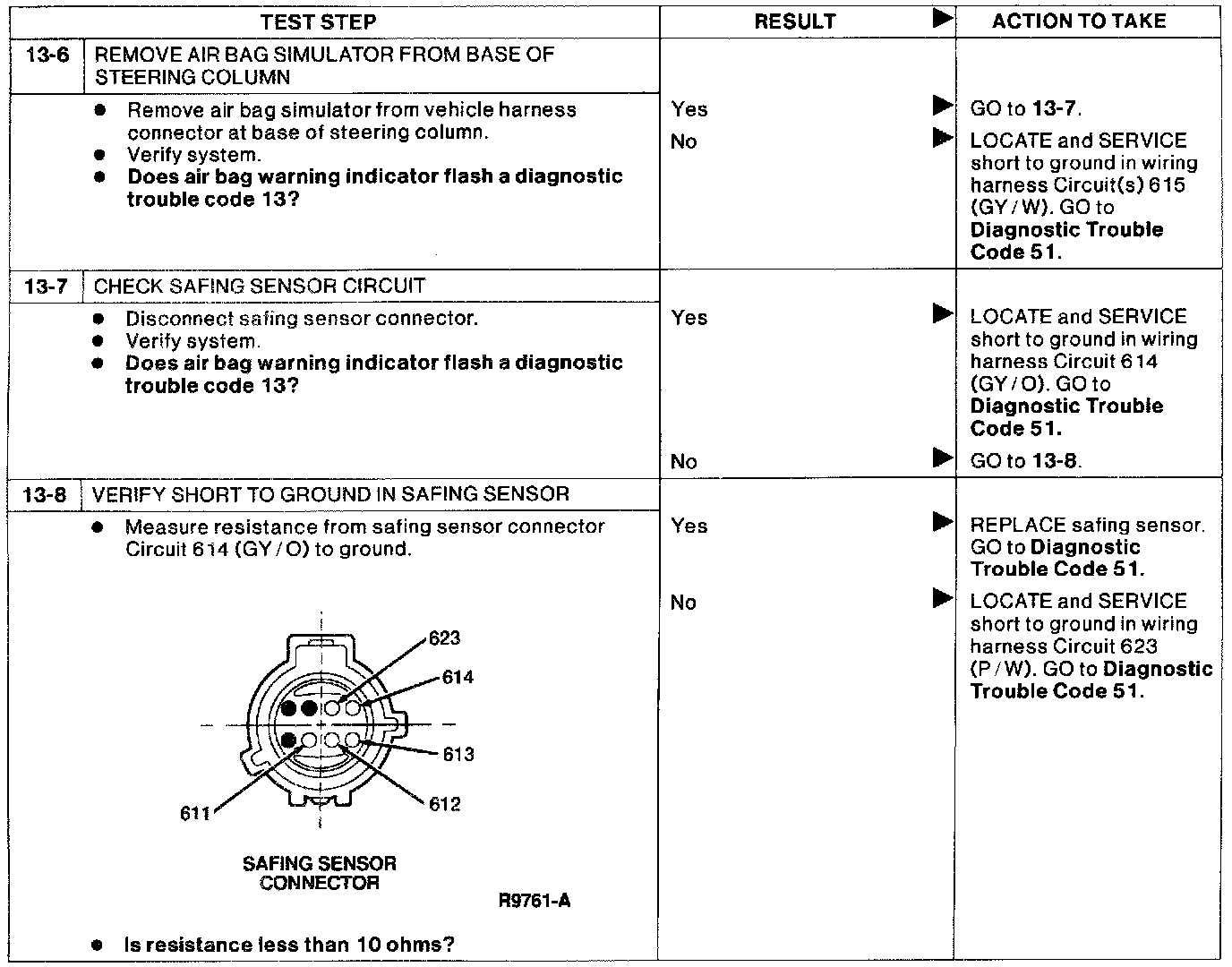

13-6 to 13-8
