System Diagram

FUEL SYSTEM SCHEMATIC

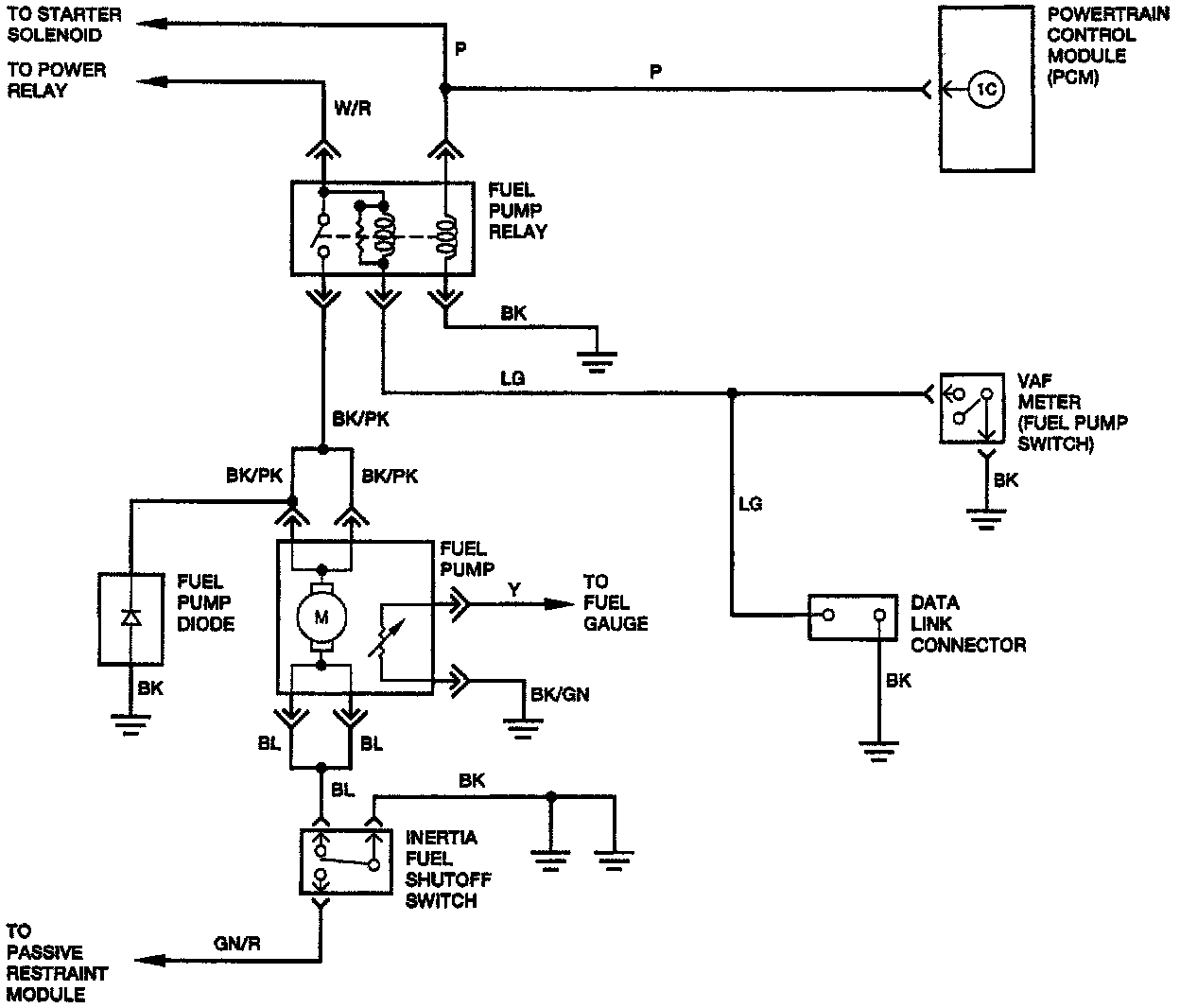

Fuel System Electrical Schematic:

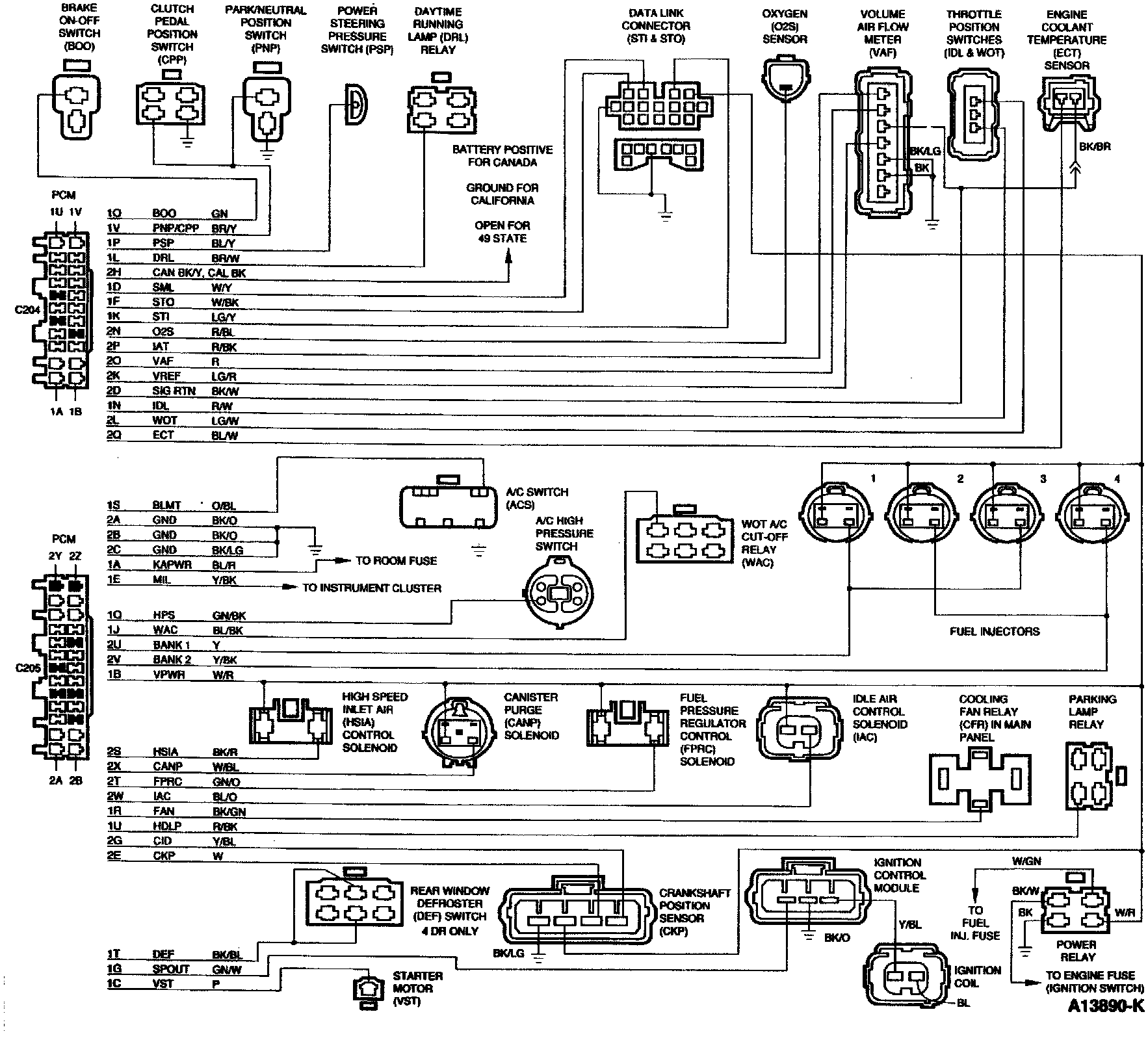

ENGINE CONNECTOR SCHEMATIC

With Manual Transmission

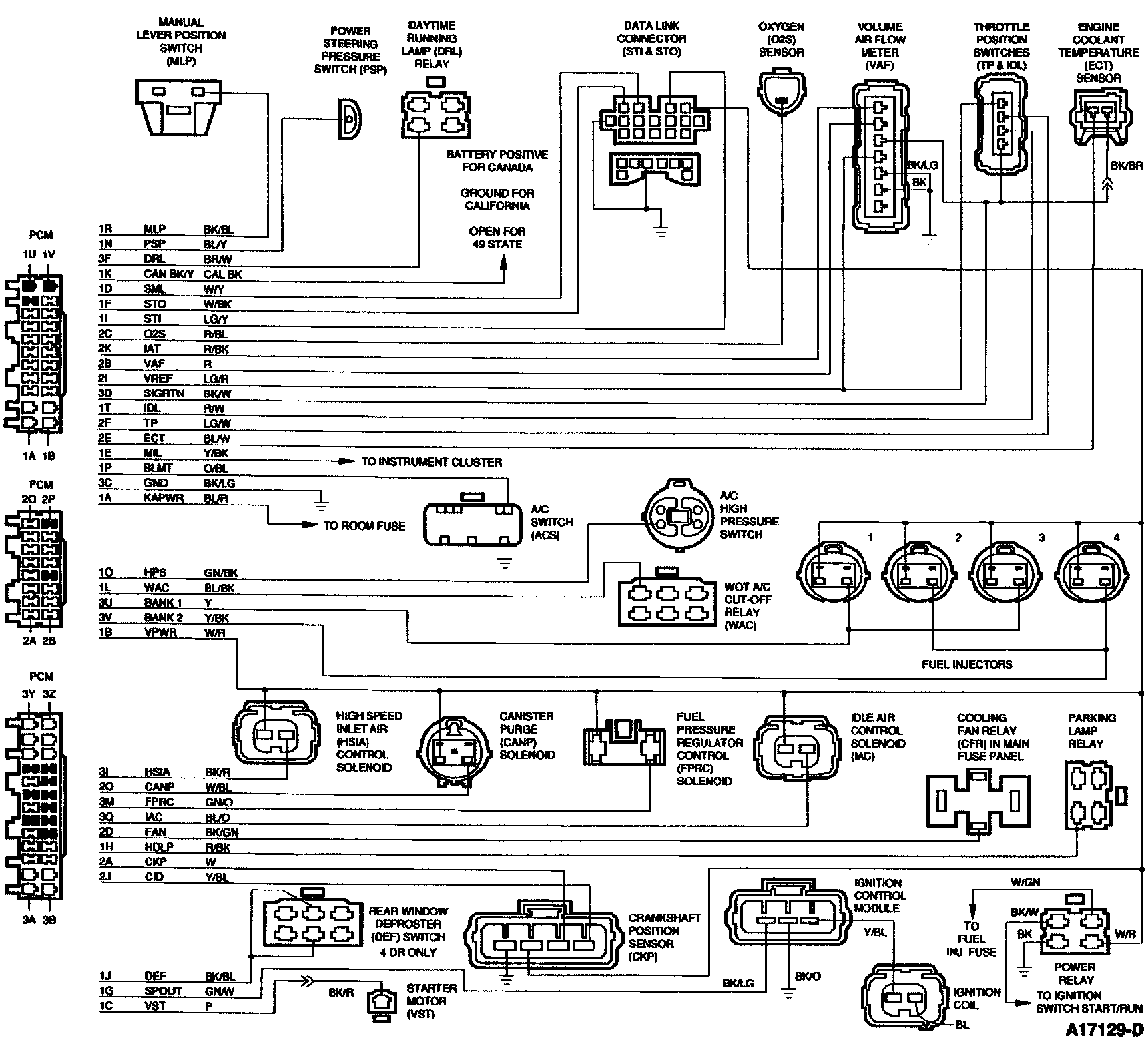

Engine Connector Schematic - MTX:





With Automatic Transmission

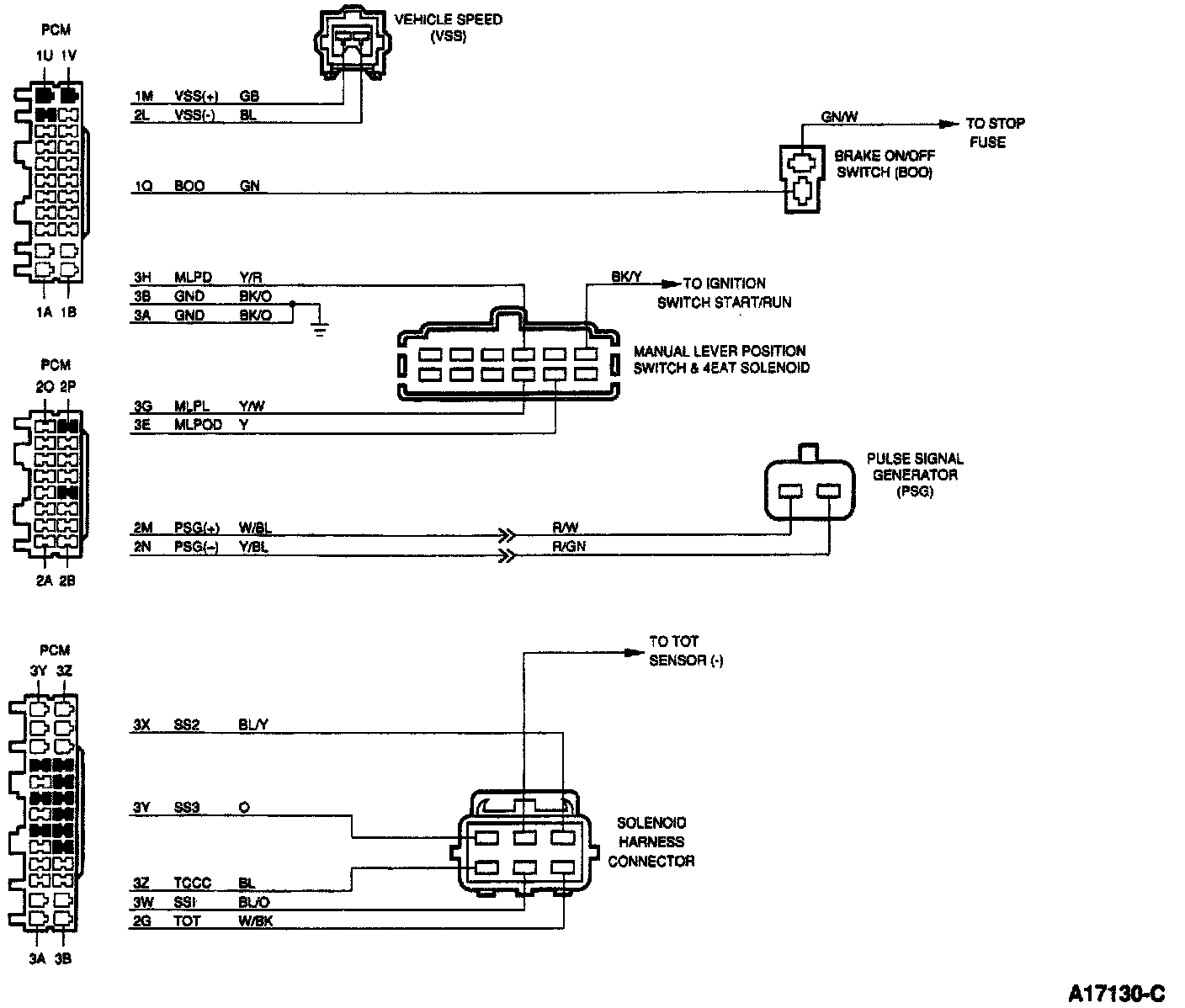

Engine Connector Schematic - ATX (Part 1):





Engine Connector Schematic - ATX (Part 2):
