ABS Main Relay: Diagrams

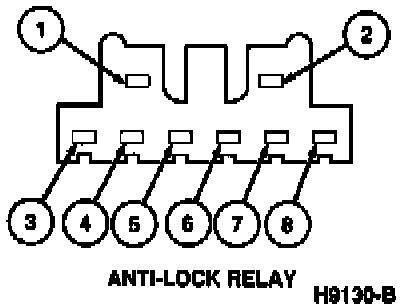

Connector:

Pin Circuit Circuit Function

1 900 (BK/BL) Anti-Lock Relay Power
2 906 (R/Y) Hydraulic Anti-Lock Actuator Assembly
3 50 (BK) Anti-Lock Relay Ground
4 908 (BK/BL) Anti-Lock Brake Control Module
5 950 (BK/O) Fail Safe Relay Power
6 907 (Y) Hydraulic Anti-Lock Actuator Assembly
7 901 (Y/R) Anti-Lock Brake Warning Indicator
8 917 (BL) Anti-Lock Brake Control Module
