Variable Induction Control Actuator: Service and Repair

HSIA Shutter Valve Actuator

REMOVE

1. Remove the plunger retaining clip.

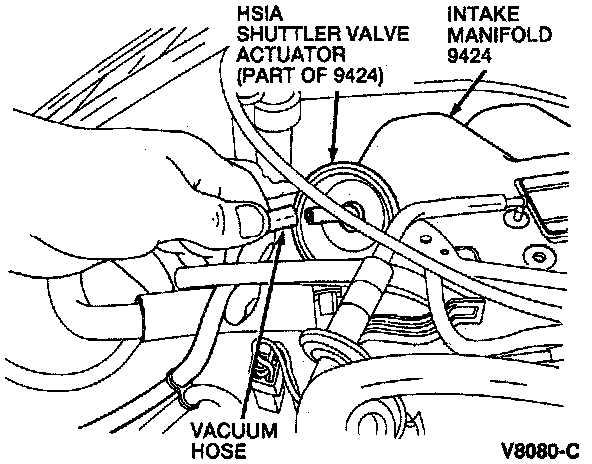

2. Disconnect the High Speed Inlet Air (HSIA) shutter valve actuator vacuum hose.
3. Remove the HSIA shutter valve actuator bolts and remove the actuator.

INSTALL

^ To install, reverse the removal procedure. Tighten the HSIA shutter valve actuator bolts securely.
