Rollover Valve: Service and Repair

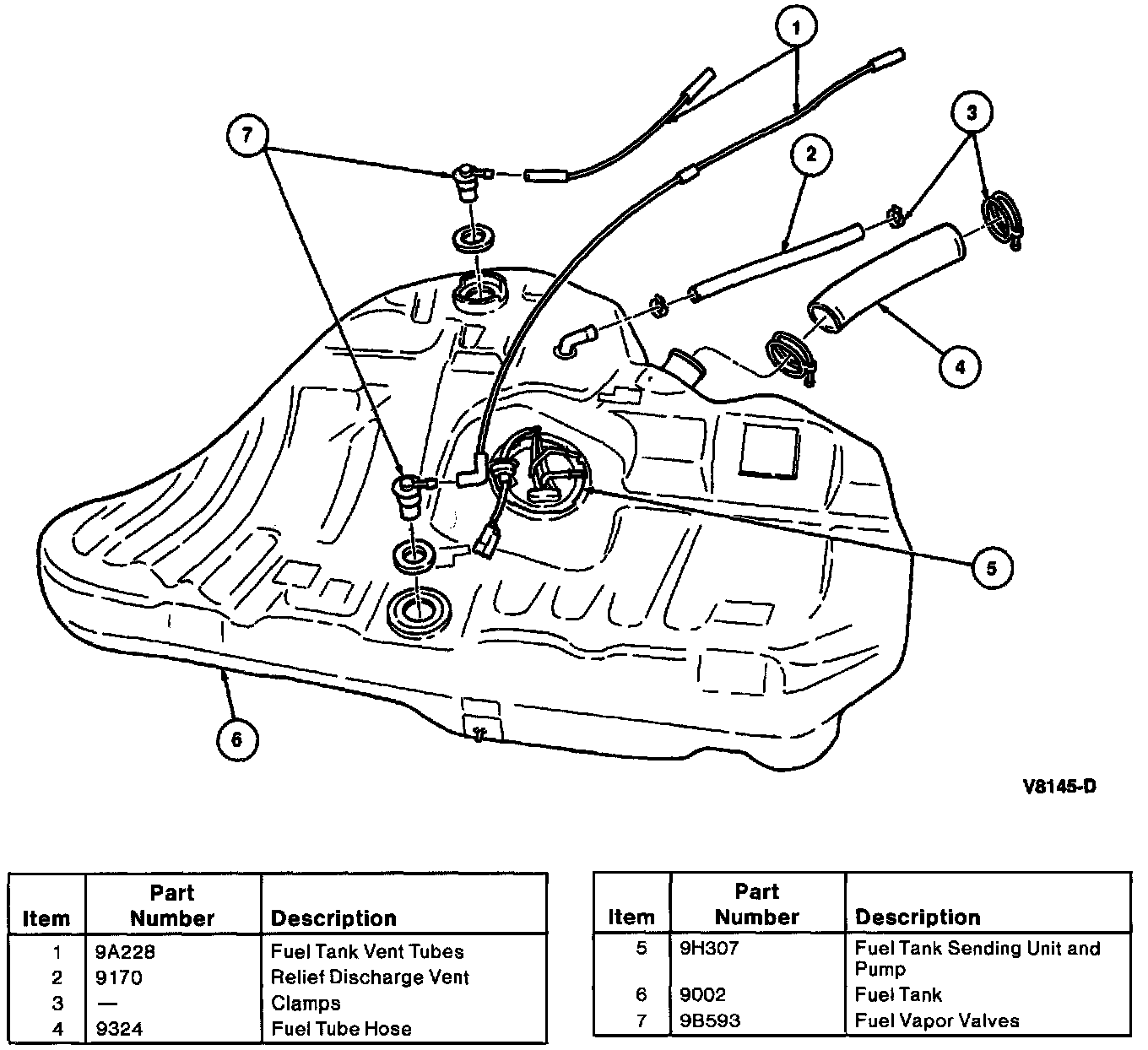

Fuel Tank:

REMOVE

1. Remove the Fuel Tank (9002), Refer to Fuel Tank/Service And Repair. Removal and Installation
2. Remove the fuel Vapor Valves (9B593) from the Fuel Tank.

INSTALL

To install, reverse the removal procedure.
