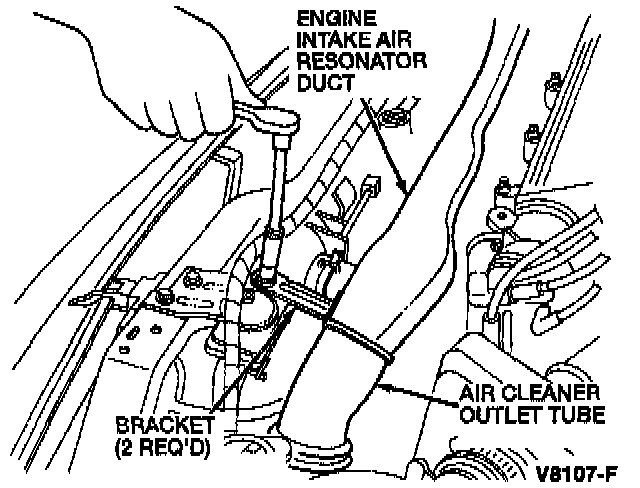

Resonator Duct

Outlet Tube:

REMOVE

1. Remove the nuts from the engine air intake resonator (duct) brackets.
2. Remove the Engine Air Intake Resonator (9F763) (duct).

INSTALL

^ To install, reverse the removal procedure.
^ Tighten the Engine Air Intake Resonator (duct) Bracket nuts to 69-95 in-lb (8-11Nm).
