EV 7 - Check Rollover/Vent Valve Function

Rollover/Vent Valve.:

EV7 CHECK ROLLOVER/VENT VALVE FUNCTION

^ Check the rollover/vent valve for evidence of leakage.

^ Remove the rollover/vent valve.

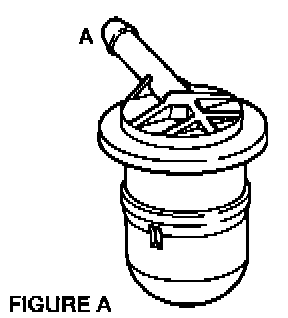

^ Hold the valve as shown in Figure.

^ Blow into port A and verify that air flows through the rollover/vent valve.

^ Invert the valve.

^ Blow into port A and verify that air does not flow through the rollover/vent valve.

^ Does the valve function properly?

YES -- Go to EV 8. EV 8 - Check Vapor Separator Integrity

NO -- Replace the rollover/vent valve.
