Home >> Mercury >> 1994 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> IDM - Ignition Diagnostic Monitor >> IDM - Test Schematic

IDM - Test Schematic

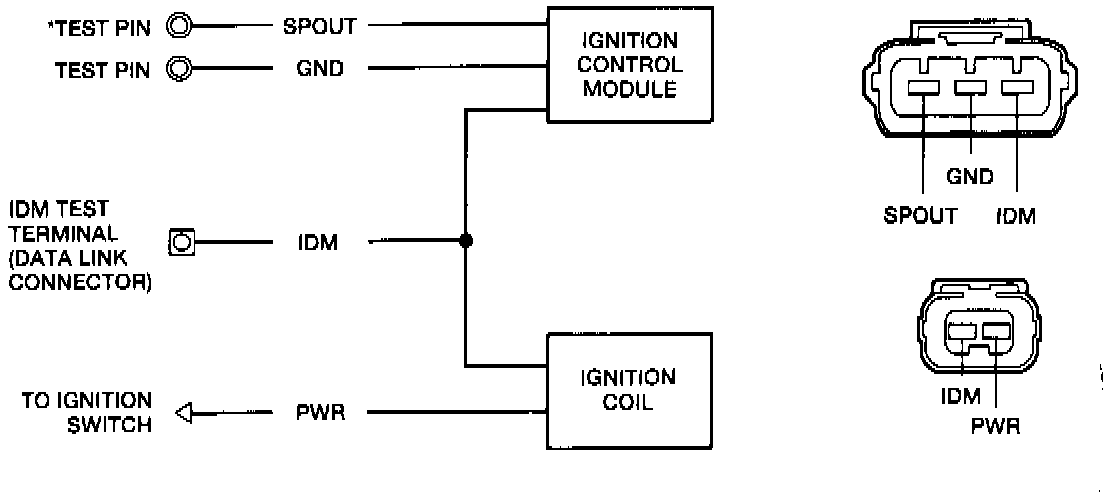

IDM Test Schematic:
