Charge Lamp/Indicator: Testing and Inspection
Test O: Charging System Warning Lamp Inoperative.:

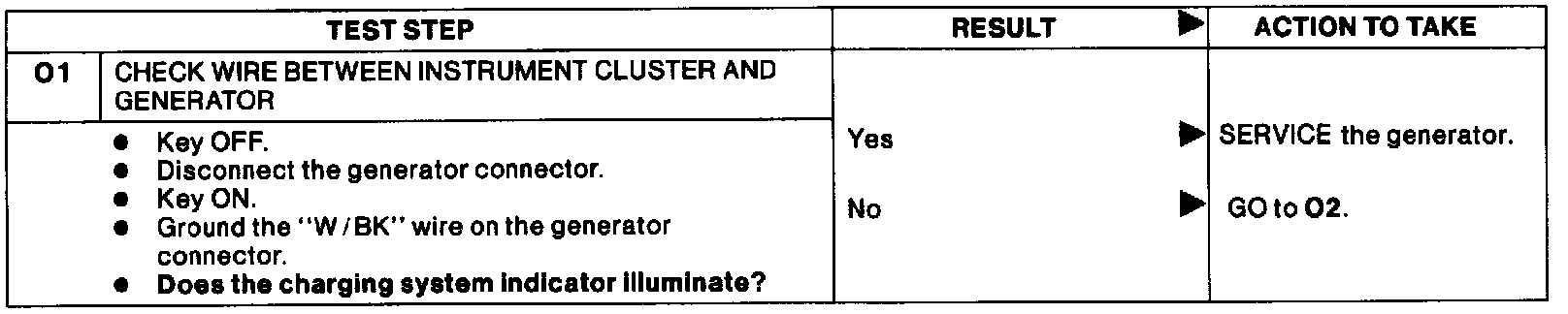

Test O1
Test O: Charging System Warning Lamp Inoperative.:

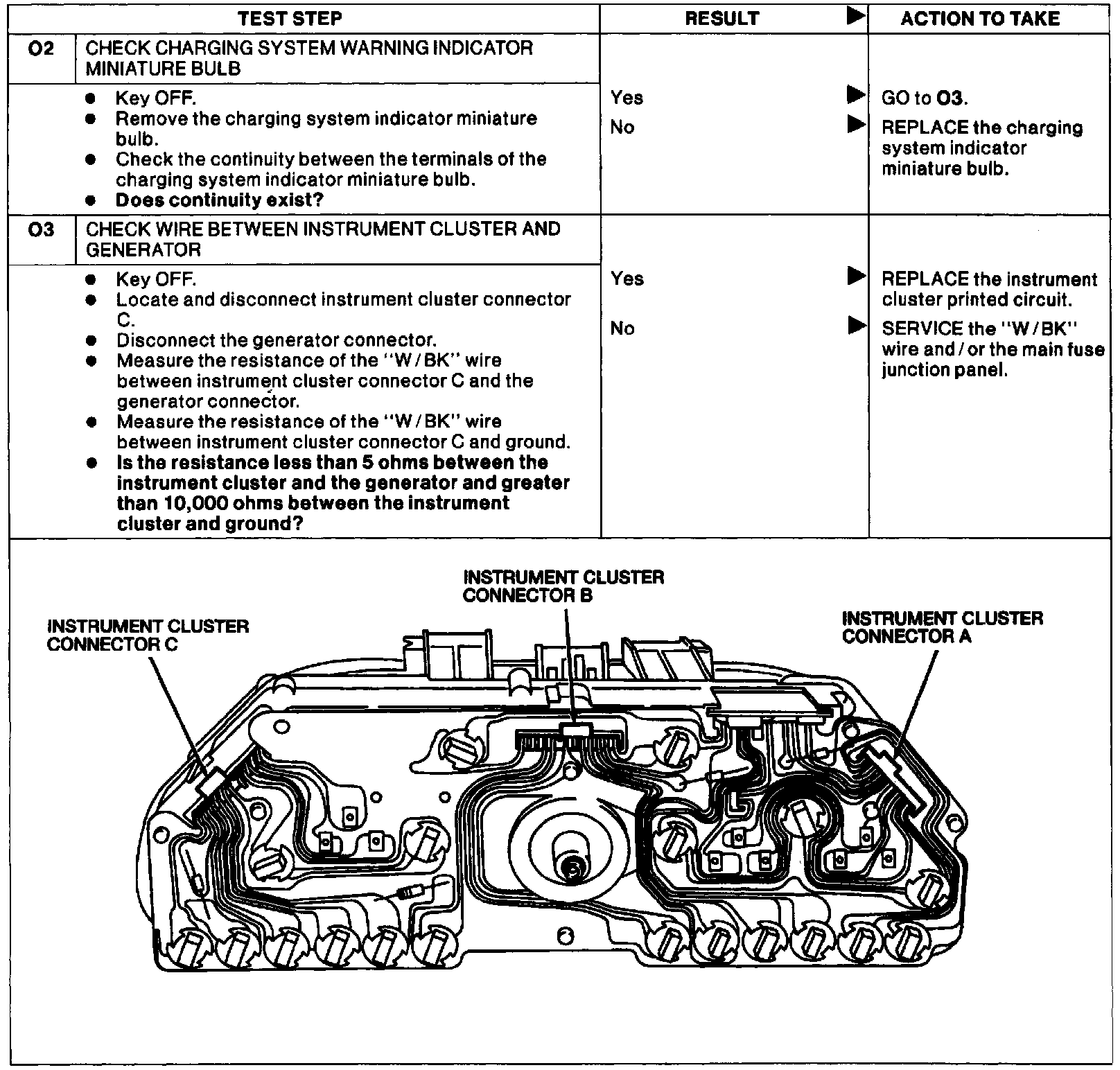

Test O2-O3
