Home >> Mercury >> 1994 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Lamps and Indicators - Cooling System >> Temperature Gauge >> Testing and Inspection >> Pinpoint Tests >> Reads Inaccurately

Reads Inaccurately

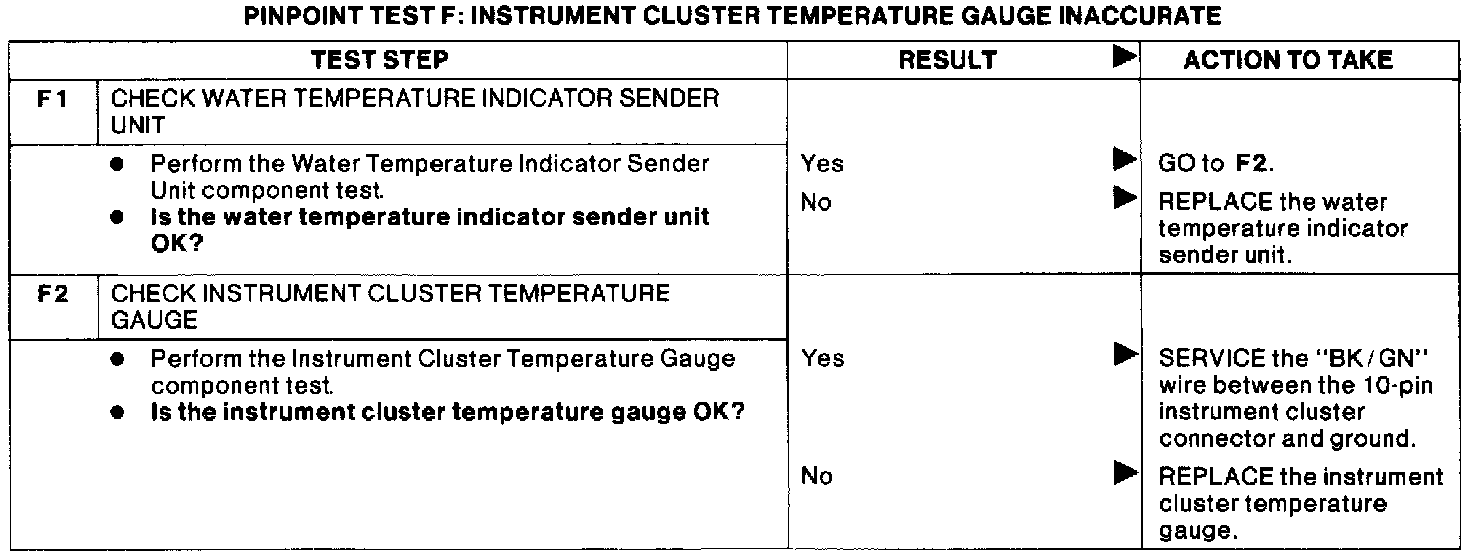

Test E: Coolant Temperature Always Reads Inaccurately.:





Test F1-F2
