Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Lamps and Indicators - Cooling System
>>
Temperature Gauge
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Always Reads Cold
Always Reads Cold
Test E: Coolant Temperature Always Reads Cold.:
Test E1-E2

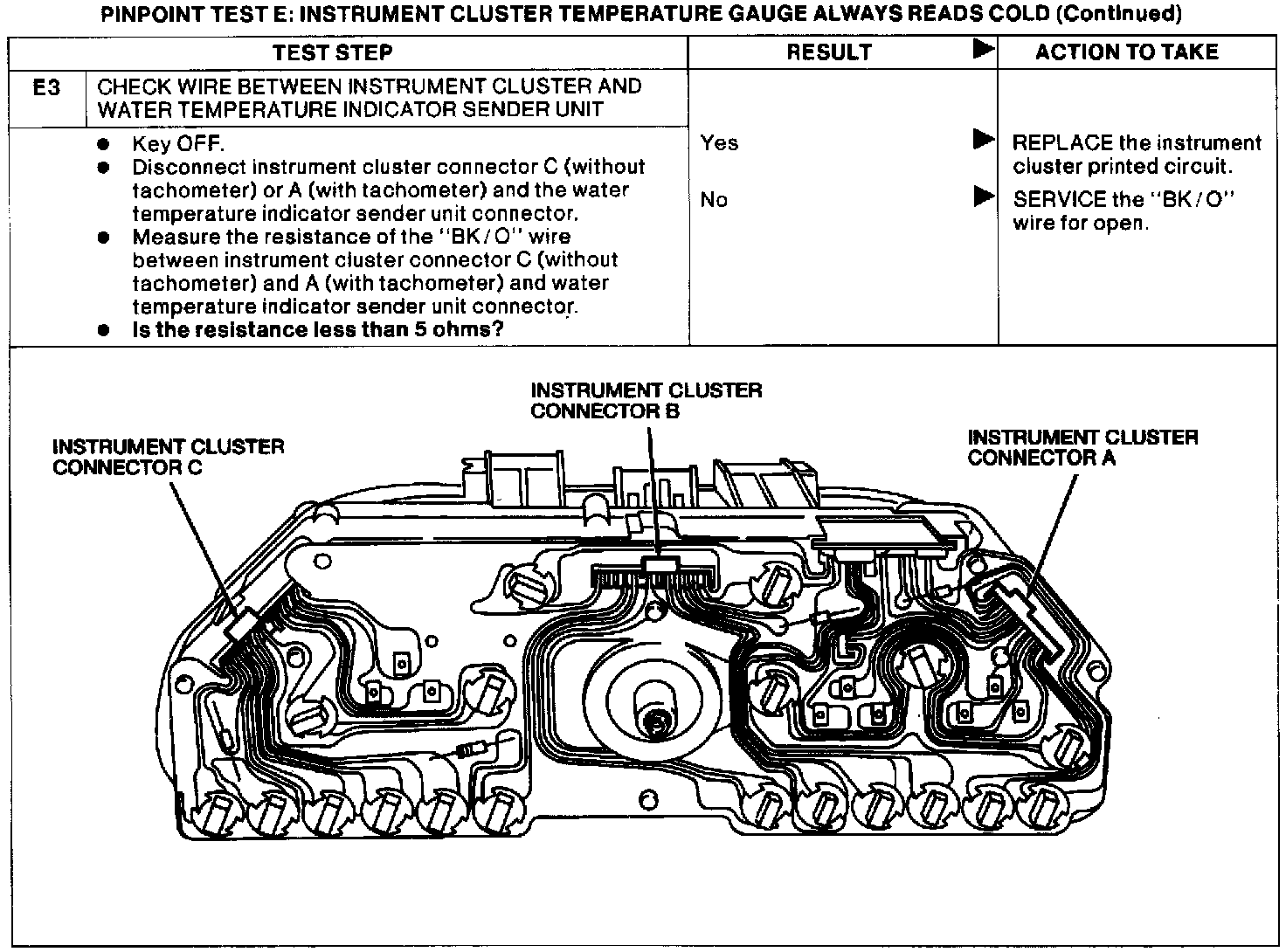

Test E: Coolant Temperature Always Reads Cold.:
Test E3
