Home >> Mercury >> 1994 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Valve Body, A/T >> Main Control Valve Body

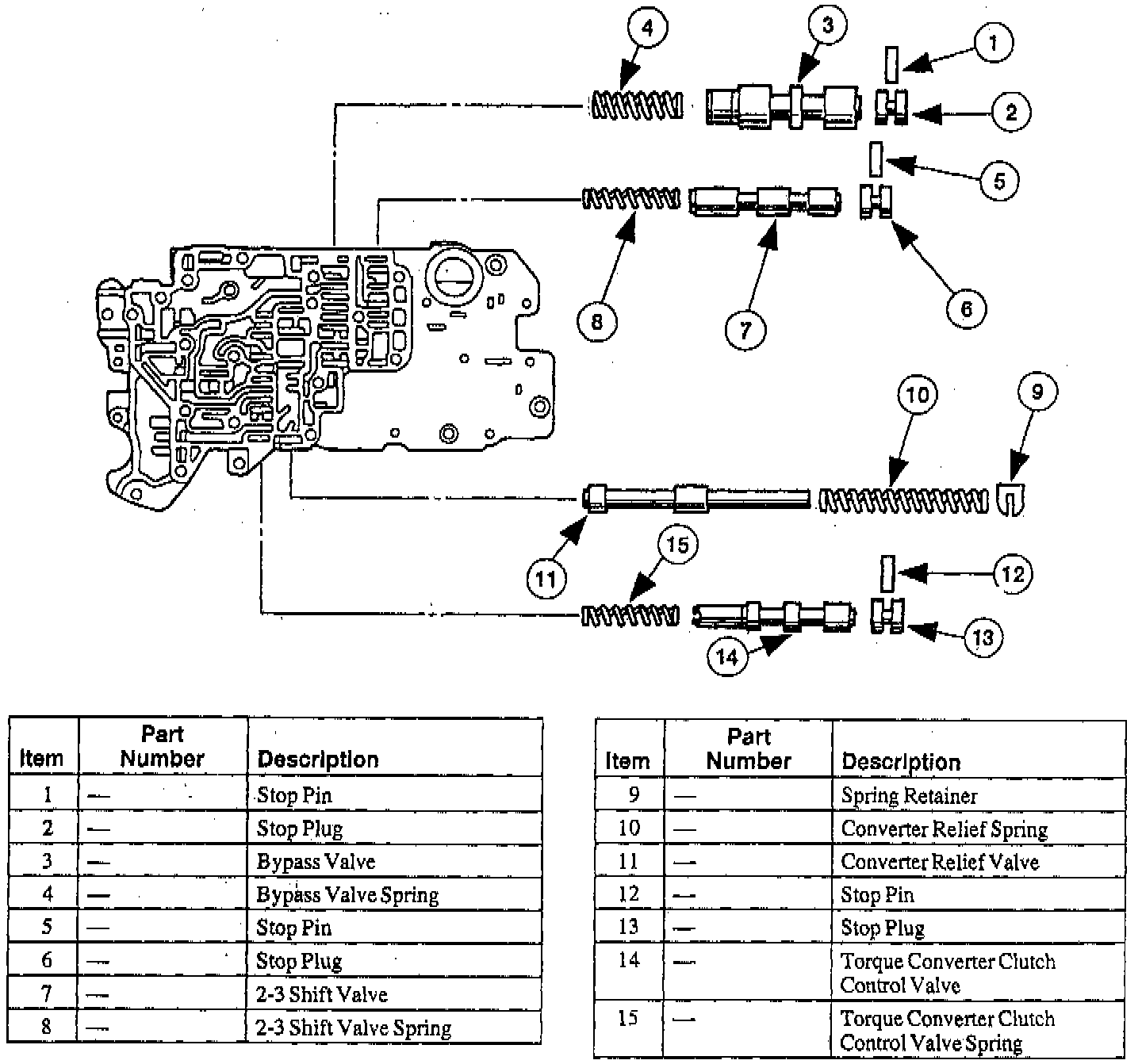

Main Control Valve Body
