Engine Controls

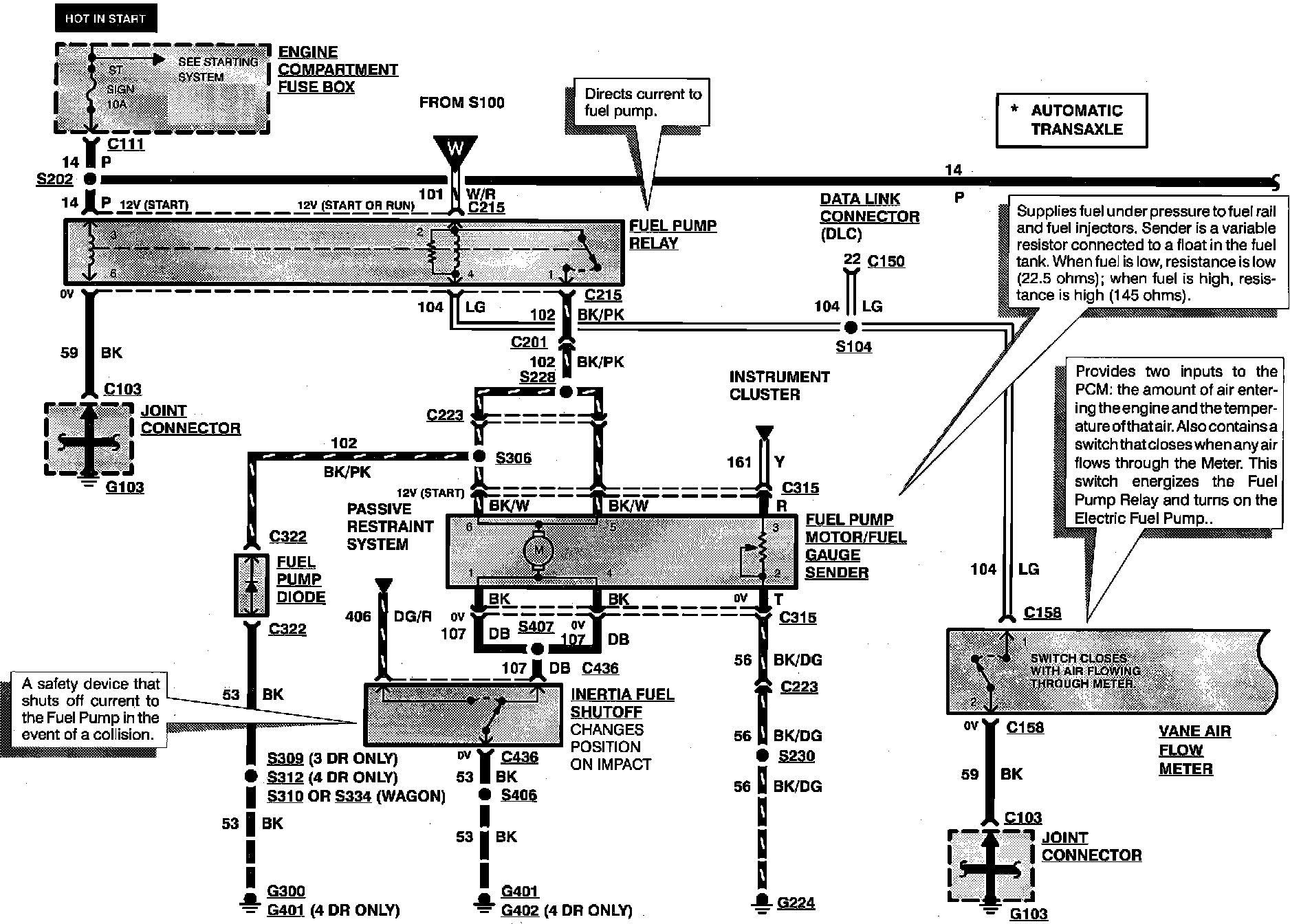

Engine Controls:

DATA LINK CONNECTOR
FUEL PUMP DIODE
FUEL PUMP MOTOR/FUEL GAUGE SENDER
FUEL PUMP RELAY
INERTIA FUEL SHUTOFF
VANE AIR FLOW METER

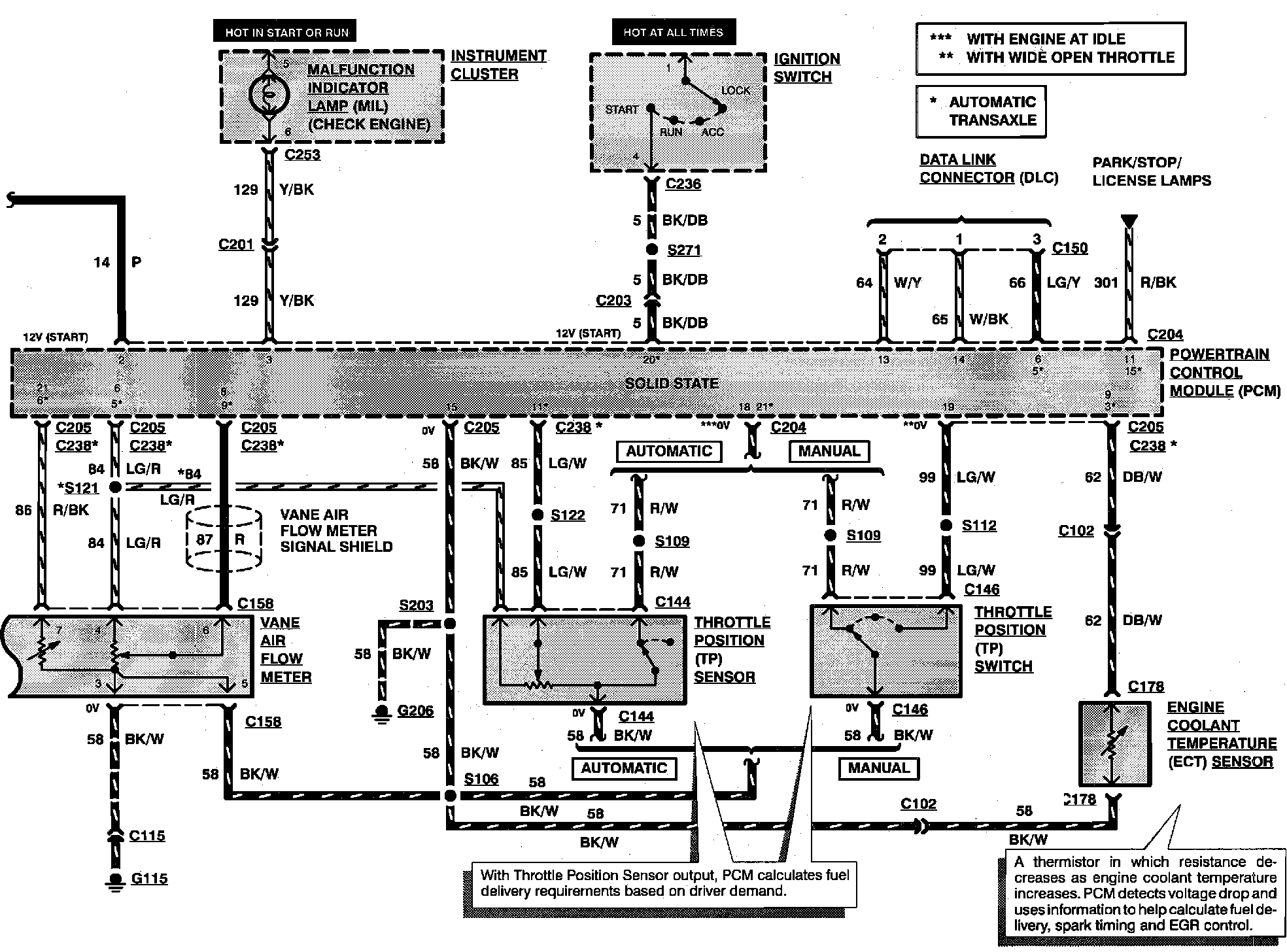

Engine Controls:

DATA LINK CONNECTOR
ENGINE COOLANT TEMPERATURE SENSOR
THROTTLE POSITION SENSOR
THROTTLE POSITION SWITCH
VANE AIR FLOW METER

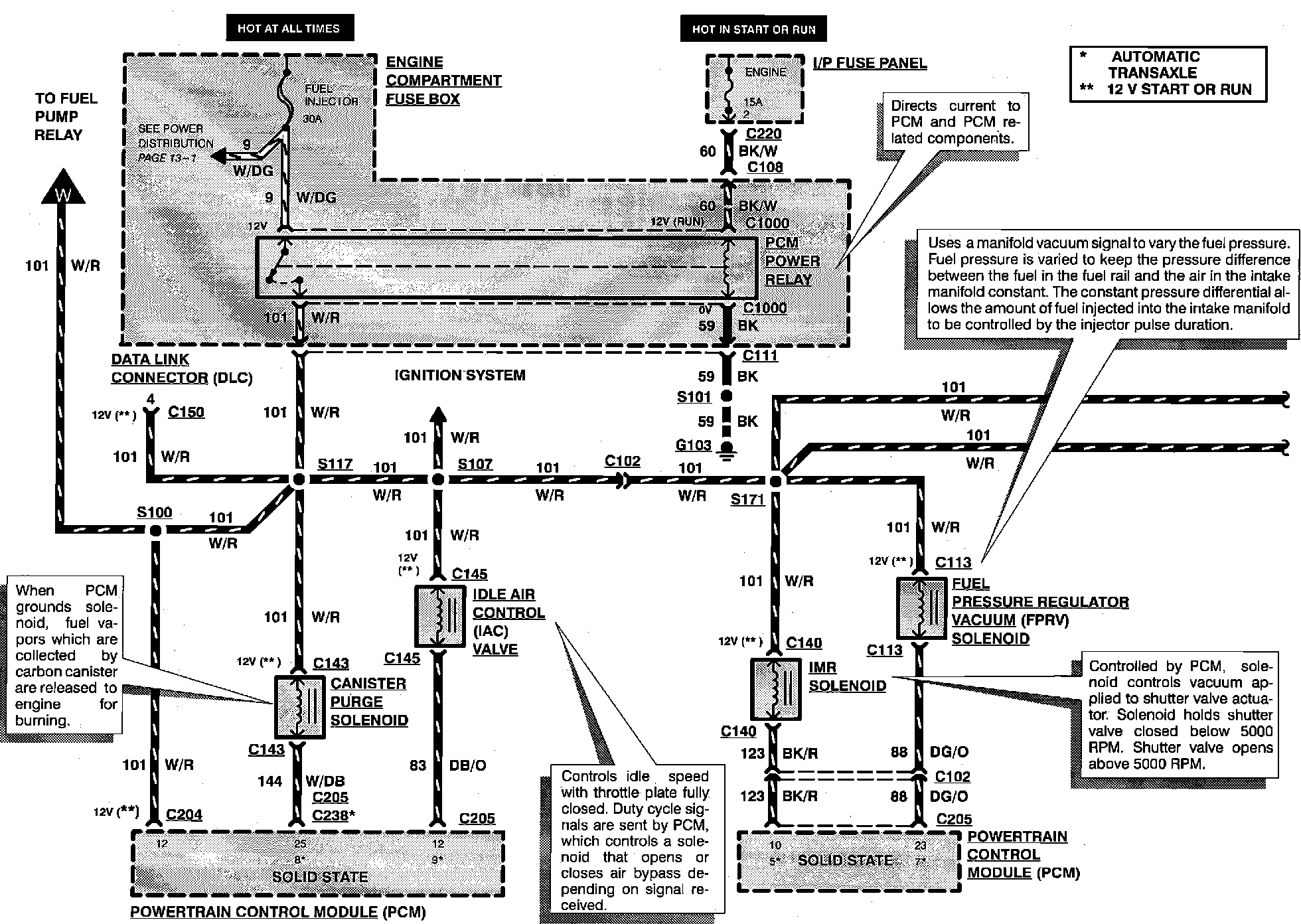

Engine Controls:

CANISTER PURGE SOLENOID
DATA LINK CONNECTOR
FUEL PRESSURE REGULATOR VACUUM SOLENOID
IDLE AIR CONTROL VALVE
IMR SOLENOID

Engine Controls:

DATA LINK CONNECTOR
FUEL INJECTORS
OXYGEN SENSOR
POWER STEERING SWITCH

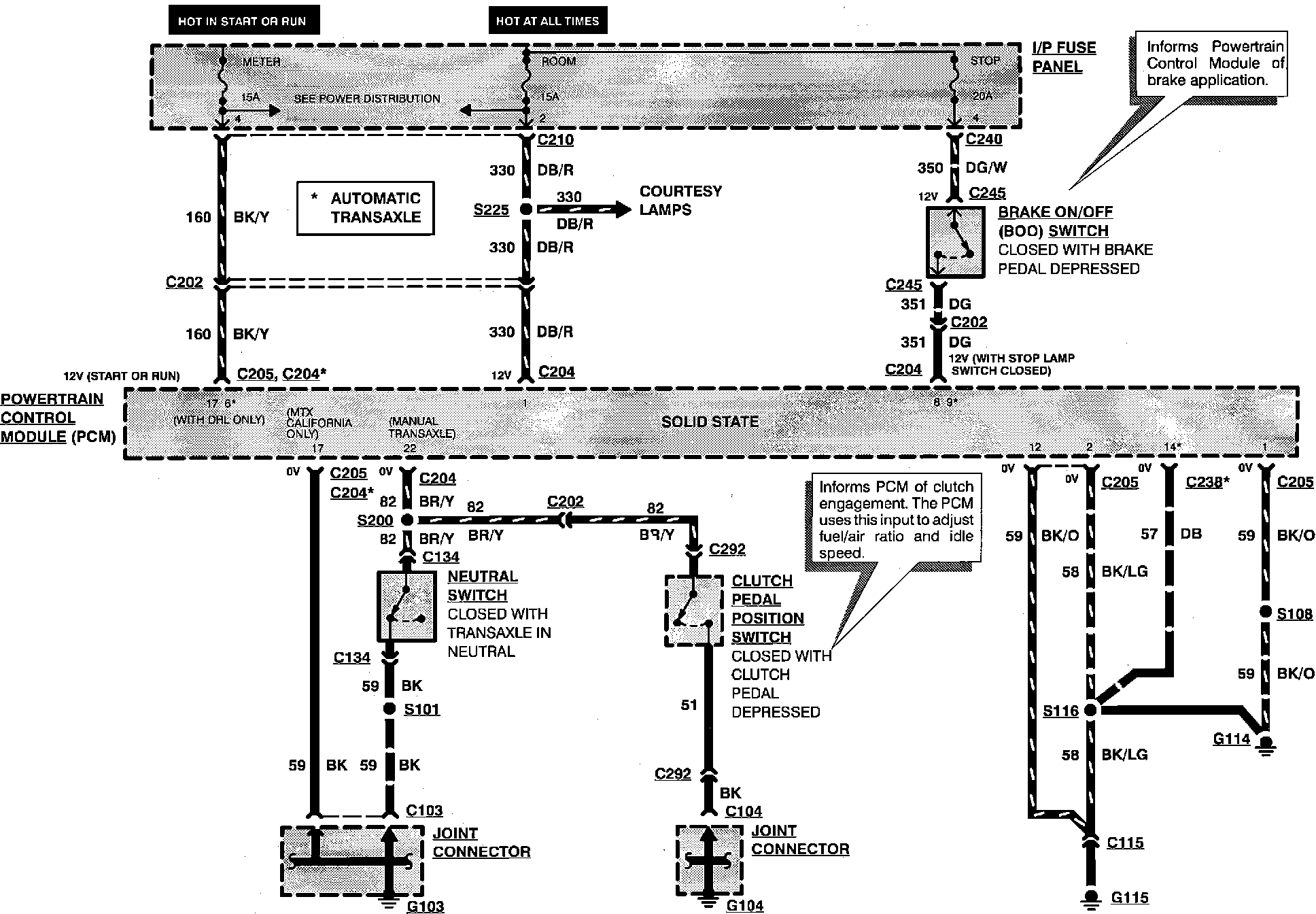

Engine Controls:

BRAKE ON/OFF SWITCH
CLUTCH PEDAL POSITION SWITCH
NEUTRAL SWITCH

Engine Controls:
