Fuse ENGINE

Fuse Engine - protects the following circuits:
^ Cooling Fans
^ Engine Controls

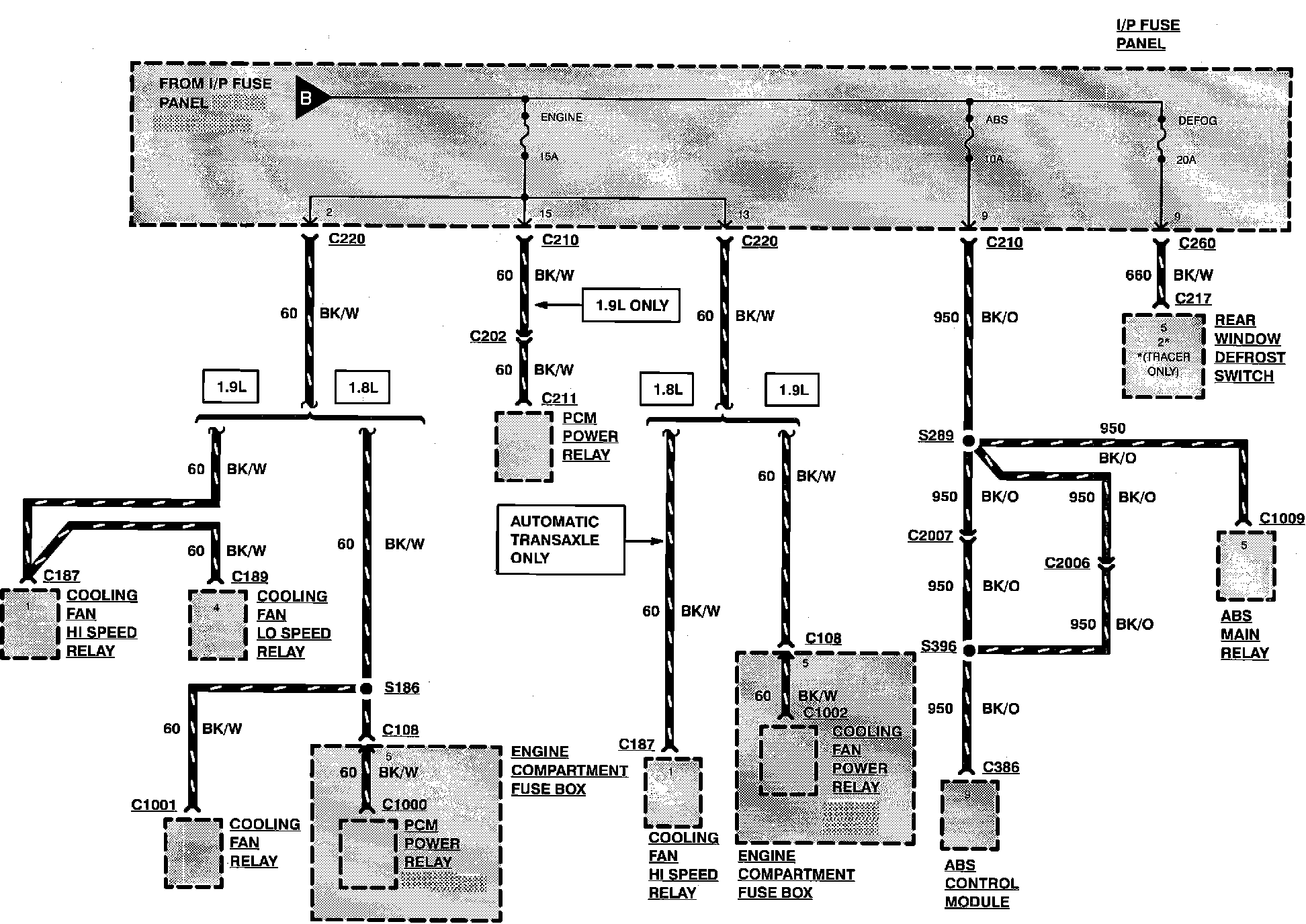

Power Distribution:
