Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Power Distribution
>>
Engine Compartment Fuse Panel
>>
Fuse Circuits
>>

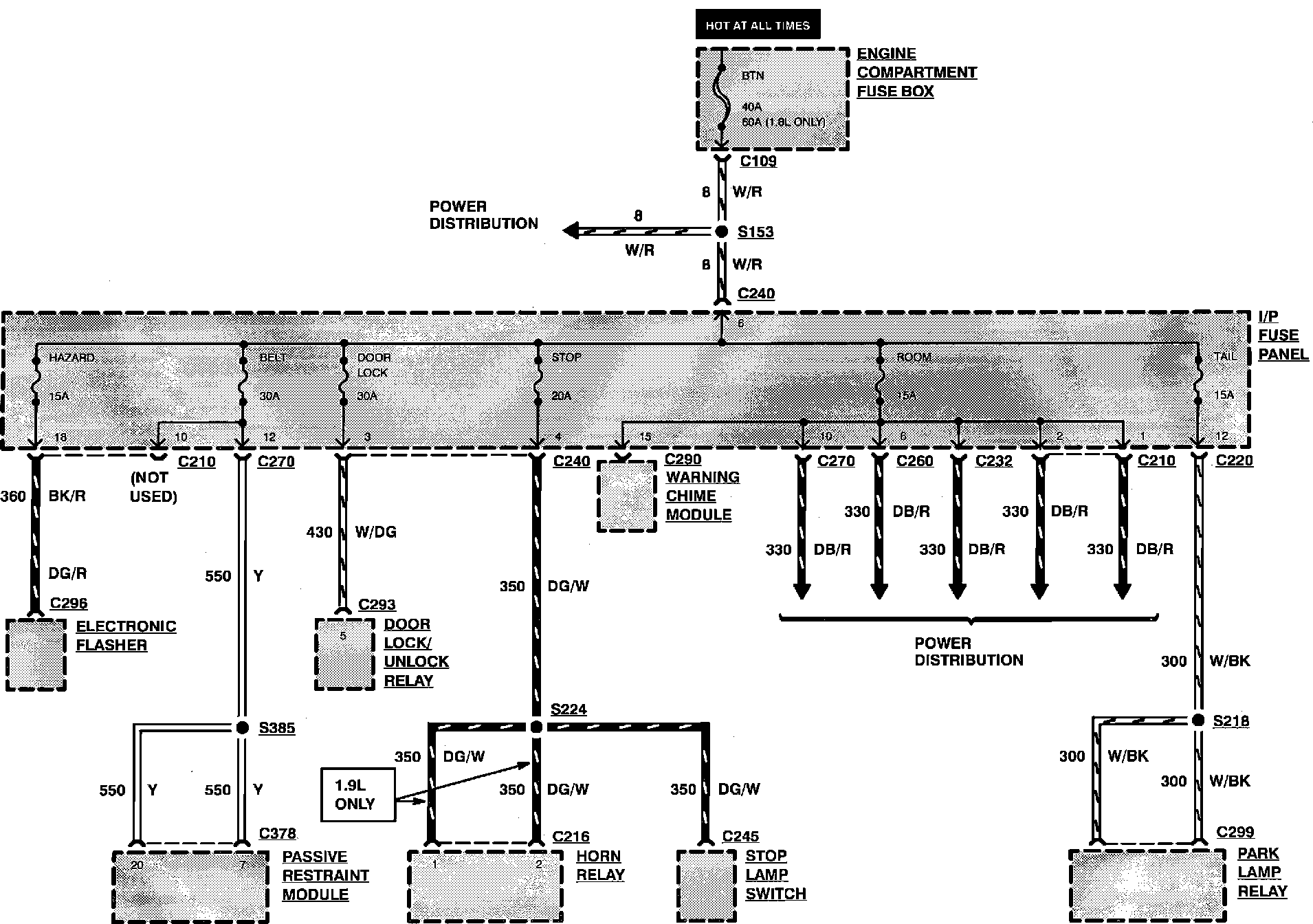

Fuse BTN
Fuse BTN
Fuse BTN -
protects the following circuits:
^
Hazard
^
Belt
^
Door Lock
^
Stop
^
Room and Tail Fuses
^
Horn Fuse
Power Distribution:
Power Distribution:
