Home >> Mercury >> 1994 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Diagram

System Diagram

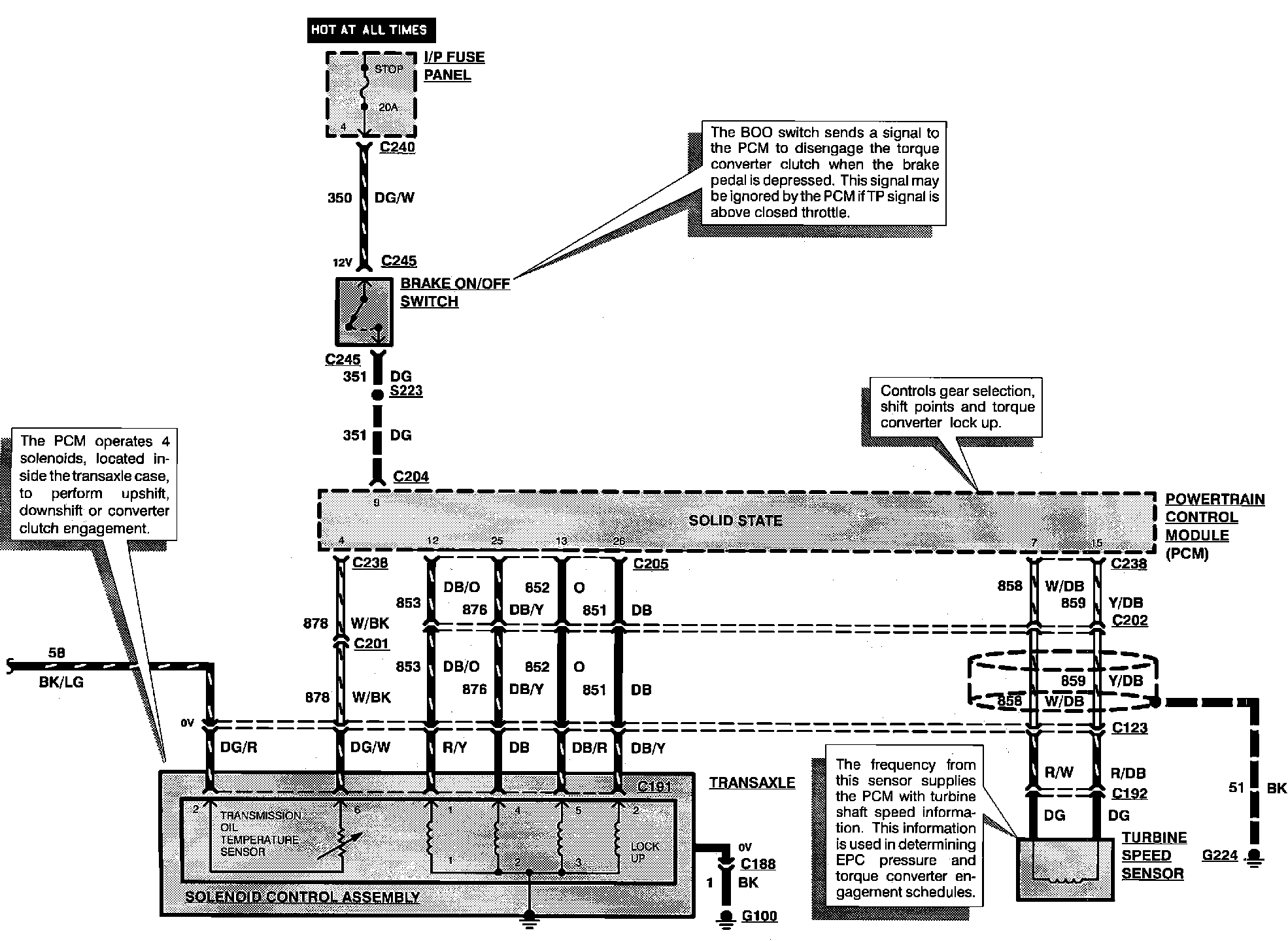

Electronic Automatic Transaxle:



Electronic Automatic Transaxle:
