Hydraulic Control Assembly - Antilock Brakes

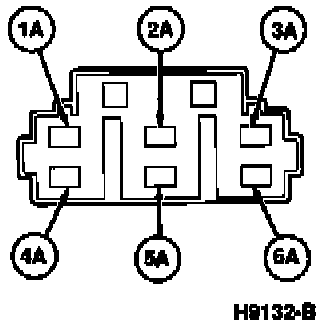

Connector:

Pin Circuit Circuit Function

1A 907A (Y) Rear Solenoid Power
2A 904 (Y/BL) Left Front Solenoid Control
3A 902 (BR) Left Rear Solenoid Control
4A 907B (Y) Front Solenoid Power
5A 905 (BL/O) Right Front Solenoid Control
6A 903 (PK) Right Rear Solenoid Control

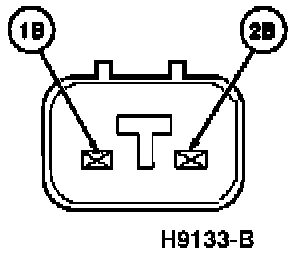

Connector:

Pin Circuit Circuit Function

1B 50 (BK) Motor Control
2B 906 (R/Y) Motor Ground
