Diagnostic Connector - ABS

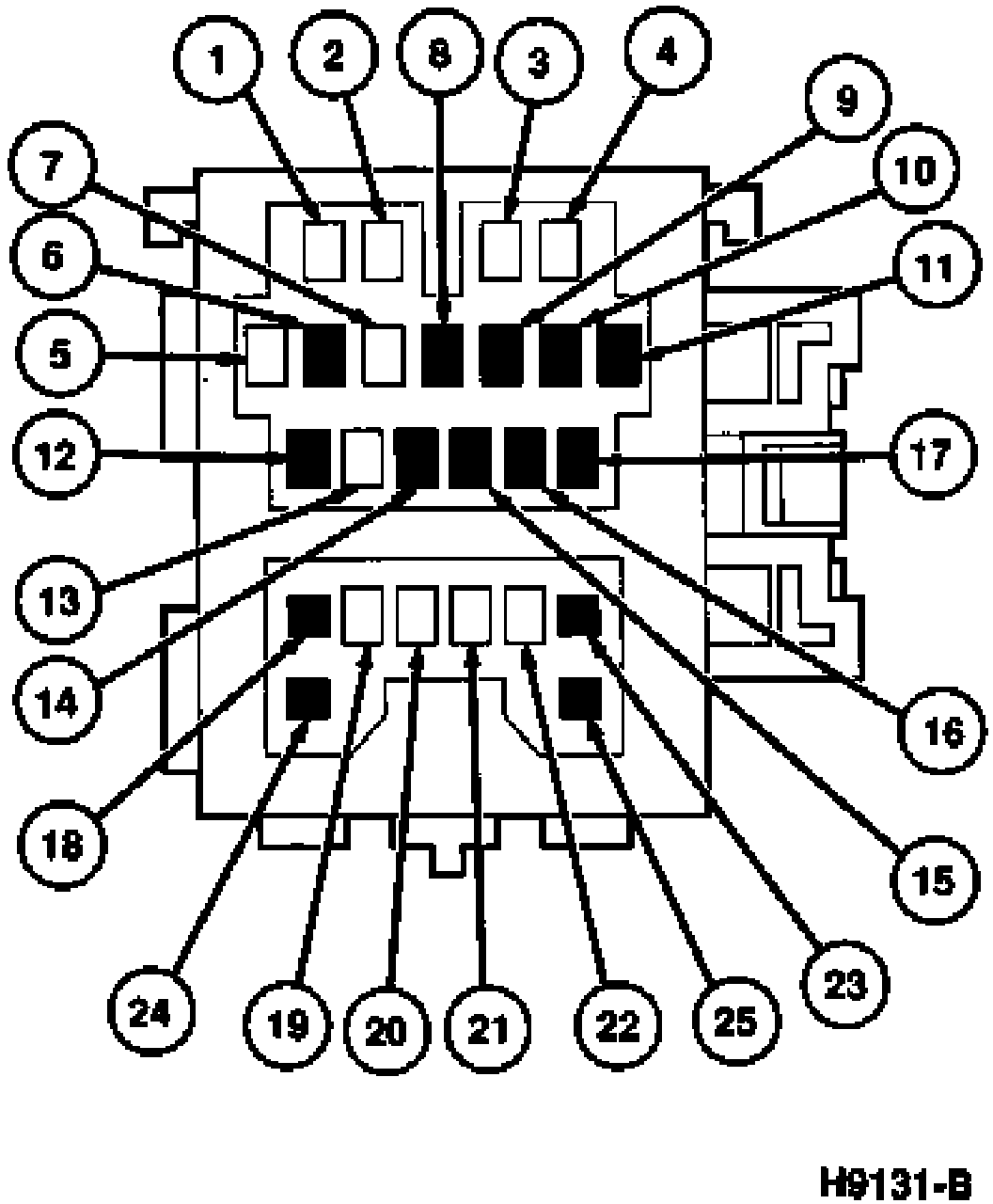

Data Link Connector:

Pin Circuit Circuit Function

1 65 (W/BK) (FEN) PCM Self-Test Output
2 64 (W/Y) (MEN) Switch Monitor Indicator
3 66 (LG/Y) (TEN) PCM Self-Test Input
4 101 (W/R) (+B) Battery Voltage
5 59 (BK) (GND) Ground
6 -- NOT USED
7 926 (W/GN) (FBS) Anti-Lock Brakes Self-Test Output
8 -- NOT USED
9 -- NOT USED
10 -- NOT USED
11 -- NOT USED
12 -- NOT USED
13 924 (GY) (TBS) Anti-Lock Brakes Self-Test Input
14 -- NOT USED
15 -- NOT USED
16 -- NOT USED
17 -- NOT USED
18 -- NOT USED
19 73 (Y/BL) (IG-) Tachometer Signal
20 59 (BK) (GND) Ground
21 713 (BK/GN) (TFA) High Cooling Fan Relay
22 104 (LG) (F/P) Fuel Pump Relay
23 -- NOT USED
24 -- NOT USED
25 -- NOT USED
