A: Speed Control Inoperative

Test A: Speed Control Inoperative.:

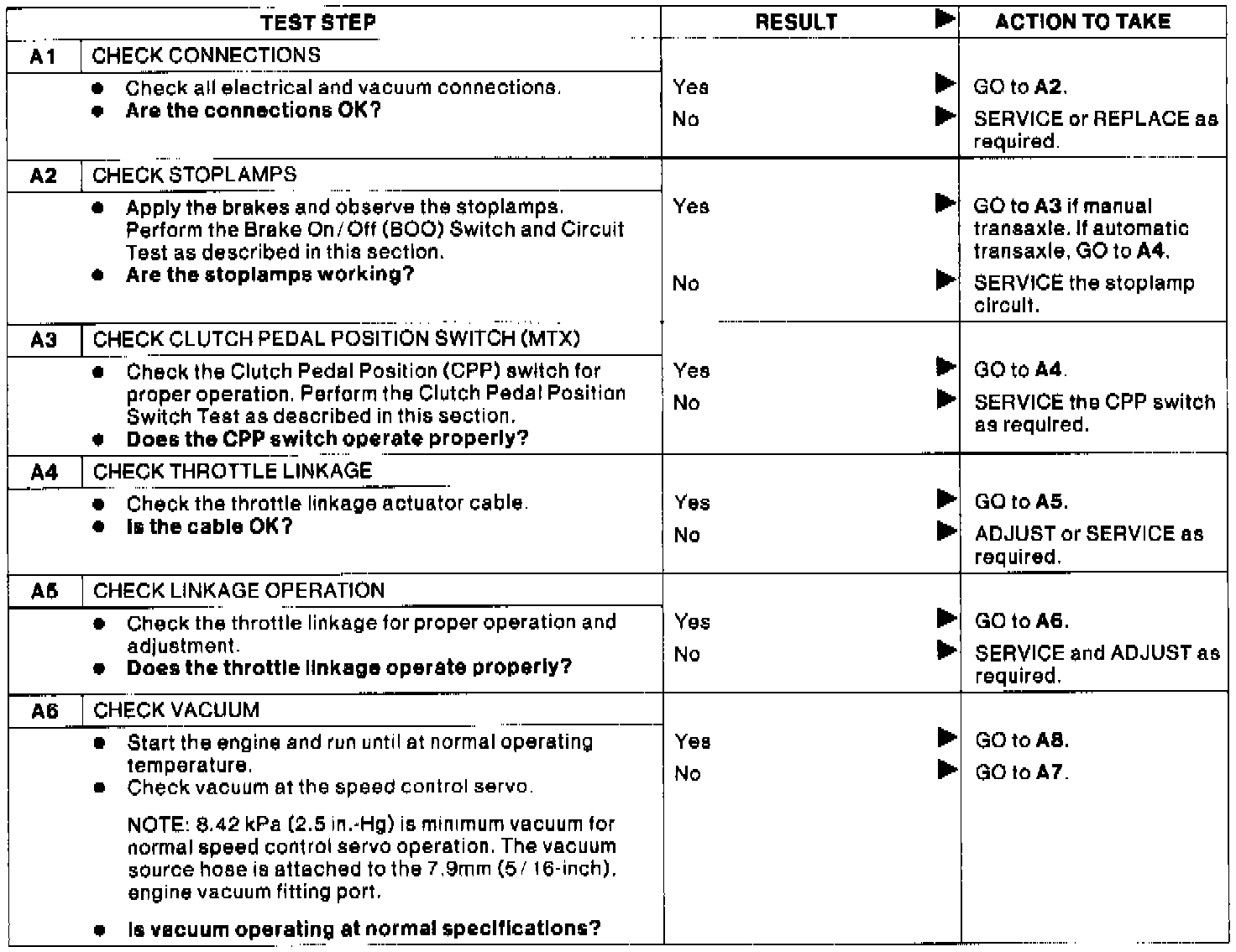

Test A1-A6

Test A: Speed Control Inoperative.:

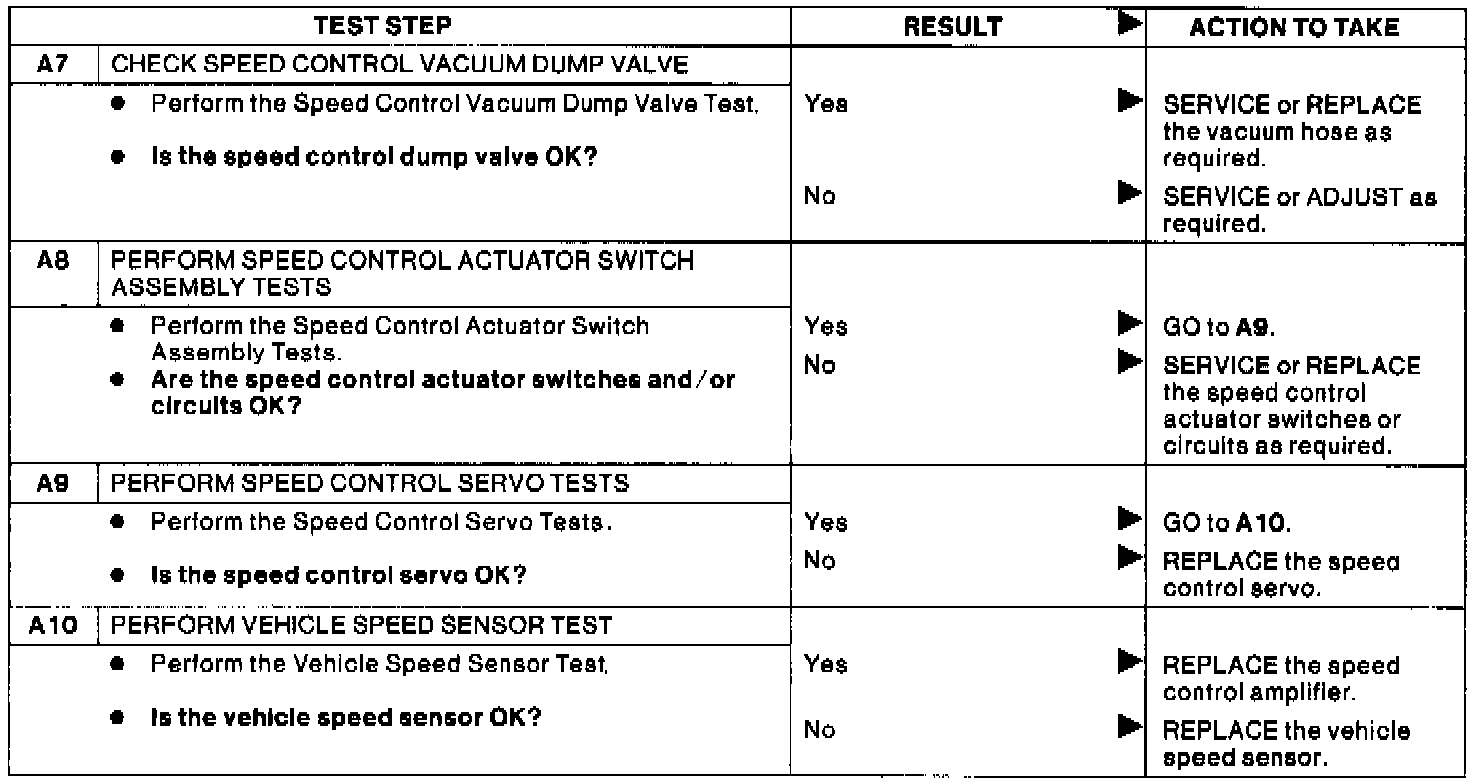

Test A7-A10
