Front

1. Disconnect battery ground cable.
2. If necessary, remove battery for access to lefthand front anti-lock sensor electrical connector and grommet.
3. Disconnect electrical connector, then pinch sides of grommet and push grommet through shock tower hole.
4. Raise and support vehicle, then remove wheel and tire assembly.
5. Remove wiring harness clip from bracket on wheel well, then the upper wiring harness bracket from wheel well bracket.
6. Remove wiring harness clip from front shock absorber bracket, then the lower wiring harness bracket from front shock absorber bracket.

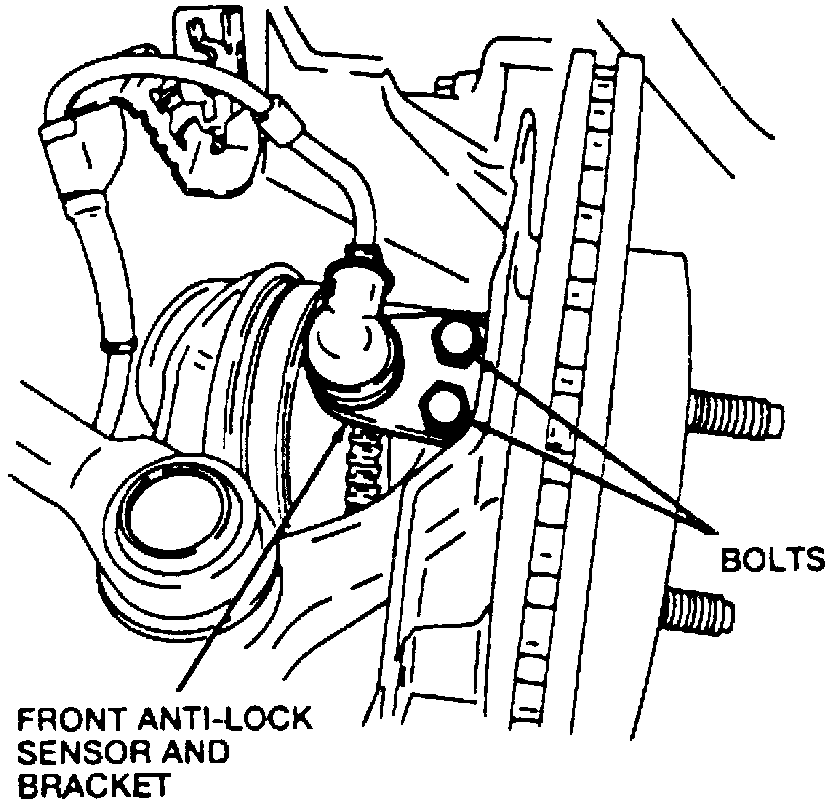

Fig. 68 Front Brake Anti-Lock Sensor Removal:

7. Remove two anti-lock sensor bolts, then the sensor and bracket.
8. Reverse procedure to install. Torque sensor bolts to 12-17 ft lb.
9. Torque wheel nuts to 65-87 ft lb.
