Sunroof / Moonroof Switch: Testing and Inspection

COMPONENT TESTING PROCEDURE

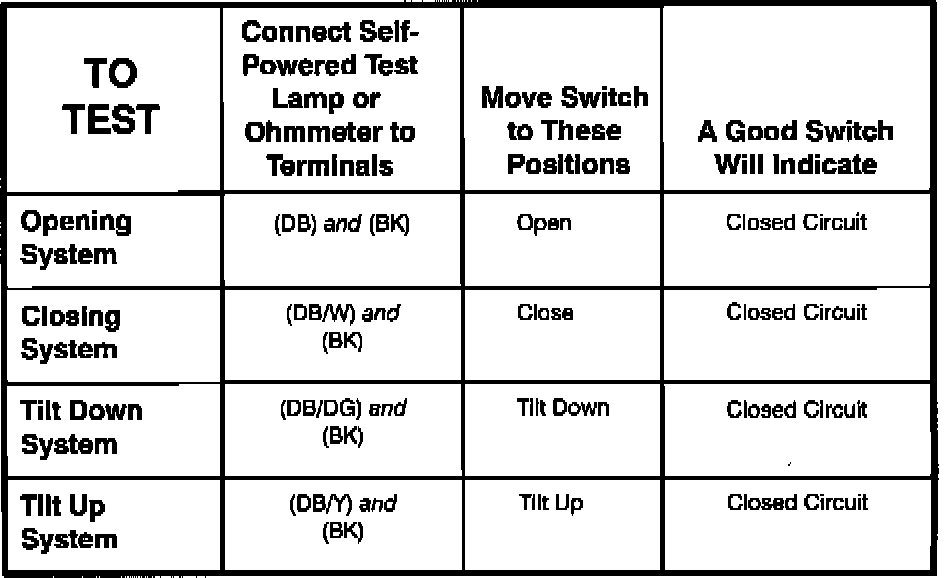

Component Testing Procedure:

TERMINAL LOCATIONS

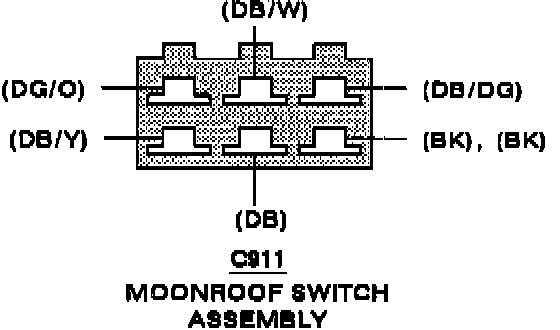

Moonroof Switch Assembly Terminal Locations:

SCHEMATIC

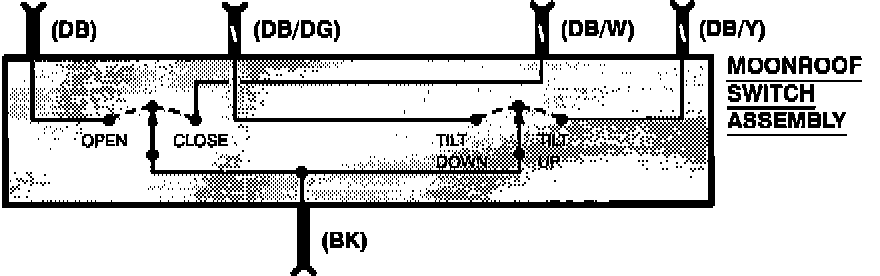

Schematic:
