Home >> Mercury >> 1994 >> Topaz V6-182 3.0L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> Test C

Test C

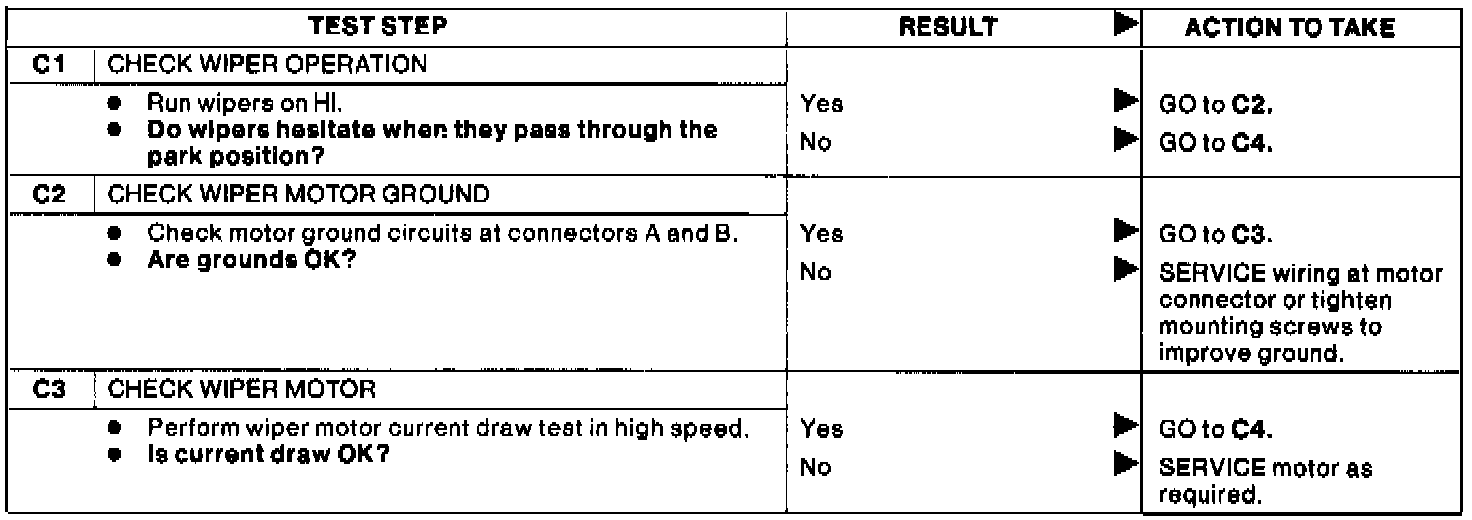

Test C: Windsheild Wipers Inoperative Or Erratic On Low, High Speed Works:





Test C1-C3

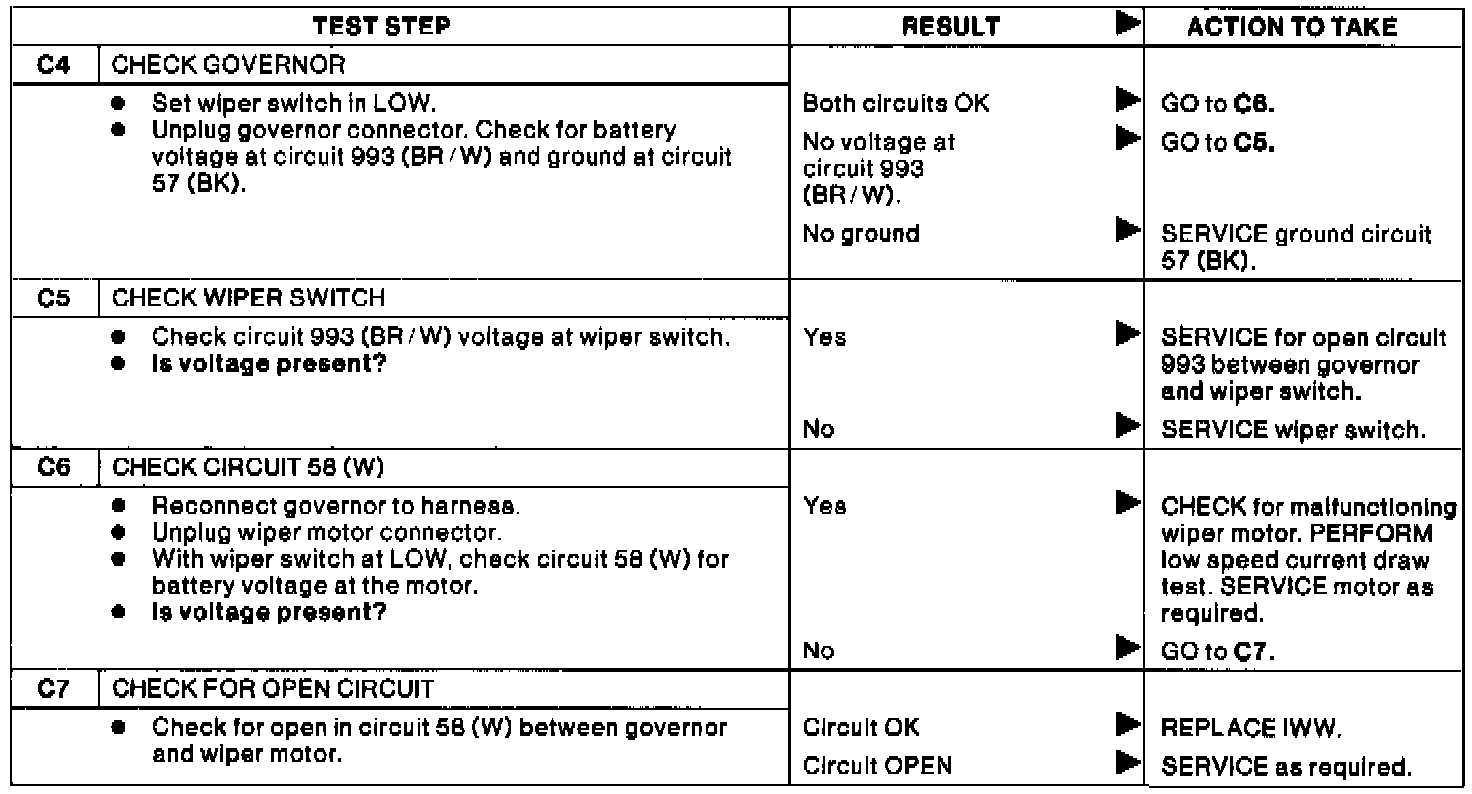

Test C: Windsheild Wipers Inoperative Or Erratic On Low, High Speed Works:





Test C4-C7
