Current Draw Test

1. Disconnect wiper motor linkage.
2. Disconnect wiper motor electrical connector.

Wiper Motor Current Draw Test:

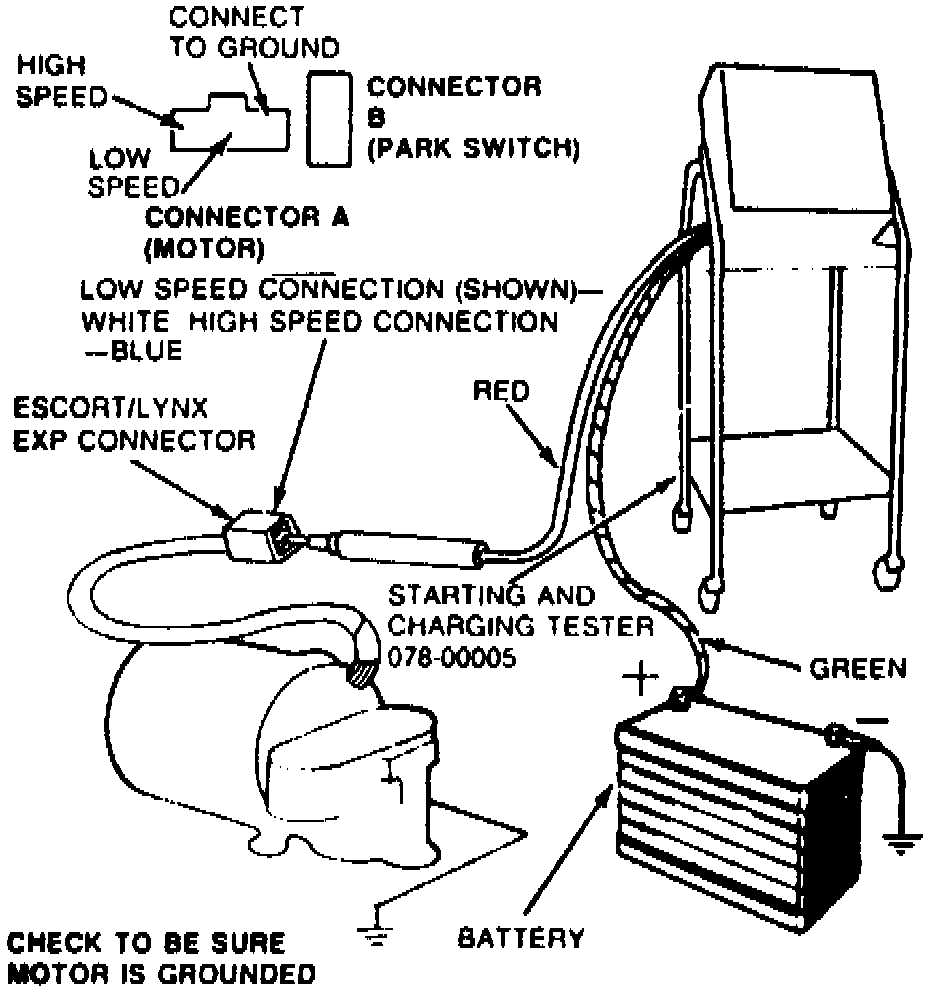

3. Make test connections as shown. Alternately connect red test lead to wiper motor low and high speed connectors.
4. Current draw at either terminal should not exceed 3 amps.
