Home >> Mercury >> 1994 >> Topaz V6-182 3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Clutch >> Testing and Inspection >> With Cable Operated Clutch

With Cable Operated Clutch

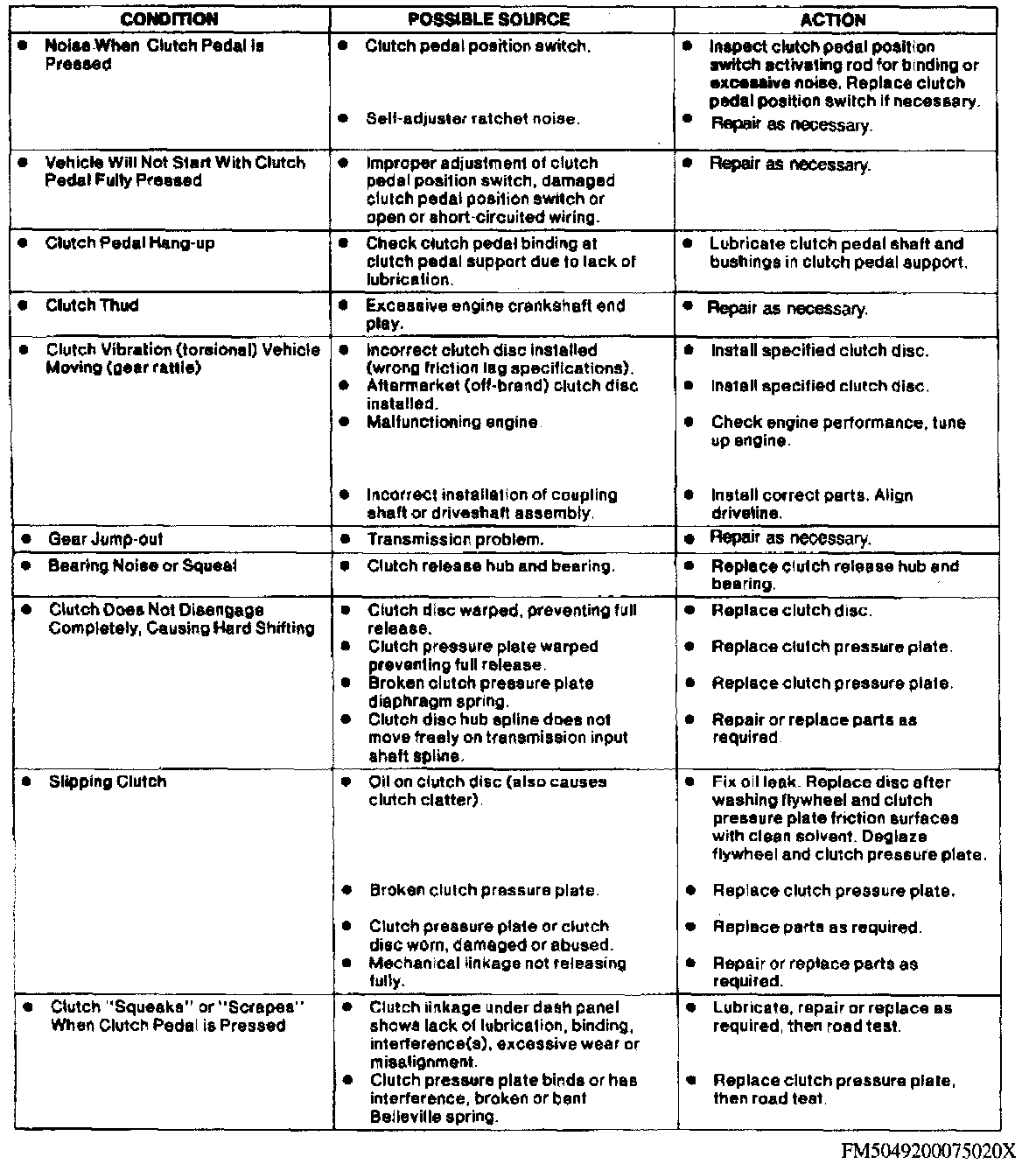

Cable Operated Clutch Chart (Part 1 Of 2):

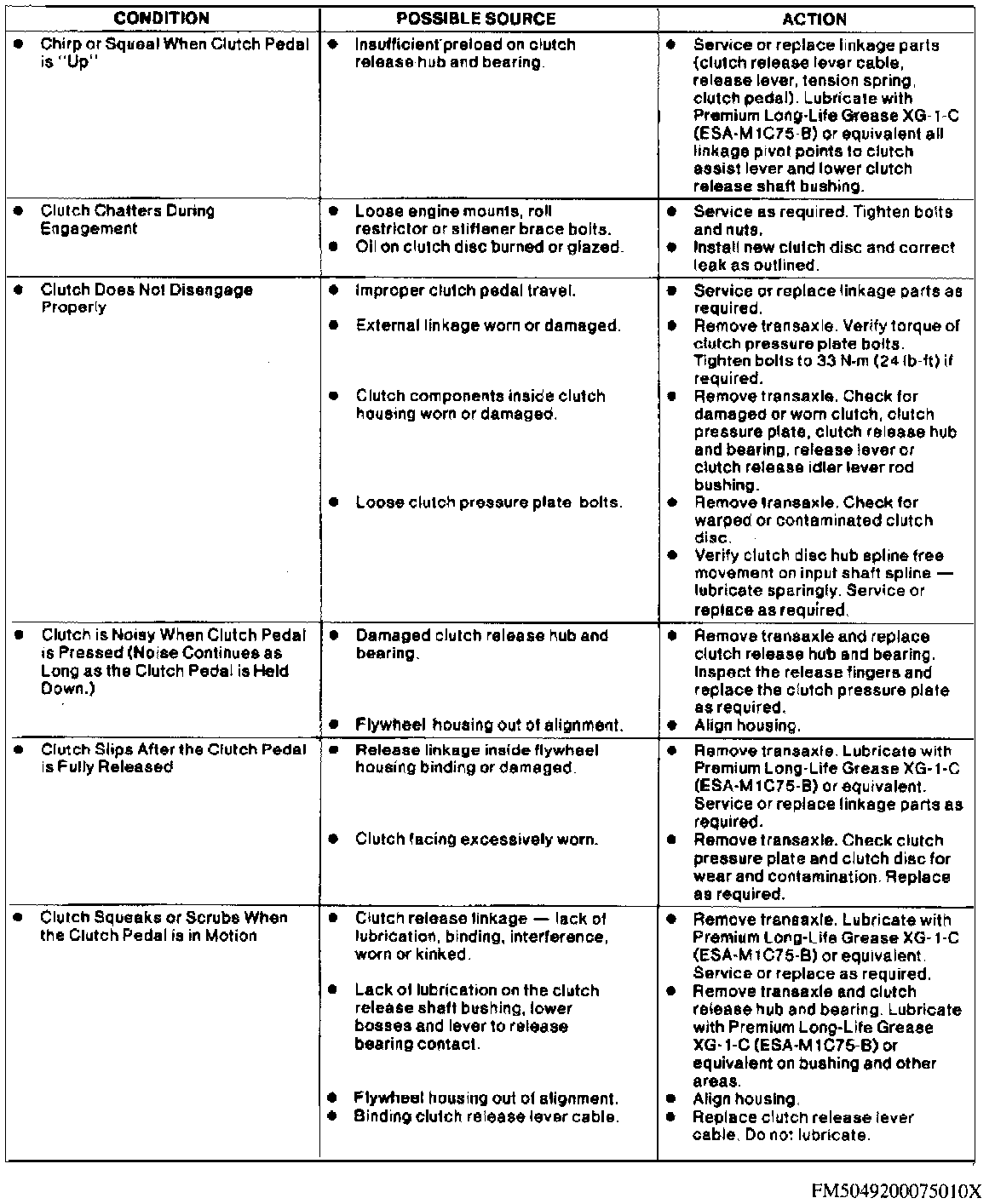

Cable Operated Clutch Chart (Part 2 Of 2):
